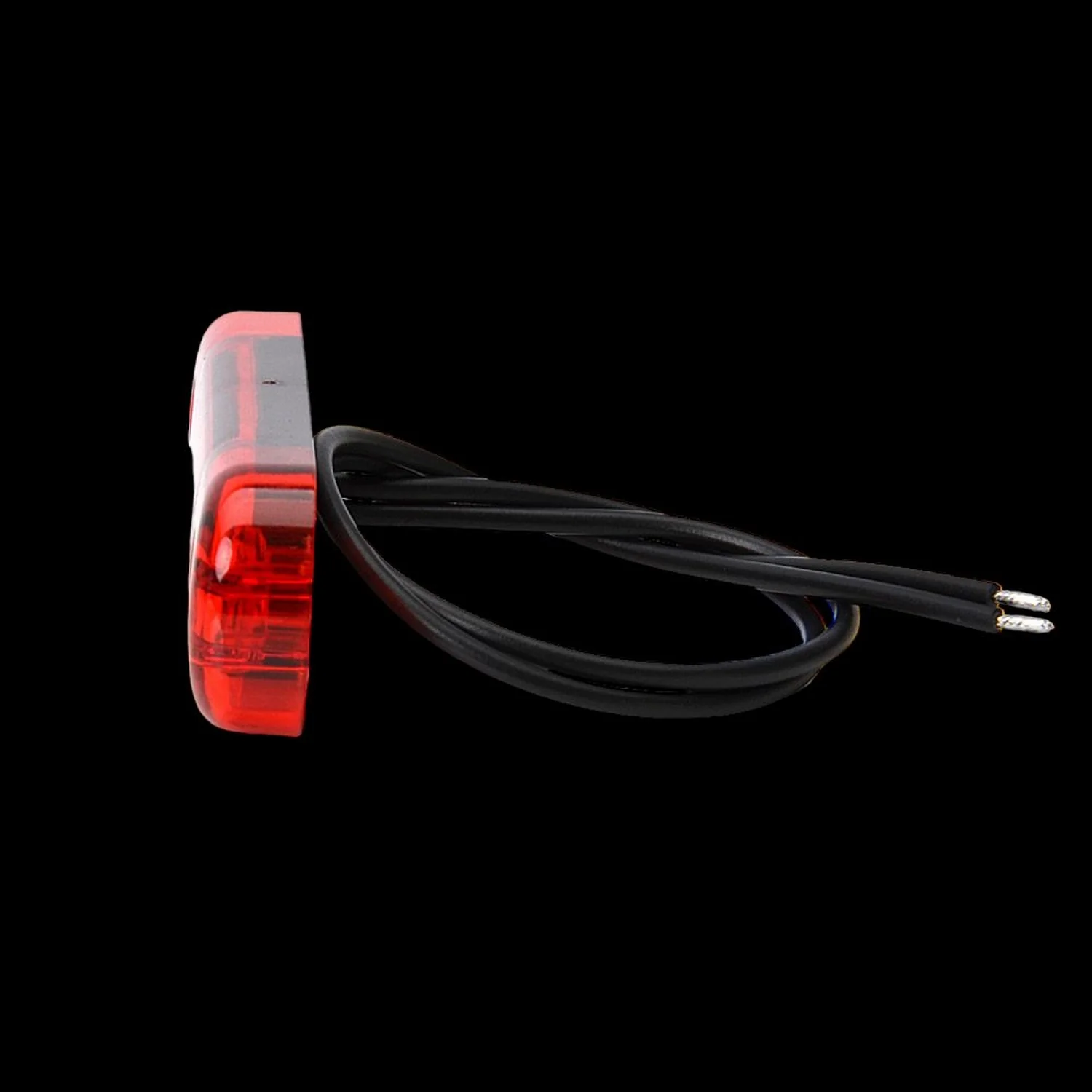

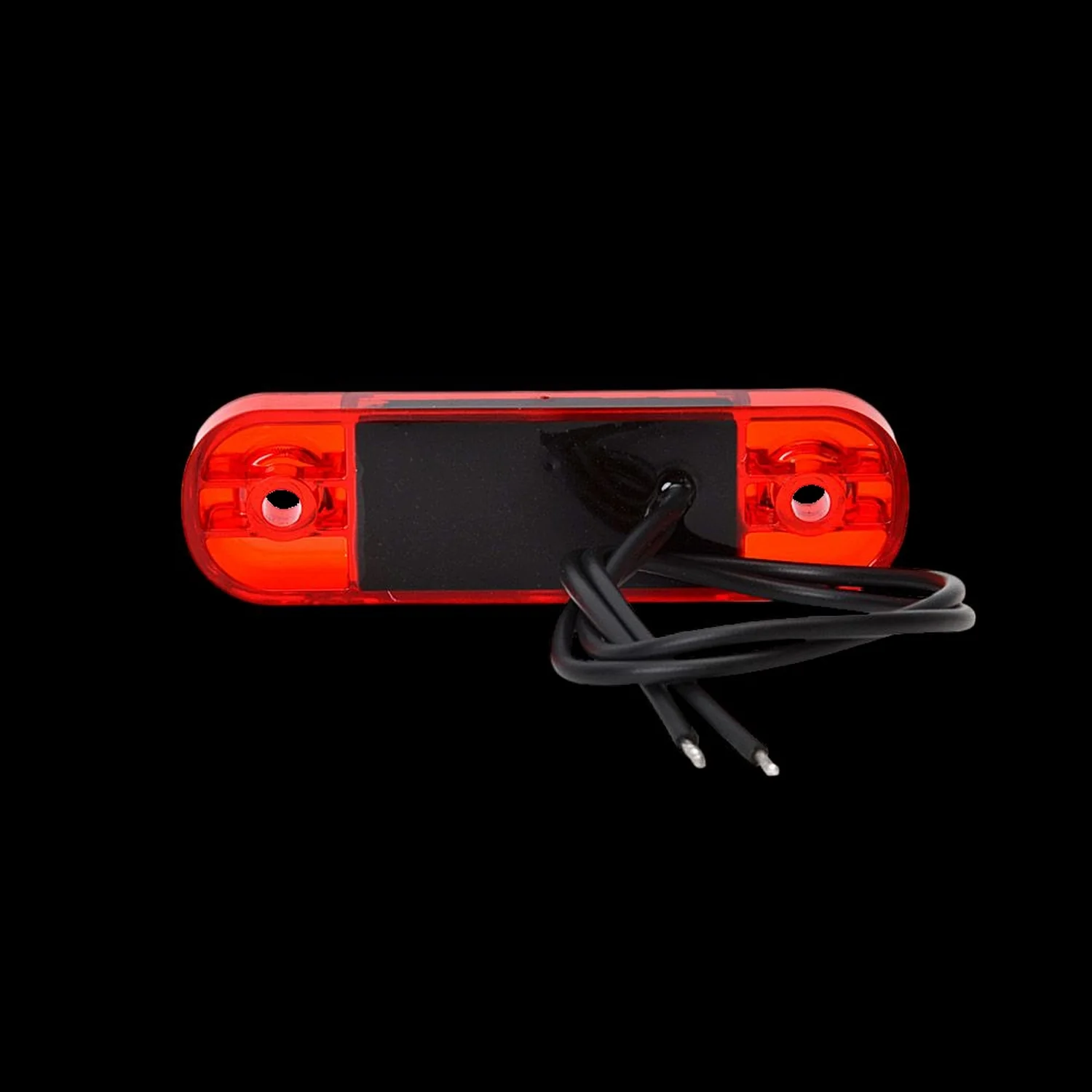

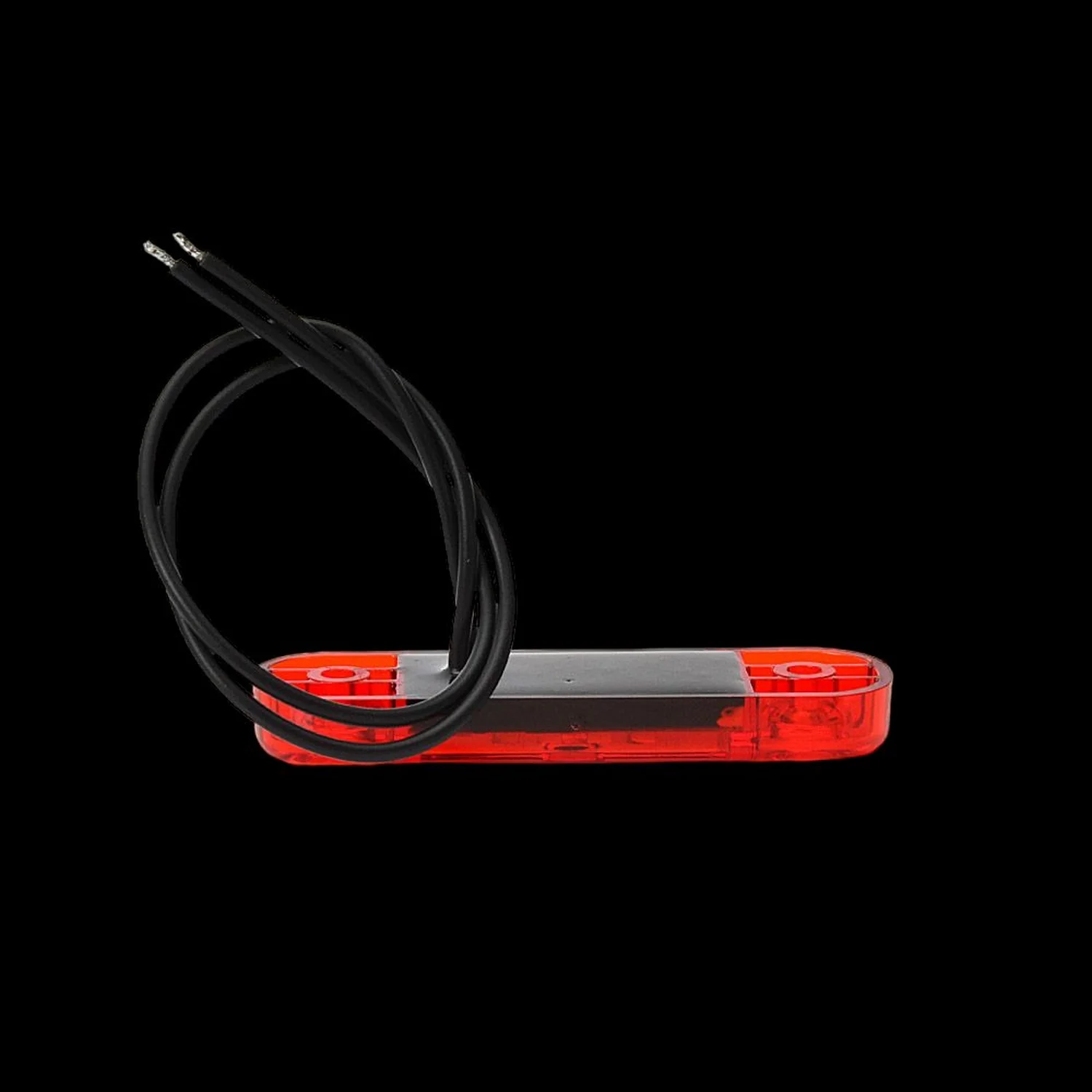

Slim Side Marker Red (3")

Description

E-approved Slim LED side marker with 3 diodes and red glass. The design facilitates the installation process and makes the lamp very user-friendly.

Specifications

VOLTAGE	12-24V DC
LENS COLOUR	Red
HOUSING COLOUR	Red
IP-CLASS	IP66/IP68
POSITION LIGHT	No

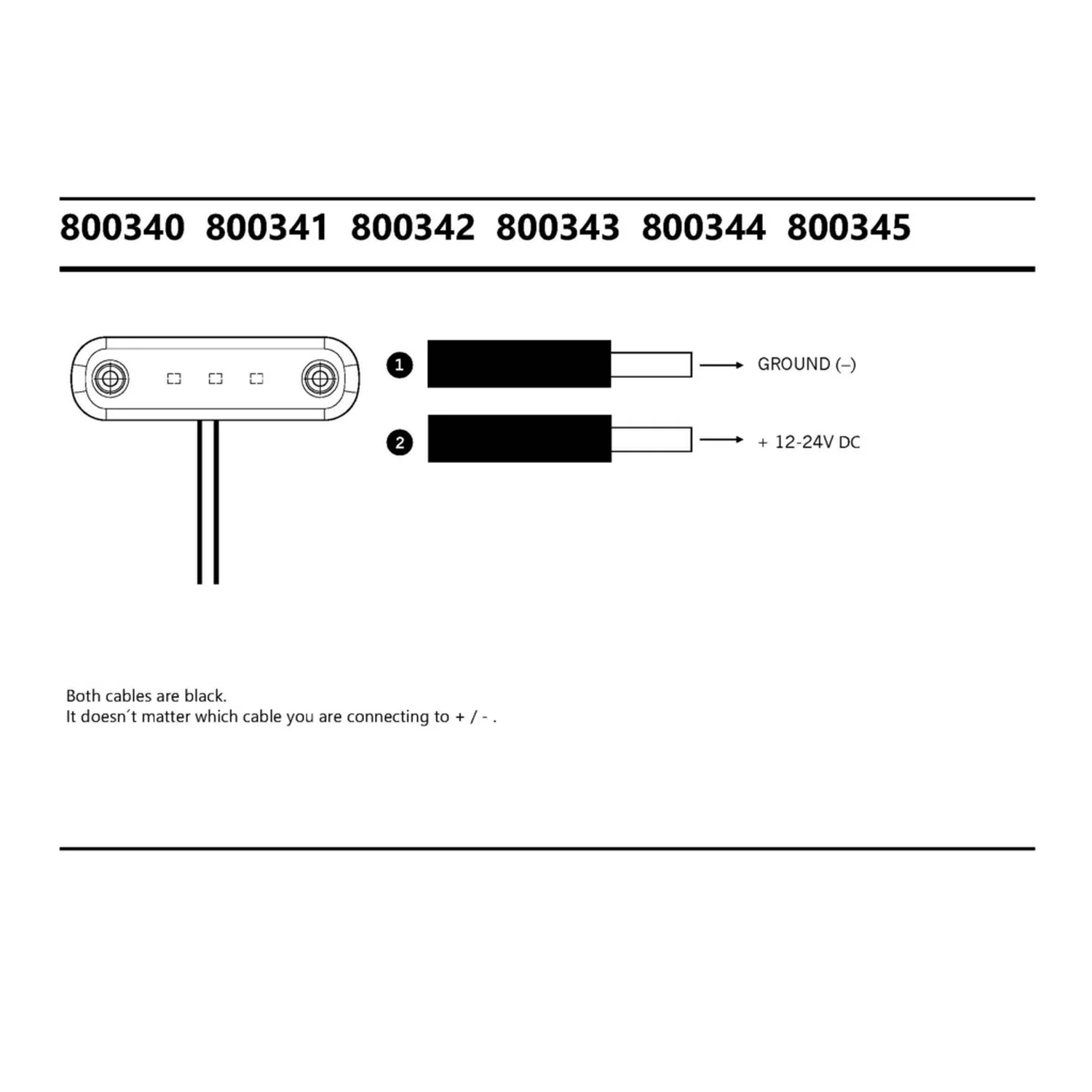

CONNECTION	Cable
MATERIAL HOUSING	Polycarbonate
MATERIAL LENS	Polycarbonate
LENGTH (mm)	83.8
CENTRE TO CENTRE SPACING (mm)	61
DEPTH (mm)	10.4
HEIGHT (mm)	24.2
OPERATING TEMPERATURE	-35°C. +45°C
E-APPROVED	ECE R7, R91
EMC-CERTIFICATE	ECE R10
