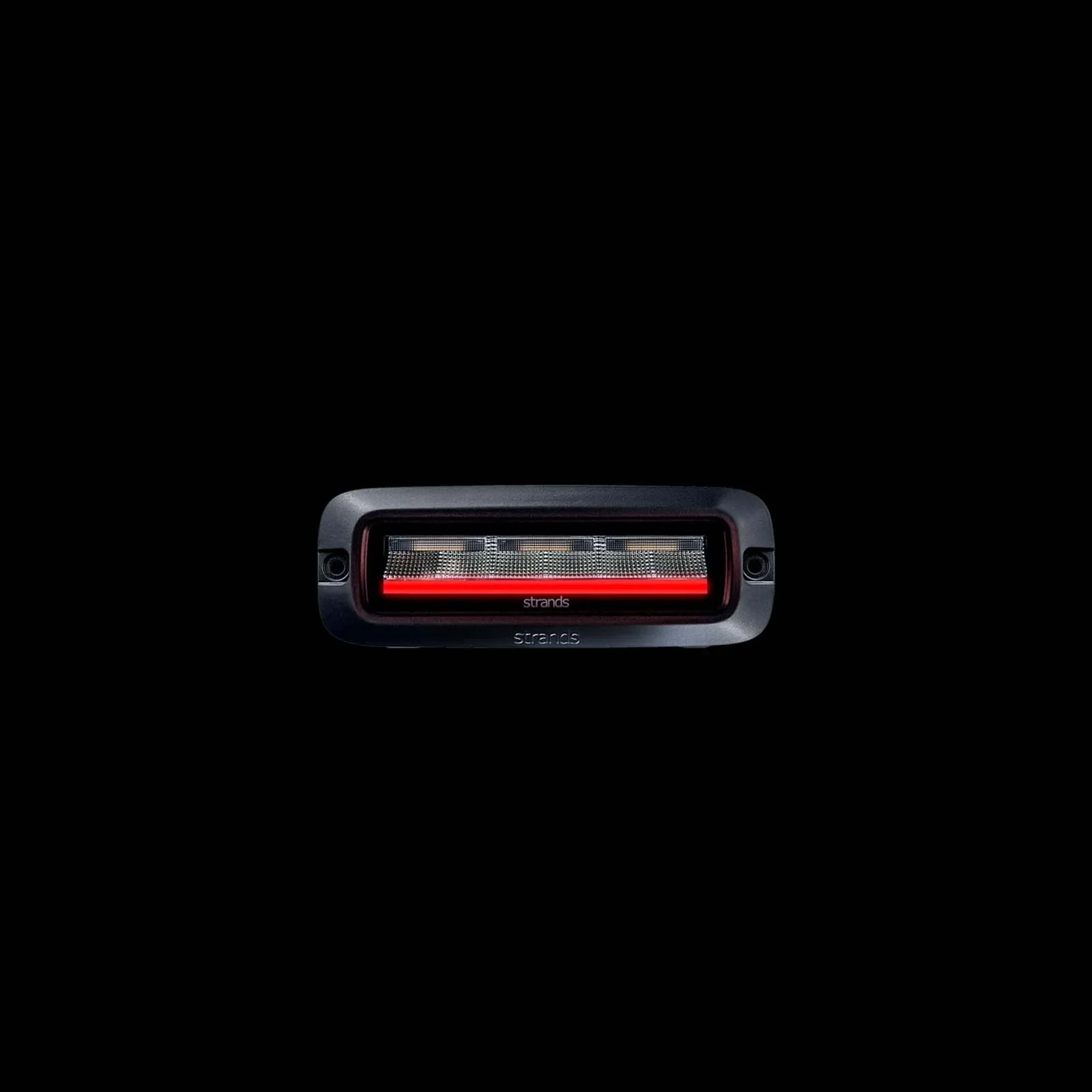

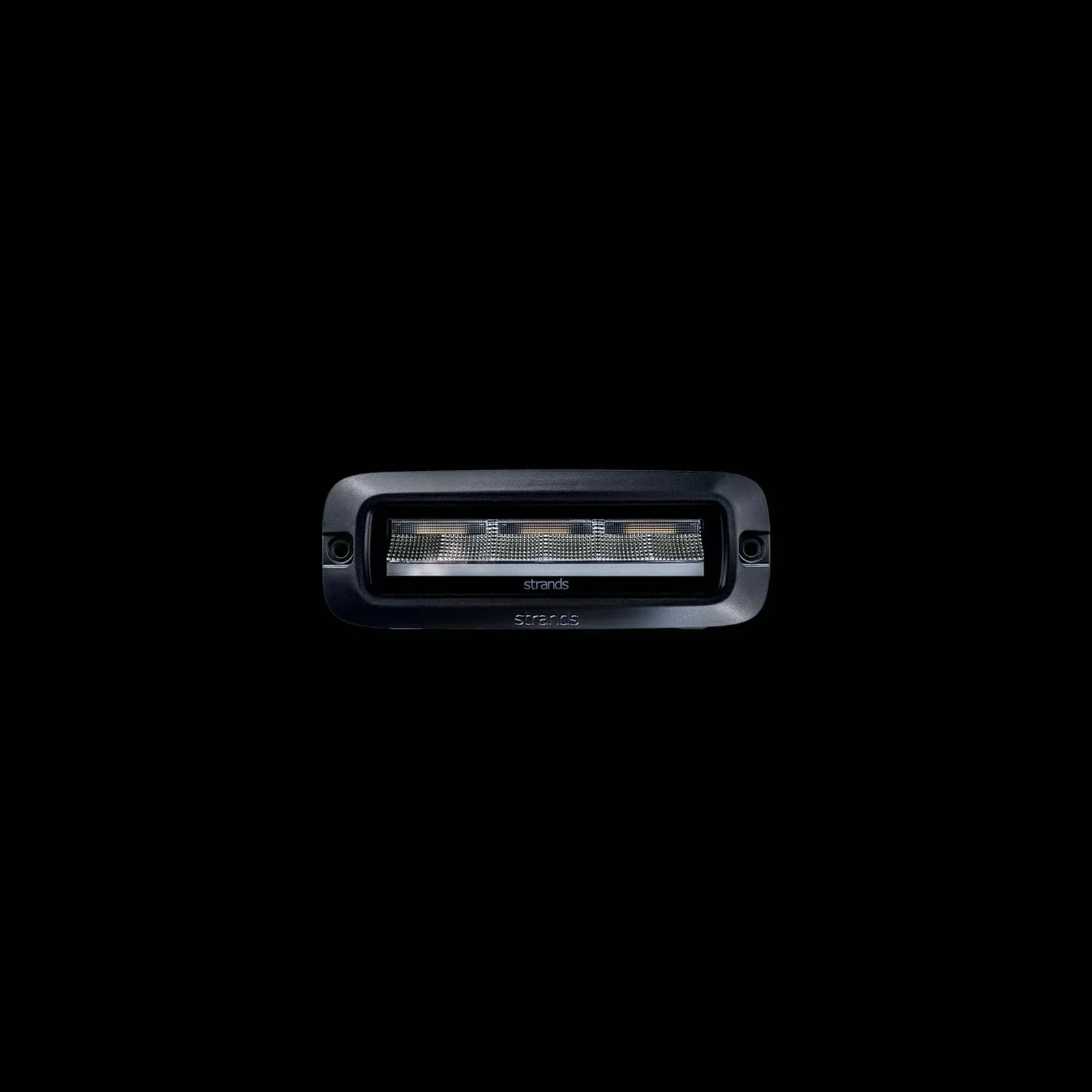

Siberia Multiple Options Tail Light (7")

One light. Multiple options. Meet Siberia MO, a brand-new tail light in the Siberia family with four E-approved functions. Delivering the perfect lighting solution in one light with revolutionary mounting possibilities.

One version includes an indicator, brake light, reversing light, and E-approved red position light. The other version (part number 809225) includes the same functions, but replaces the indicator with a warning light. To achieve the perfect mix and unit, the Siberia MO can be combined with the Siberia Tail light (part number 809226).

Specifications

	with Indicator	with Strobe
PCS LED´S	Brake: 21 Reverse: 6 Tail light: 9 Indicator: 21	Brake: 21 Reverse: 6 Tail light: 9 Warning: 21
VOLTAGE	10-32V DC	10-32V DC
THEORETICAL EFFECT (W) 12V	Brake: 21W Reverse: 6W Tail light: 9W Indicator: 31.5W	Brake: 21W Reverse: 6W Tail light: 9W Warning: 31.5W
THEORETICAL EFFECT (W) 24V	Brake: 21W Reverse: 6W Tail light: 9W Indicator: 31.5W	Brake: 21W Reverse: 6W Tail light: 9W Warning: 31.5W
CONSUMPTION (W) 12V	Brake: 10.2W Reverse: 3.9W Tail light: 5.4W Indicator: 4.8W	Brake: 10.2W Reverse: 3.9W Tail light: 5.4W Warning: 9.5W
CONSUMPTION (W) 24V	Brake: 10.4W Reverse: 4.2W Tail light: 5.5W Indicator: 5.0W	Brake: 10.4W Reverse: 4.2W Tail light: 5.5W Warning: 9.7W
FUNCTIONS	Brake light, Reverse light, Tail light, Indicator	Brake light, Reverse light, Tail light, Warning light
THEORETICAL LUMEN	Reverse light: 546	Reverse light: 546
ACTUAL LUMEN	Reverse light: 322	Reverse light: 322
1 LUX @ (m)	Reverse light: 14	Reverse light: 14
KELVIN	6000	6000
IP-CLASS	67/69K	67/69K
COLOUR HOUSING	Black	Black
COLOUR LENS	Clear	Clear
COLOUR LED´S	Red/white/amber	Red/white/amber
BEAM PATTERN	Flood	Flood
CONNECTION	Cable	Cable
CABLE LENGTH (mm)	2500	2500

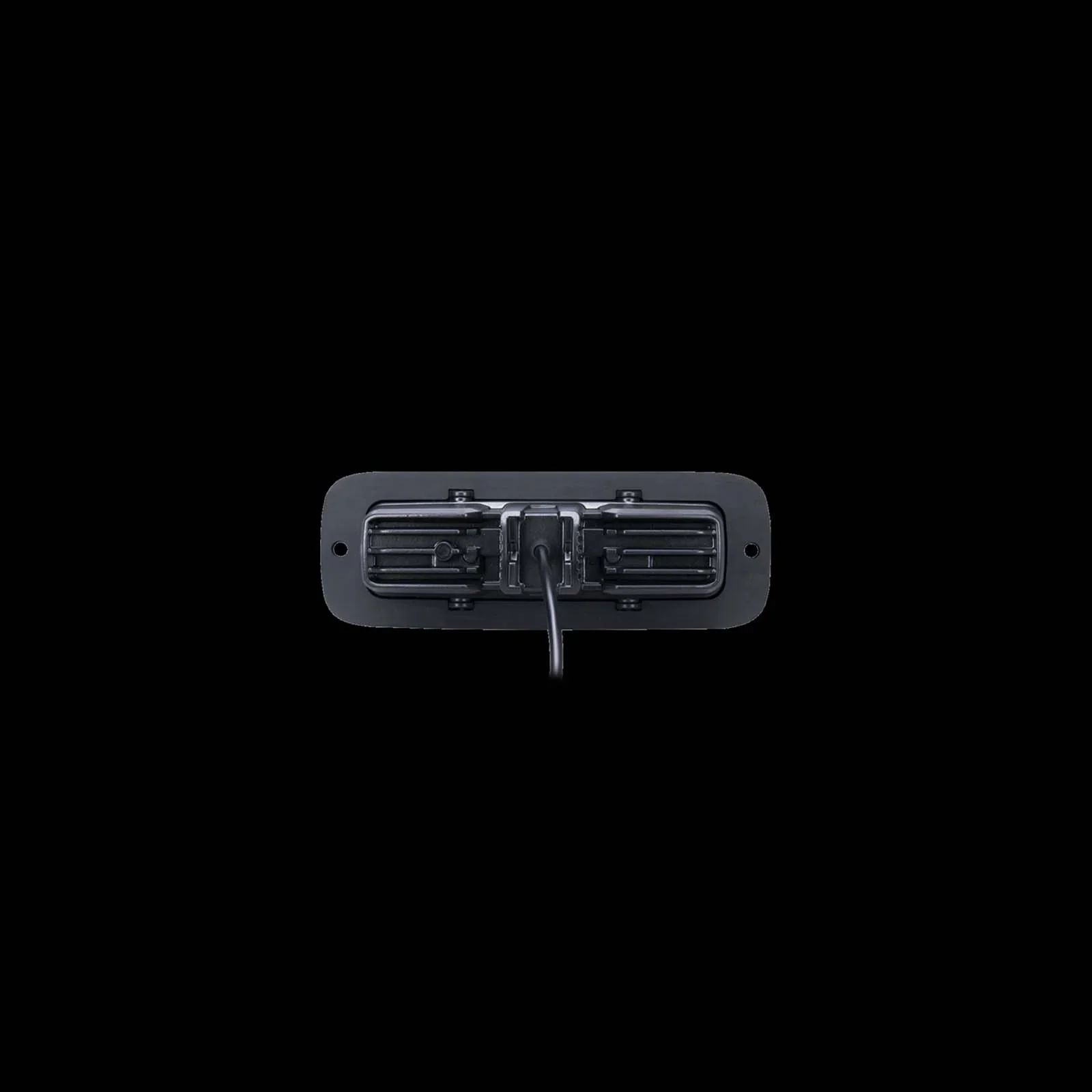

MATERIAL BRACKET FLUSH MOUNT:	Aluminum U bracket: Metal plate	Aluminum U bracket: Metal plate
MATERIAL HOUSING/CHASSIS	Aluminium	Aluminium
MATERIAL LENS	Polycarbonate	Polycarbonate
LENGTH (mm)	Flush mount: 214 U-bracket: 172	Flush mount: 214 U-bracket: 172
DEPTH (mm)	Flush mount: 71,5 U-bracket: 77	Flush mount: 71,5 U-bracket: 77
HEIGHT (mm)	Flush mount: 77mm / U-bracket 50mm	Flush mount: 77mm / U-bracket 50mm
HEIGHT INCLUDING BRACKET (MM)	U-bracket: 53,8	U-bracket: 53,8
Centre to Centre Spacing (mm)	Flush mount: 196	Flush mount: 196
OPERATING TEMPERATURE	-30°C – +65°C	-30°C – +65°C
ADR-APPROVED	No	No
E-APPROVED	Yes	Yes
ACCORDING TO REGULATION	ECE R148 EMC ECE R10	ECE R148, R65 EMC ECE R10
