Siberia Bush Ranger (7"-9")

The original 809189 light is no longer in production and has been upgraded to 270985A

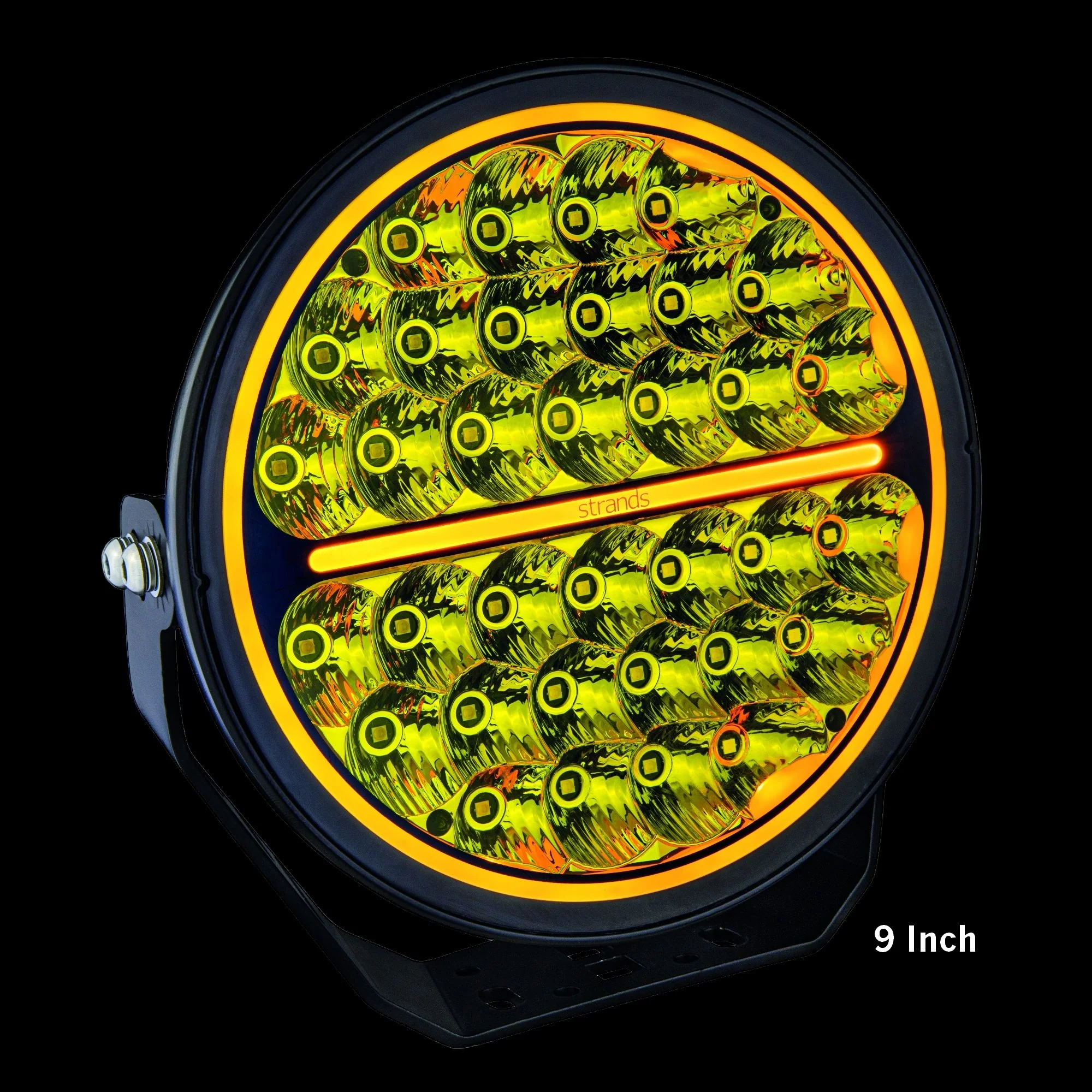

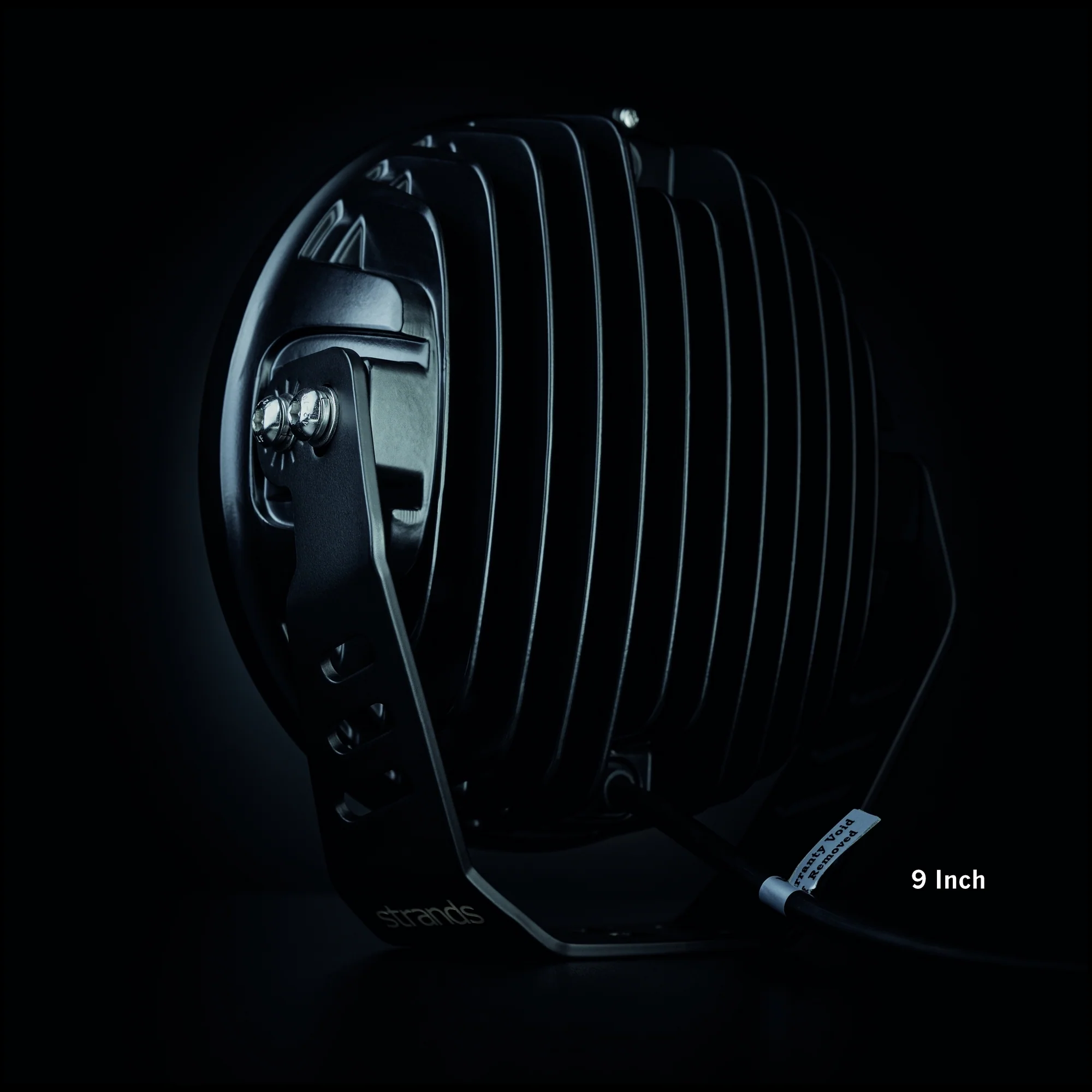

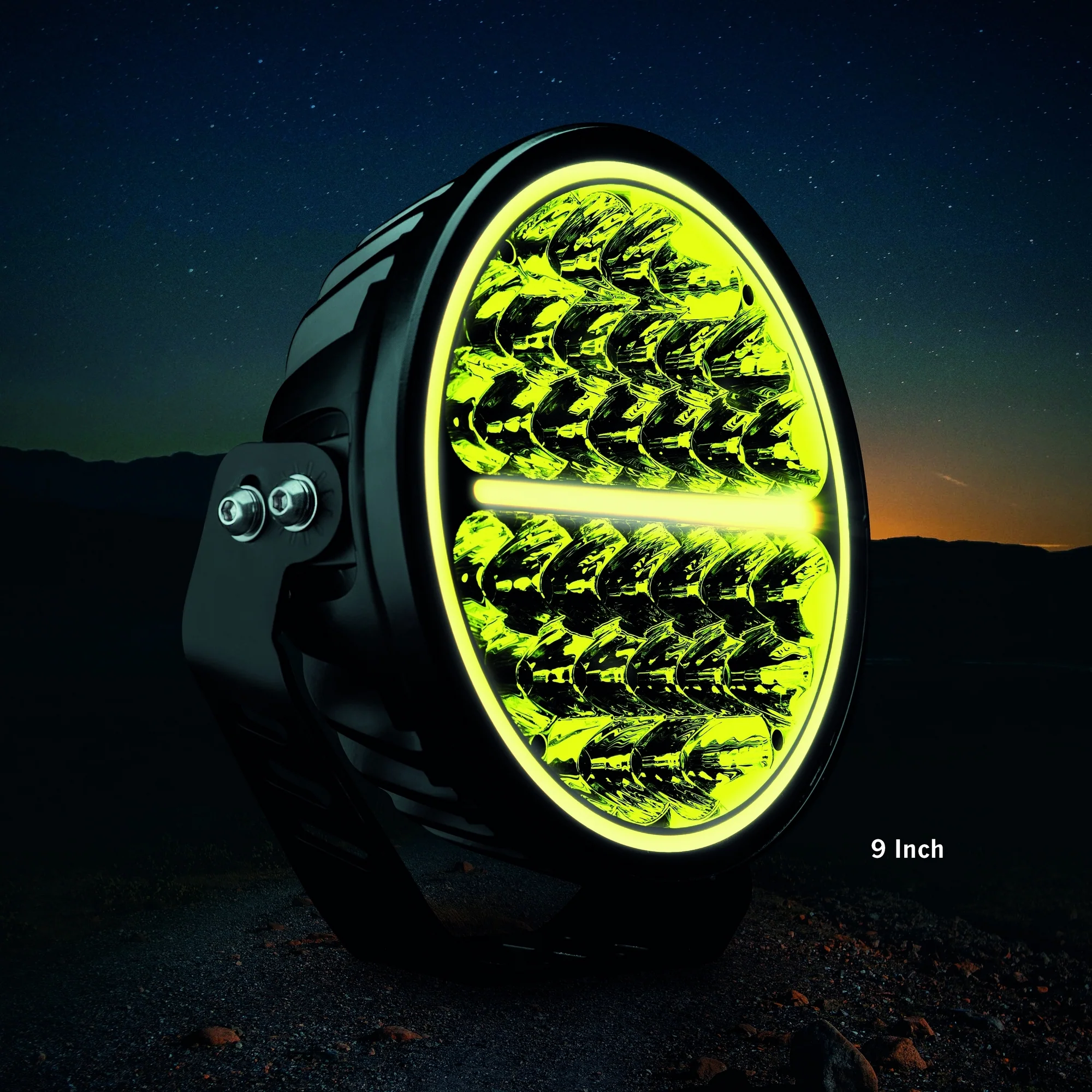

The Siberia Series Bush Ranger continues the tradition of innovation that evolved with our LED light bars.  The 7” and 9” round lights incorporate 2 separate lighting functions – a driving light and a position light – both beautifully positioned in the housing.

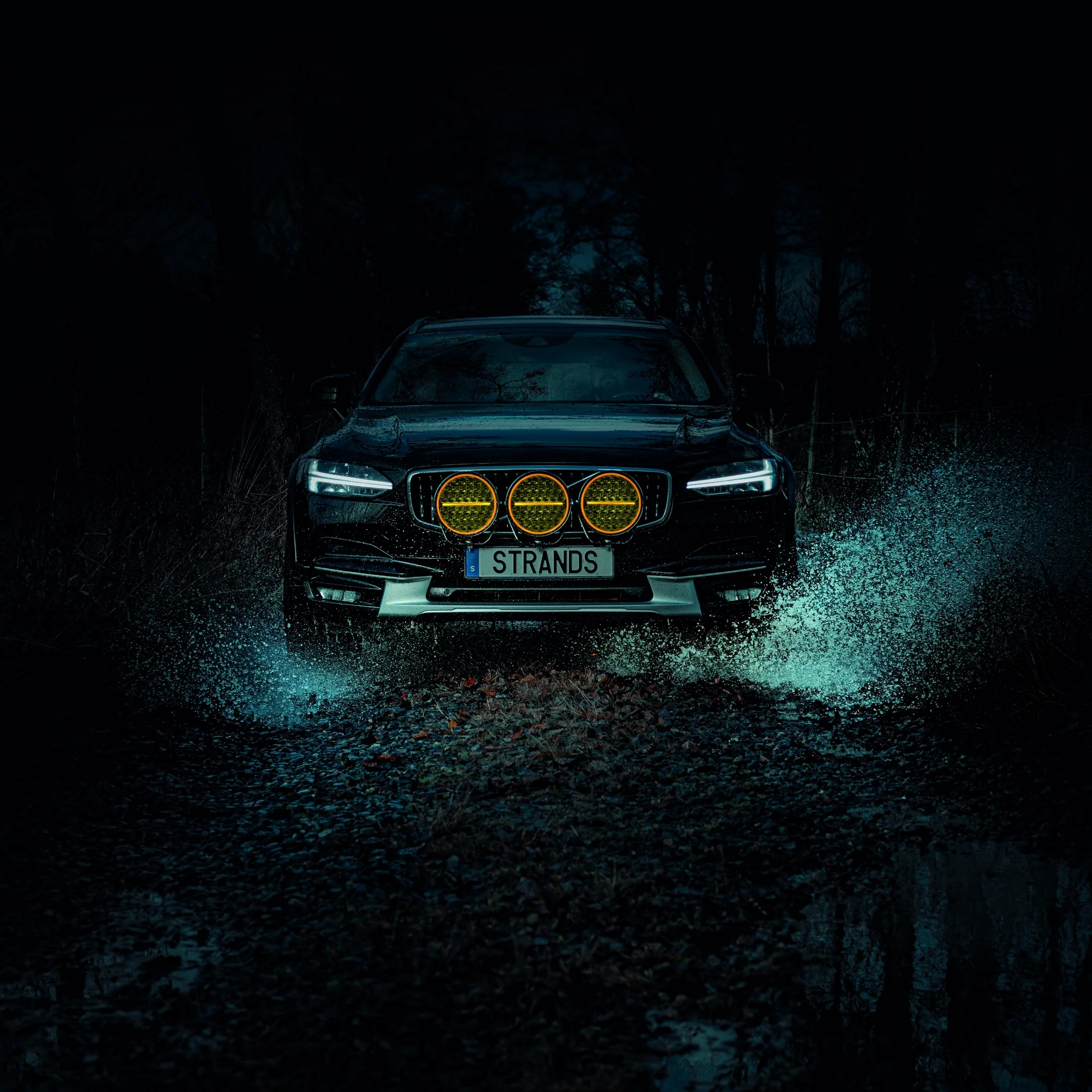

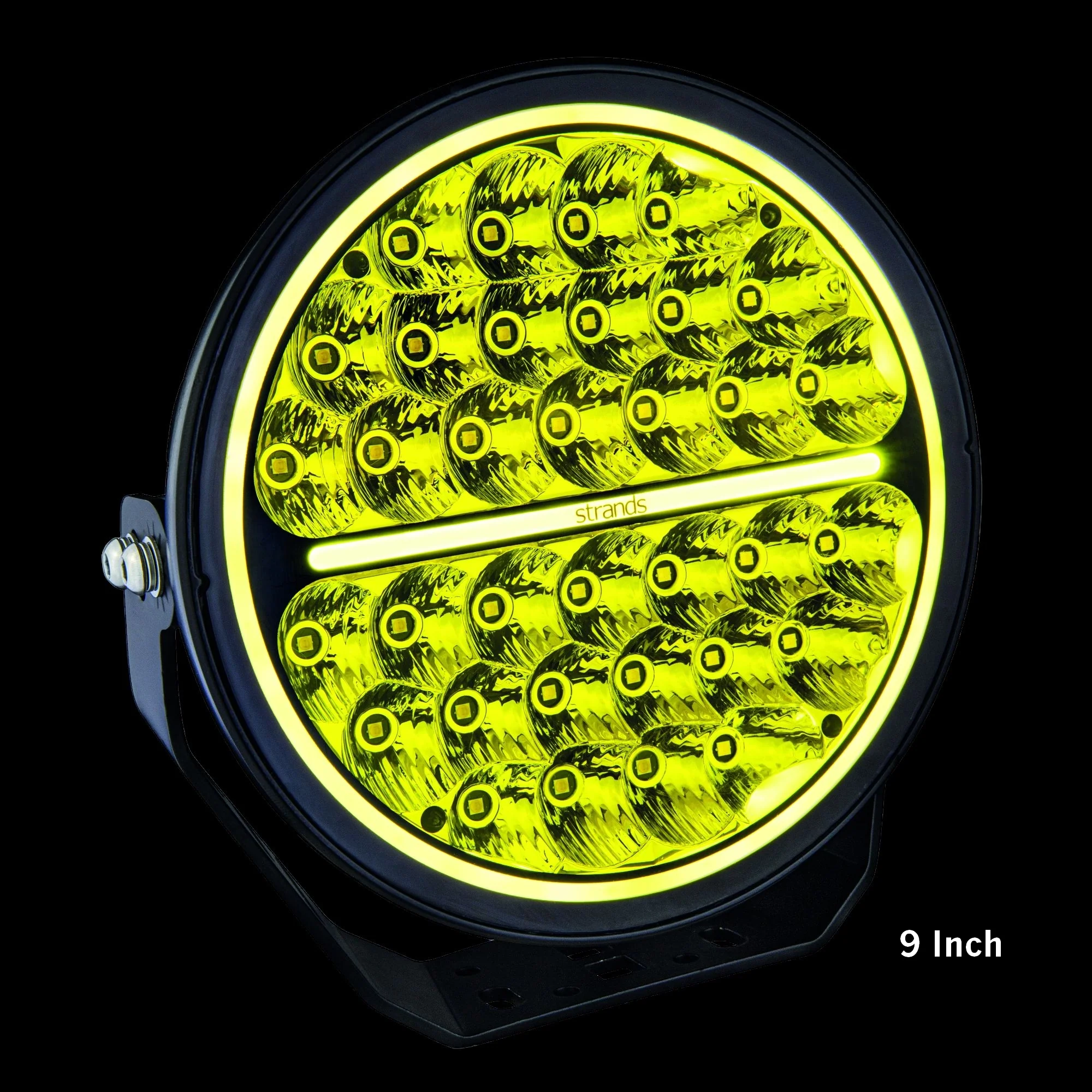

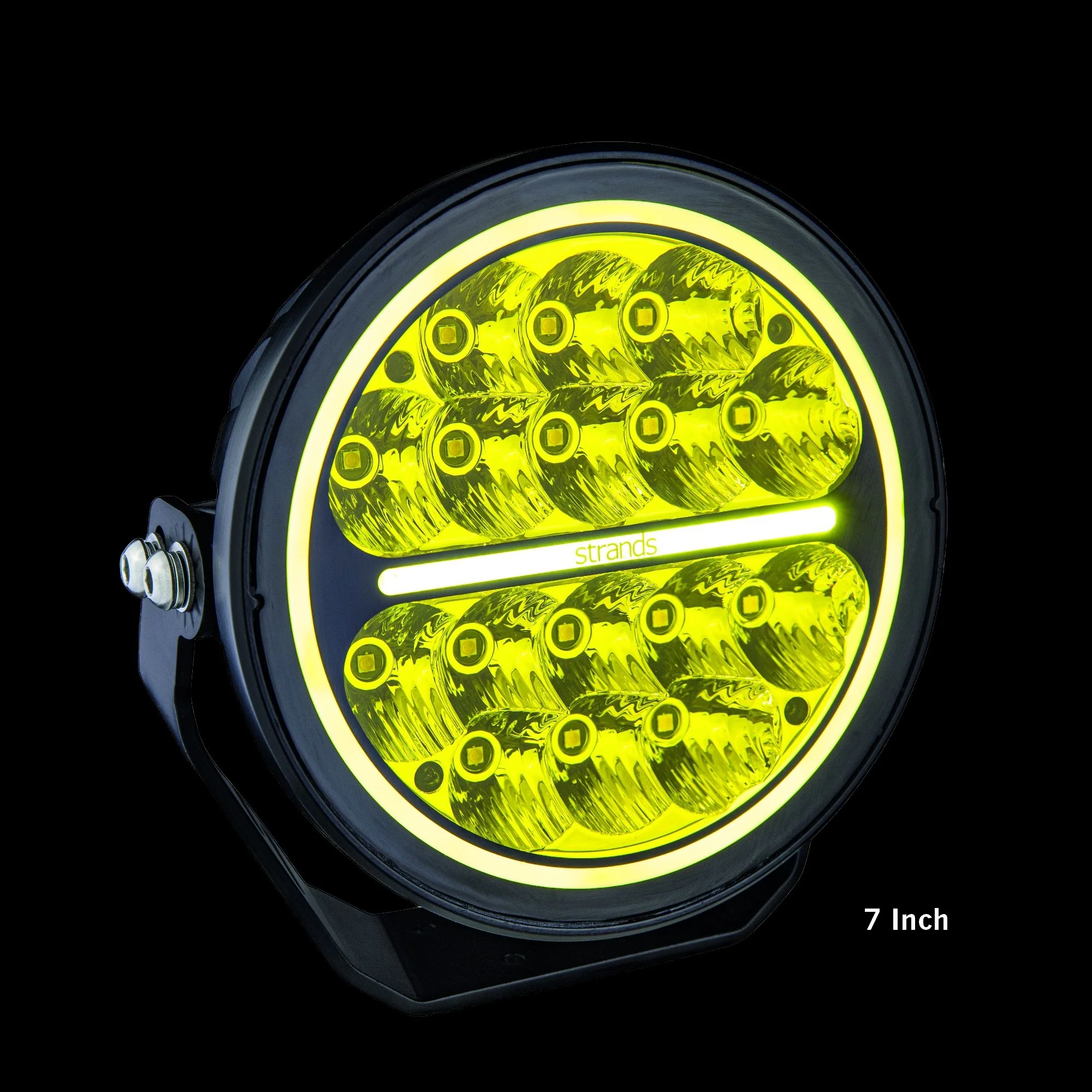

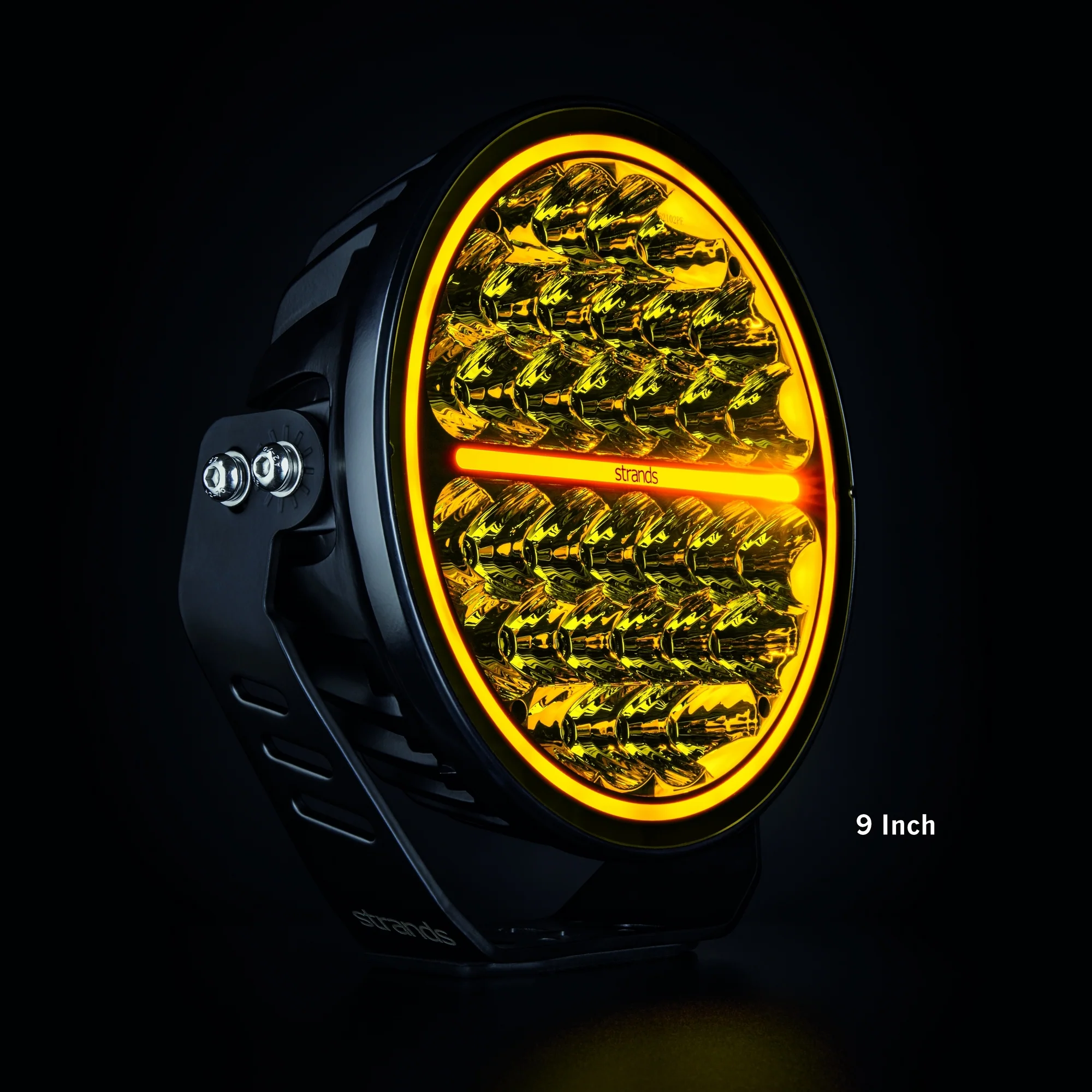

The 7” & 9” Bush Ranger models have a yellow lens with combo driving light pattern to produce an exceptionally effective light output in fog, snow, sleet or heavy rain.  The bright yellow beam cuts through inclement weather and reduces headlight glare.  The combination pattern delivers both long range and side-of-the-road illumination, allowing you to see objects sooner, improving road/trail safety.  The second feature is a dual colour position light, which illuminates with your choice of output – a cool white or rich amber colour.  This feature gives you the option of linking to daytime running lights, flashers or other functions and customizes the appearance of your vehicle.

Included in the package are heavy duty brackets and stainless hardware to ensure ease of installation.

This light is sold individually and does not include a harness (whip included)



Wiring Harnesses:

For 1 Light

For 2 Lights

For 3 Lights

Specifications

	7 Inch	9 Inch
VOLTAGE	9-32V DC	9-32V DC
CONSUMPTION (w) 12V	70	145.3
CONSUMPTION (w) 24V	70.1	144.6
THEORETICAL LUMEN	9600	20400
ACTUAL LUMEN	3584	11515
1 LUX @ (m)	346	387
IP-CLASS	IP67/IP69K	IP67/IP69K

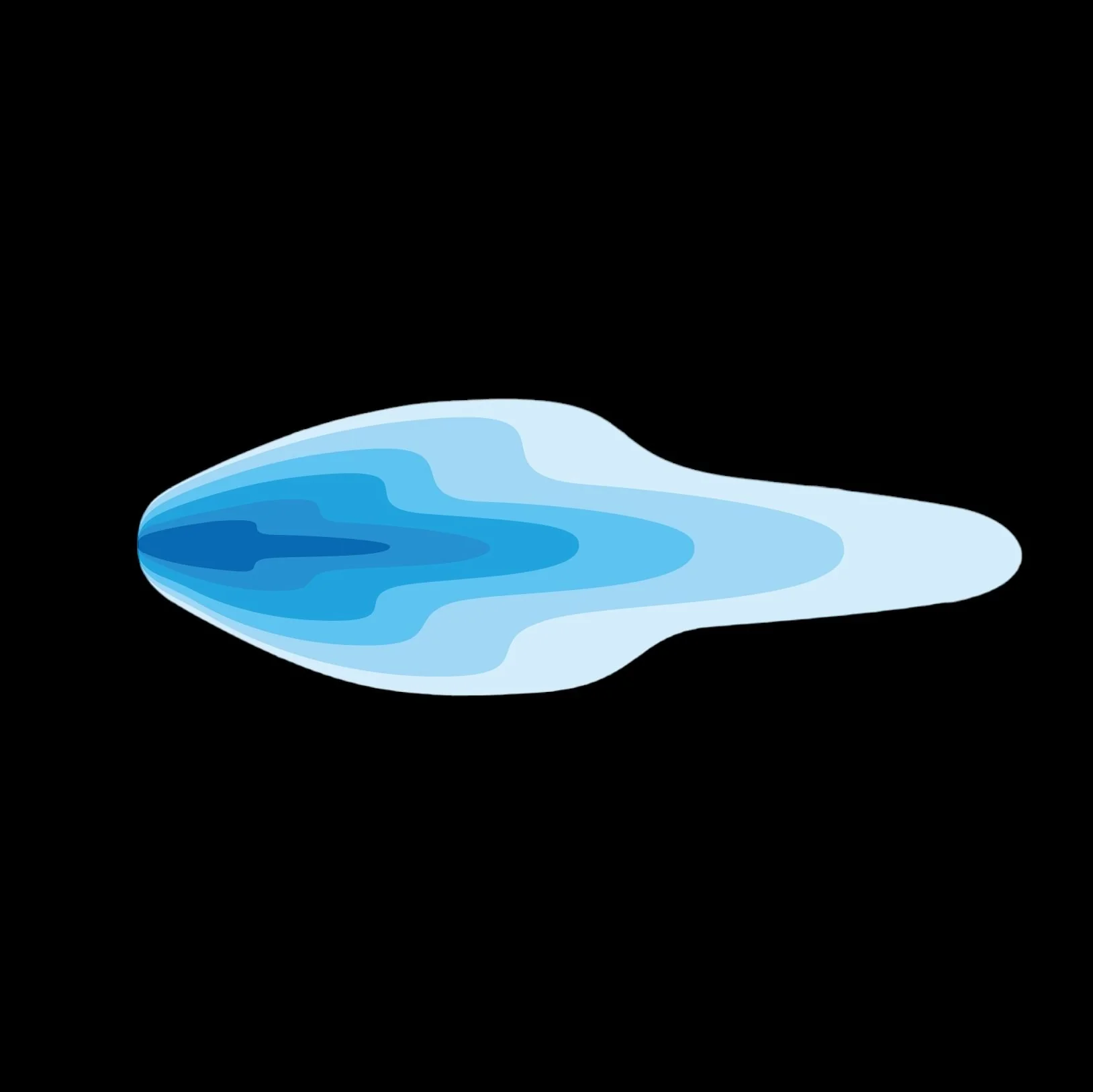

BEAM PATTERN	Combo	Combo
POSITION LIGHT	White and amber	White and amber
CONNECTION	DT-4	DT-4
CABLE LENGTH (mm)	500mm	500mm
MATERIAL HOUSING	Aluminium	Aluminium
MATERIAL LENS	Polycarbonate	Polycarbonate
DIAMETER (mm)	178	228,6
DEPTH (mm)	78,2	86,7
HEIGHT INCLUDING BRACKET (mm)	194,7	249,3
OPERATING TEMPERATURE	-30°C - +65°C	-30°C - +65°C
E-APPROVED	No	No
EMC-CERTIFICATE	ECE R10	ECE R10
