SIBERIA XP 9″
With its 3080/15030 incredible actual lumens, the Siberia XP 9” will light up the darkest night and most challenging roads. This updated driving light has a long-distance beam pattern with E-mode and Xperience-mode. This results in a range of 330/711 meters, ensuring very high forward visibility. Choose between two lens covers for a perfectly customized output: dark and yellow. The XP 9” also features a new yellow and white position light and Hello function. Its durable materials and new powder coating make it a long-lived addition to any vehicle, with an IP rating of IP68/IP69K. Enjoy an effortless installation thanks to the DT-4 connector and 150 mm cable, saving you the hassle of connecting cables. It is E-approved ECE R149(R112), R148(R7), and EMC certified ECE R10.
To operate the Hello function: simply flash the light twice in quick succession, and the position lights will activate a dynamic signal. See video here.
This light is sold individually and does not include a harness (whip included)
Wiring Harnesses:
For 1 Light
For 2 Lights
For 3 Lights
Single Covers (9"only at this time)
Dark Cover For 9" Lights only
Yellow Cover For 9" Lights only
Specifications
-
-
-
- Unit: PCS
- Voltage (V DC): 10-40
- Consumption (W): E-mode: 31W / Xperience mode: 144W
- Consumption specific function (W): White position light: 5,4W Yellow position light: 5,4W
- Functions: High beam, white and yellow position light, separate hello function for position light
- Theoretical lumen: 20000
- Actual lumen: E-mode: 3080lm / Xperience mode: 15030lm

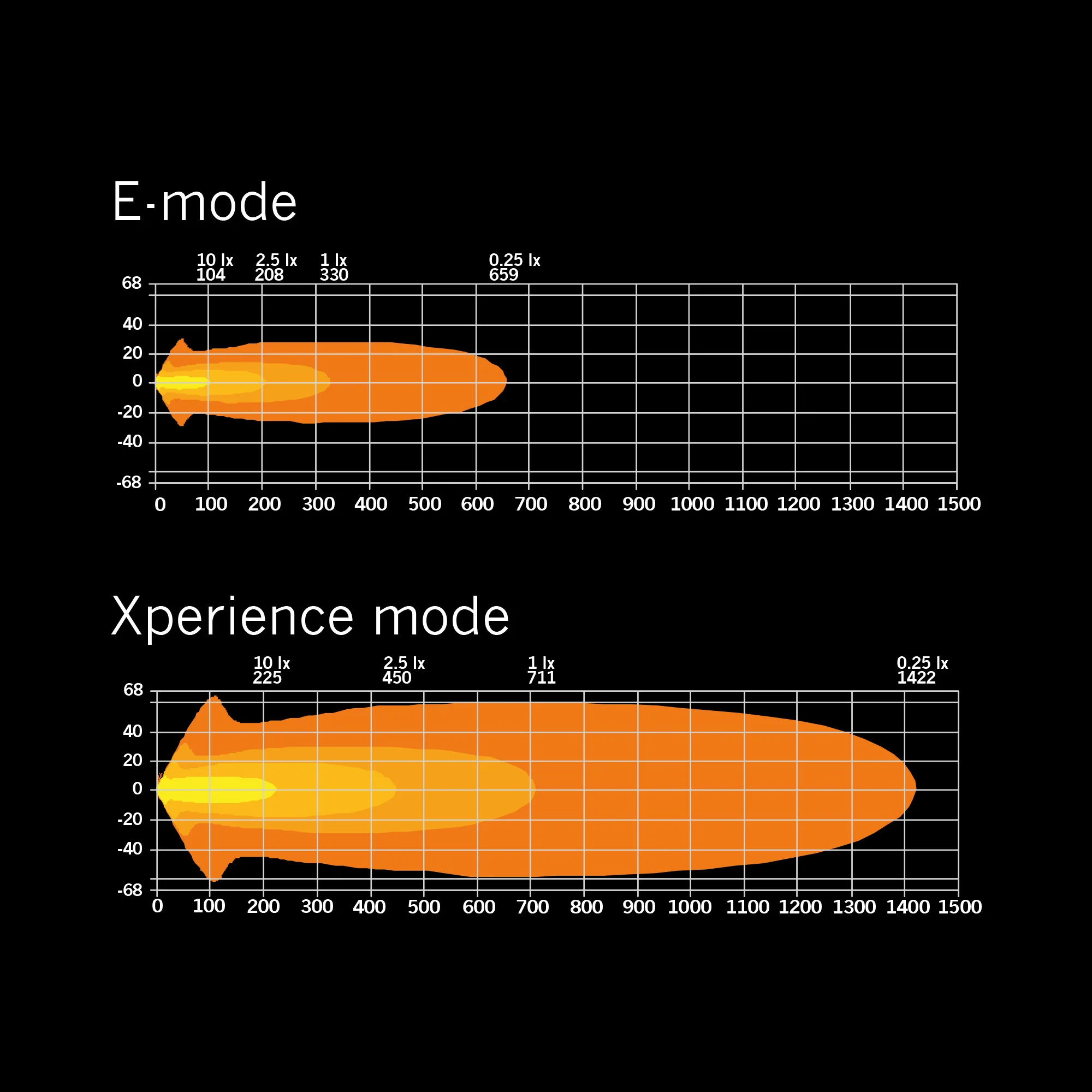

- 1 LUX @ m: E-mode: 330m / Xperience mode: 711m
- Color temperature (kelvin): 5700
- Beam pattern Long-distance beam
- Beam angle (Width): 14,6°
- Position light: White and yellow
- Connection: DT-4PIN
- Cable length (mm): 150
- Color housing: Black
- Color lens: Clear
- Color LED´s: White, Yellow
- Material bracket: Stainless steel
- Material housing: Aluminium
- Material lens: Polycarbonate

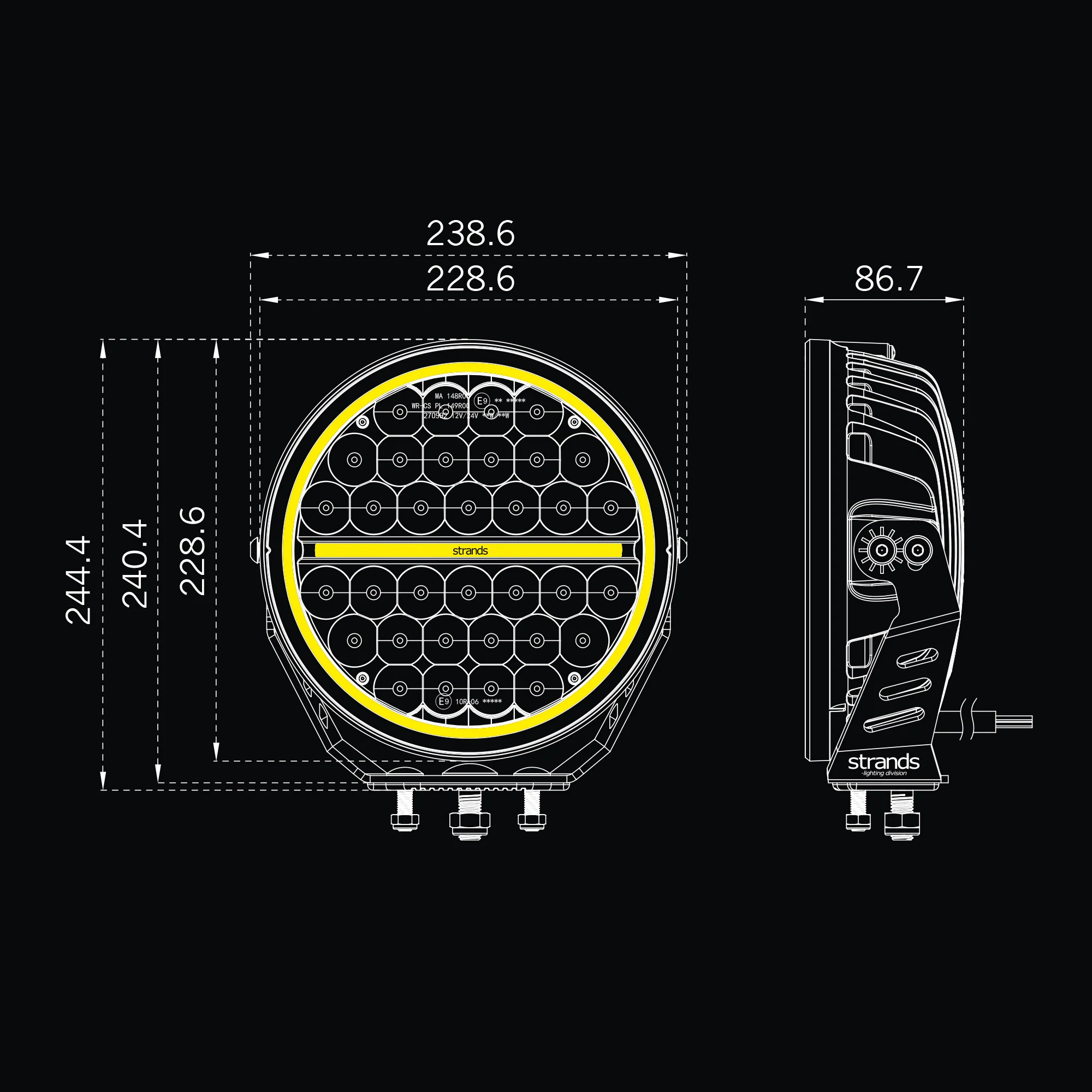

- Length (mm): 228,6
- Depth (mm): 86,7
- Height (mm): 228,6
- Height including bracket (mm): 244,4
- Diameter (mm): 228,6
- IP-class: 68/69K
- Operating temperature: -30 - +65
- E-approved: Yes
- According to regulation: R148(R7),R149(R112)
- Reference number: 20
- EMC: R10
-
-
Manual
Original: $439.00
-70%$439.00
$131.70
Description
With its 3080/15030 incredible actual lumens, the Siberia XP 9” will light up the darkest night and most challenging roads. This updated driving light has a long-distance beam pattern with E-mode and Xperience-mode. This results in a range of 330/711 meters, ensuring very high forward visibility. Choose between two lens covers for a perfectly customized output: dark and yellow. The XP 9” also features a new yellow and white position light and Hello function. Its durable materials and new powder coating make it a long-lived addition to any vehicle, with an IP rating of IP68/IP69K. Enjoy an effortless installation thanks to the DT-4 connector and 150 mm cable, saving you the hassle of connecting cables. It is E-approved ECE R149(R112), R148(R7), and EMC certified ECE R10.
To operate the Hello function: simply flash the light twice in quick succession, and the position lights will activate a dynamic signal. See video here.
This light is sold individually and does not include a harness (whip included)
Wiring Harnesses:
For 1 Light
For 2 Lights
For 3 Lights
Single Covers (9"only at this time)
Dark Cover For 9" Lights only
Yellow Cover For 9" Lights only
Specifications
-
-
-
- Unit: PCS
- Voltage (V DC): 10-40
- Consumption (W): E-mode: 31W / Xperience mode: 144W
- Consumption specific function (W): White position light: 5,4W Yellow position light: 5,4W
- Functions: High beam, white and yellow position light, separate hello function for position light
- Theoretical lumen: 20000
- Actual lumen: E-mode: 3080lm / Xperience mode: 15030lm
- 1 LUX @ m: E-mode: 330m / Xperience mode: 711m
- Color temperature (kelvin): 5700
- Beam pattern Long-distance beam
- Beam angle (Width): 14,6°
- Position light: White and yellow
- Connection: DT-4PIN
- Cable length (mm): 150
- Color housing: Black
- Color lens: Clear
- Color LED´s: White, Yellow
- Material bracket: Stainless steel
- Material housing: Aluminium
- Material lens: Polycarbonate
- Length (mm): 228,6
- Depth (mm): 86,7
- Height (mm): 228,6
- Height including bracket (mm): 244,4
- Diameter (mm): 228,6
- IP-class: 68/69K
- Operating temperature: -30 - +65
- E-approved: Yes
- According to regulation: R148(R7),R149(R112)
- Reference number: 20
- EMC: R10
-
-
