NUUK D-LINE QB DRIVING LIGHT 3″

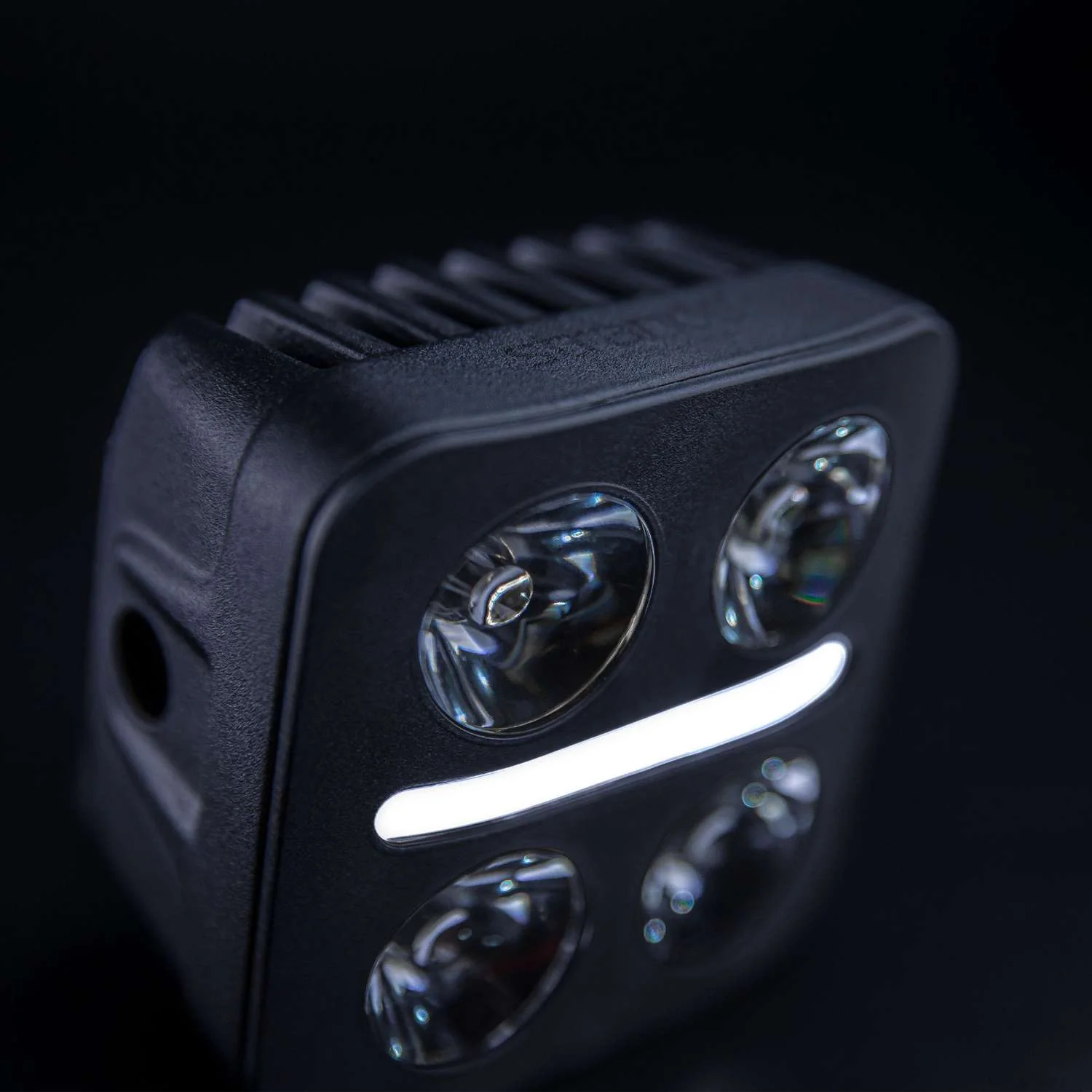

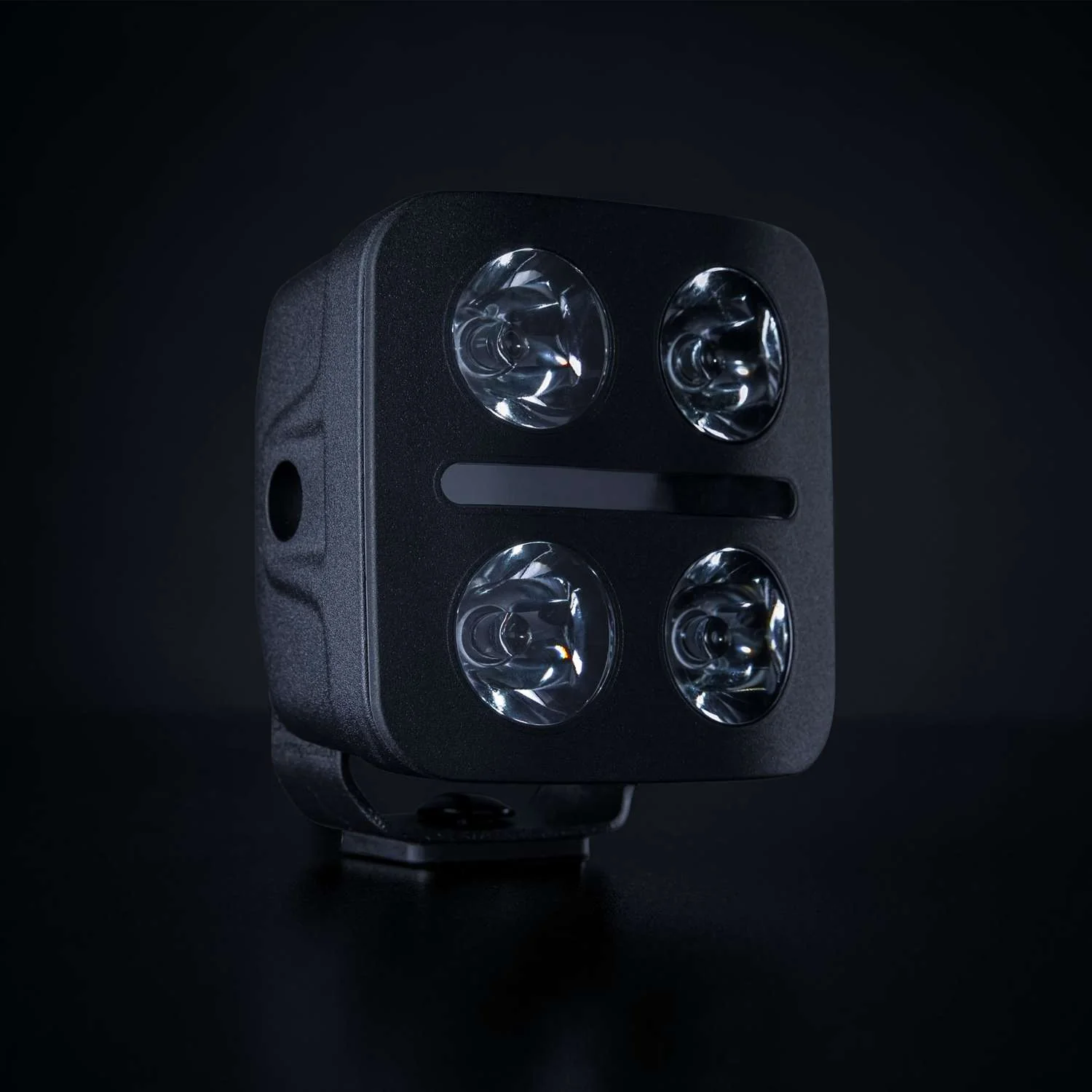

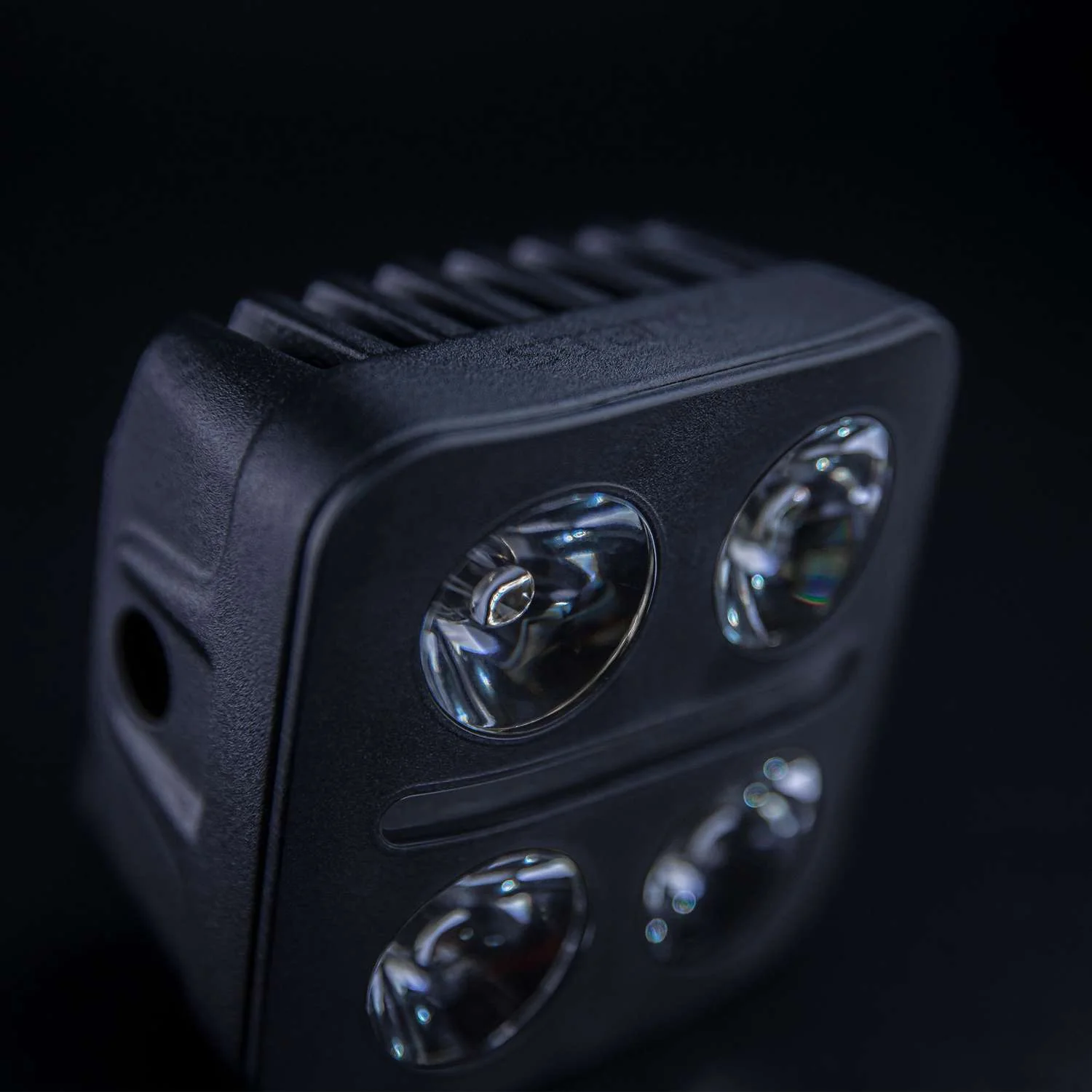

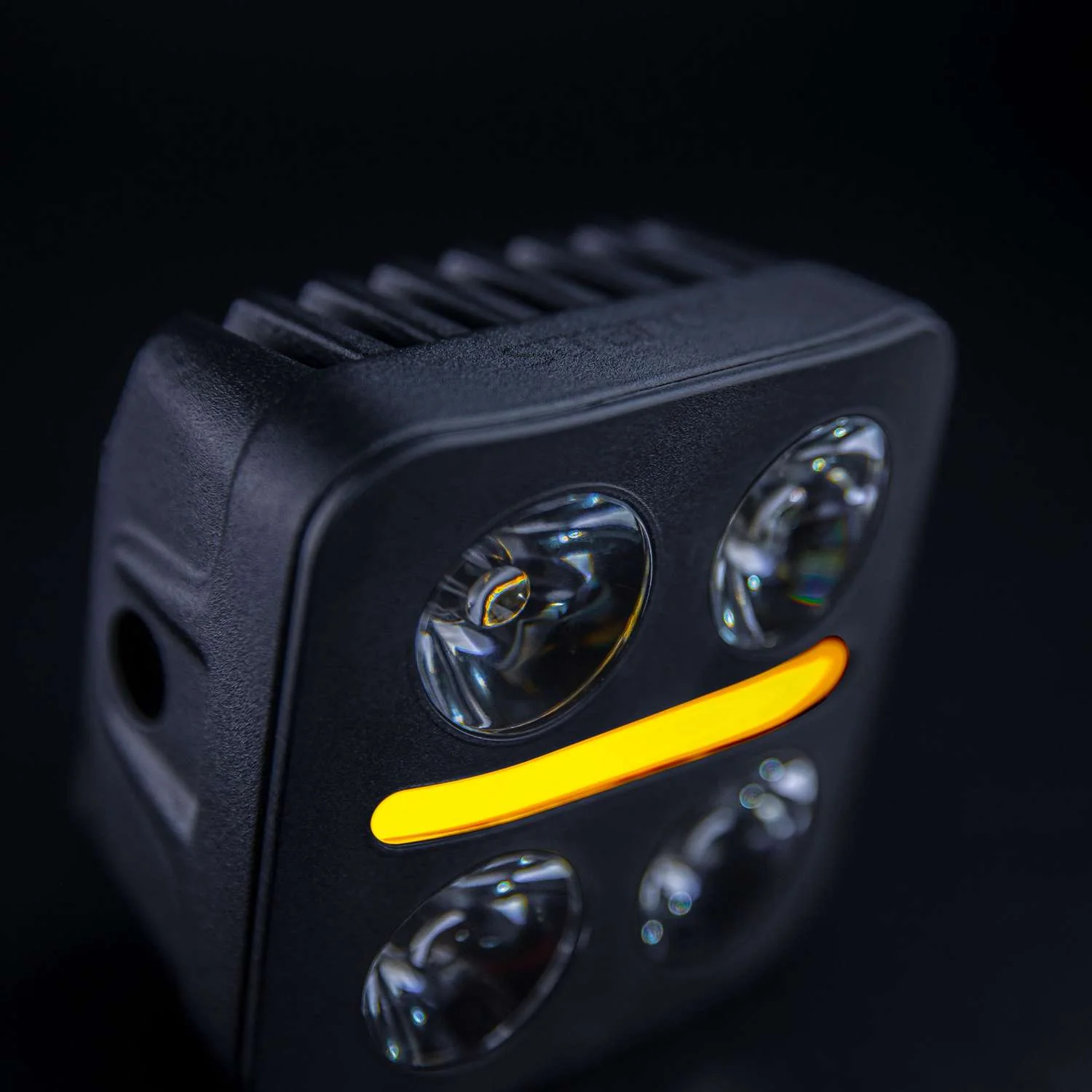

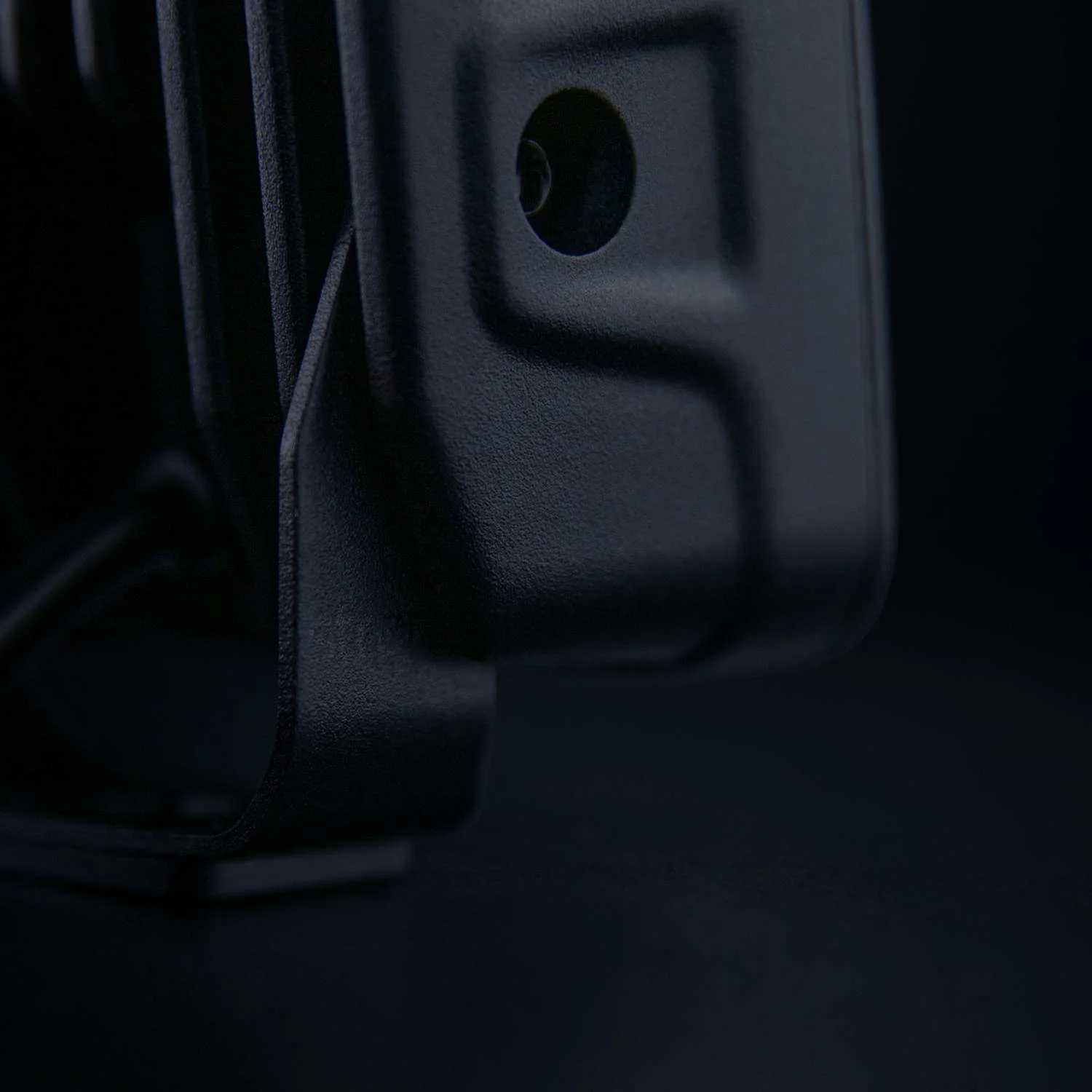

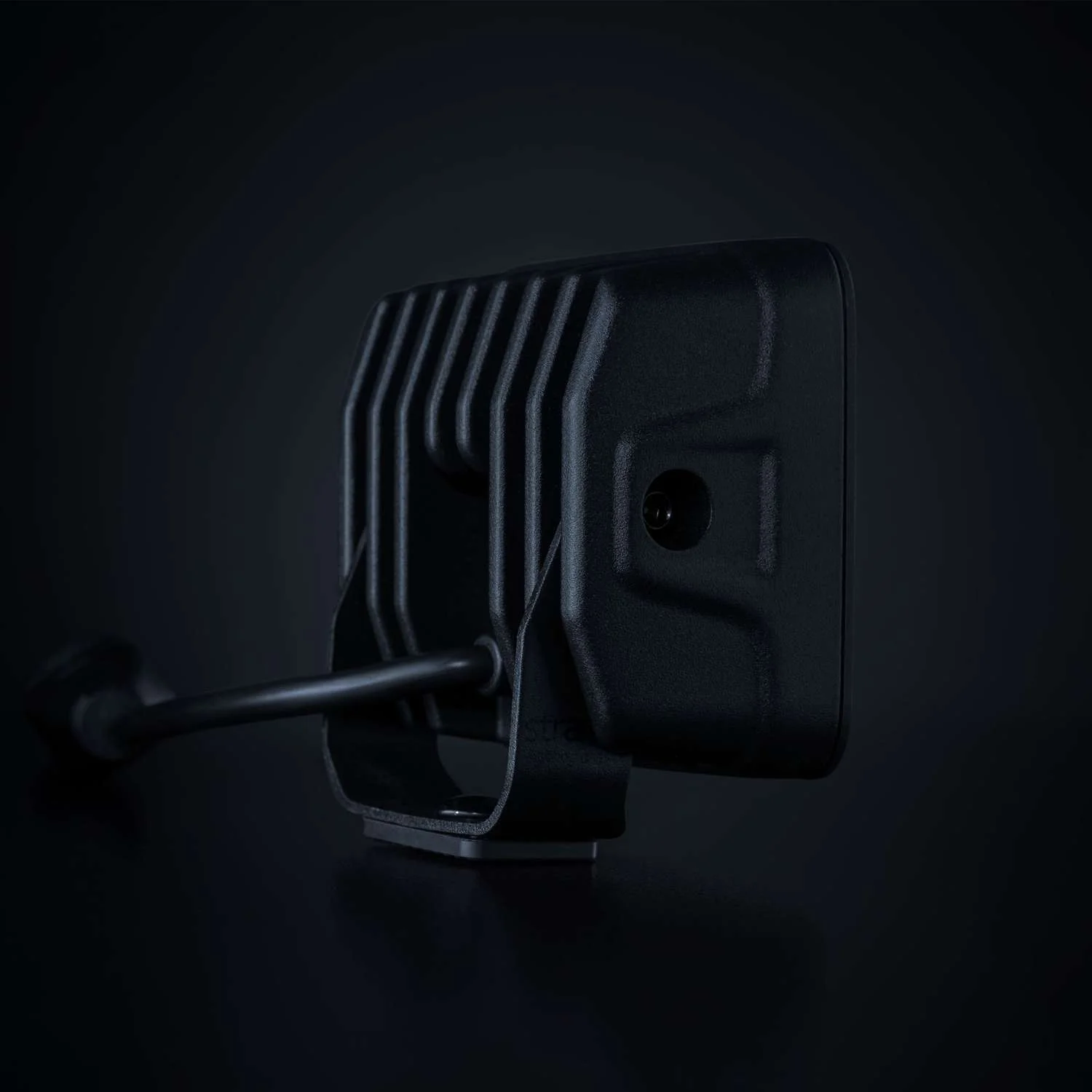

The Qube 3″ driving light is a small driving light with an impressive range and a unique design, perfect for 4x4s, ATVs, UTVs, and MCs. With 2710 actual lumens, 5700 K color temperature, and a 240 m range, it cuts through the dark with ease. The rounded lens delivers an exceptional output and leads water away from the lens in rainy weather. Built to endure, its high-quality materials and IP68/69K rating make it ready for demanding off-road challenges. From the feel of the materials to the bright and focused beam, every detail of the Qube reflects quality built to last. Installation is quick and simple with a 180° adjustable bracket and a 150 mm cable with a DT-4 connector, giving you flexibility and control. The white and yellow position light adds an eye-catching style and glow to any vehicle.
These lights are sold individually and do not include a harness.
Specifications
- Part No. 809286
- Unit pcs
- Voltage 10-32V DC
- Theoretical effect 40W
- Consumption 41W
- Consumption specific function White position light: 3W, Yellow position light: 3,2W
- Theoretical lumen 3500lm
- Actual lumen 2710lm
- 1 lux @ 240m
- Color temperature 5700K
- Beam pattern Optimized beam
- Beam angle 21,0
- Connection DT-4PIN
- Cable length 150mm
- Color lens Clear
- Color LED´s White/yellow
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length 85,03mm
- Depth 53,27mm
- Height 85,75mm
- Height including bracket 96,88mm
- Weight 0,5kg
- IP-class IP68/69K
- Operating temperature -30 - +65°C
- E-approved No
- EMC ECE R10
