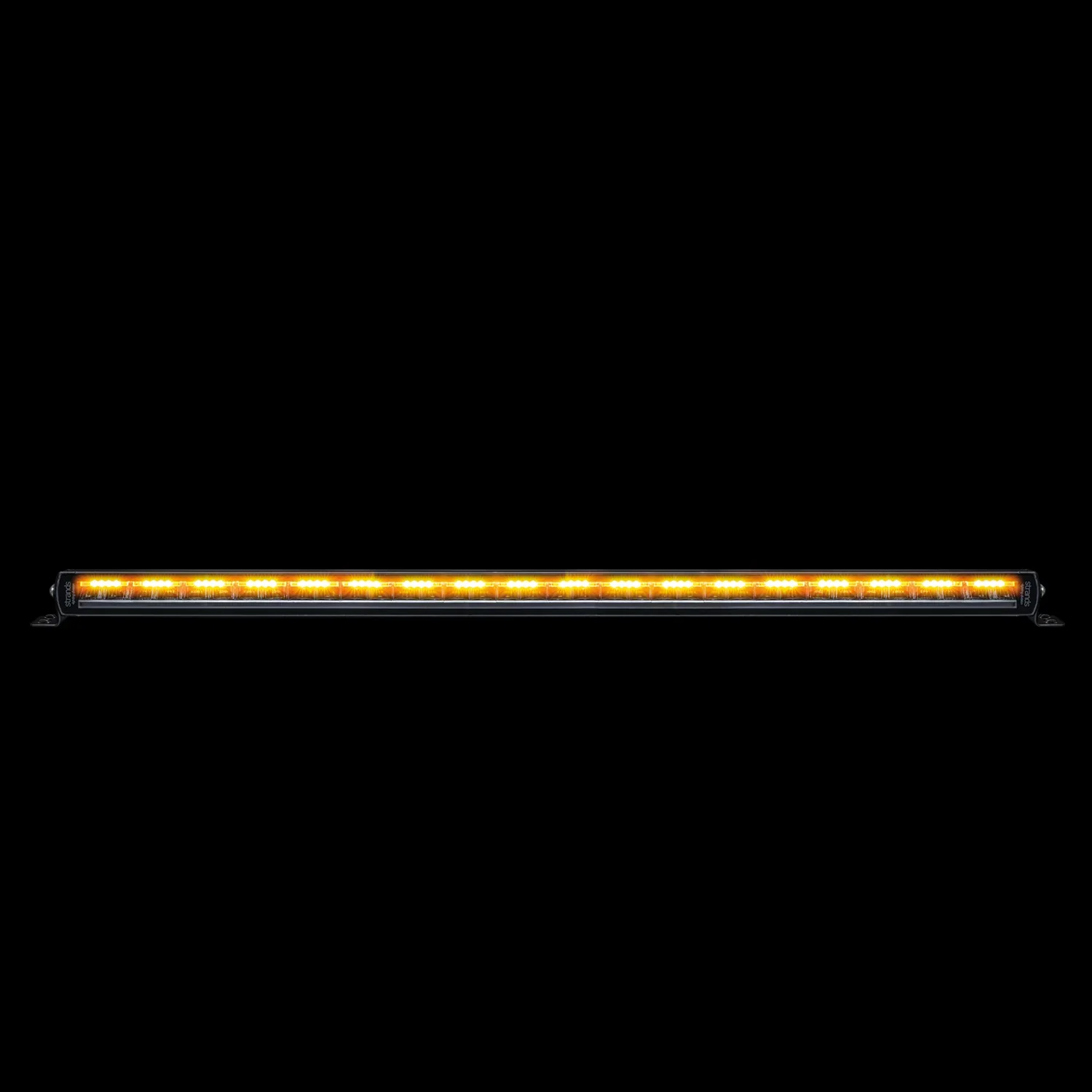

Siberia NG SR LED Bar (20"-38")
Reinventing innovation. Siberia Night Guard is developed for hard work challenges. You can now fit all your lighting needs into one single lamp. An extremely powerful warning light that also provides an unbeatable high beam. Embrace the simplicity and give yourself a night guard with the highest level of reliability. Multifunctional light providing safety in all weathers and in the darkest of darkness.
This light is sold individually and does not include a harness
**Hardwire installation required**
Specifications
| 20 Inch SR | 32 Inch SR | 38 Inch SR | |
| VOLTAGE | 9.35V DC | 9-35V DC | 9.35V DC |
| CONSUMPTION | 54W | 87W | 108W |
| THEORETICAL LUMEN | 7560 | 12 000 | 14 400 |
| ACTUAL LUMEN | 2467 | 4979 | 5867 |
| 1 LUX @ | 414 m | 436m | 452m |
| IP-CLASS | IP67/IP69K | IP67/IP69K | IP67/IP69K |
| BEAM PATTERN | Combo | Combo | Combo |
| POSITION LIGHT | White and amber | white and amber | white and amber |
| CONNECTION | Cable | Cable | Cable |
| CABLE LENGTH | 2500 mm | 2500 mm | 2500 mm |
| MATERIAL HOUSING | Aluminium | Aluminium | Aluminium |
| MATERIAL LENS | Polycarbonate | Polycarbonate | Polycarbonate |
| LENGTH | 504,6 mm | 810,6 mm | 963,6 mm |
| DEPTH | 55,5 mm | 55,5 mm | 55,5 mm |
| HEIGHT | 45 mm | 45 mm | 45 mm |
| HEIGHT INCLUDING BRACKET | 65 mm | 65 mm | 65 mm |
| OPERATING TEMPERATURE | 20°C . +45°C | 20°C . +45°C | 20°C . +45°C |
| E-APPROVED | ECE R7, R65, R112 | ECE R112, R7, R65 | ECE R112, R7, R65 |
| EMC-CERTIFICATE | ECE R10 | FCE R10 | ECE R10 |
Manual
