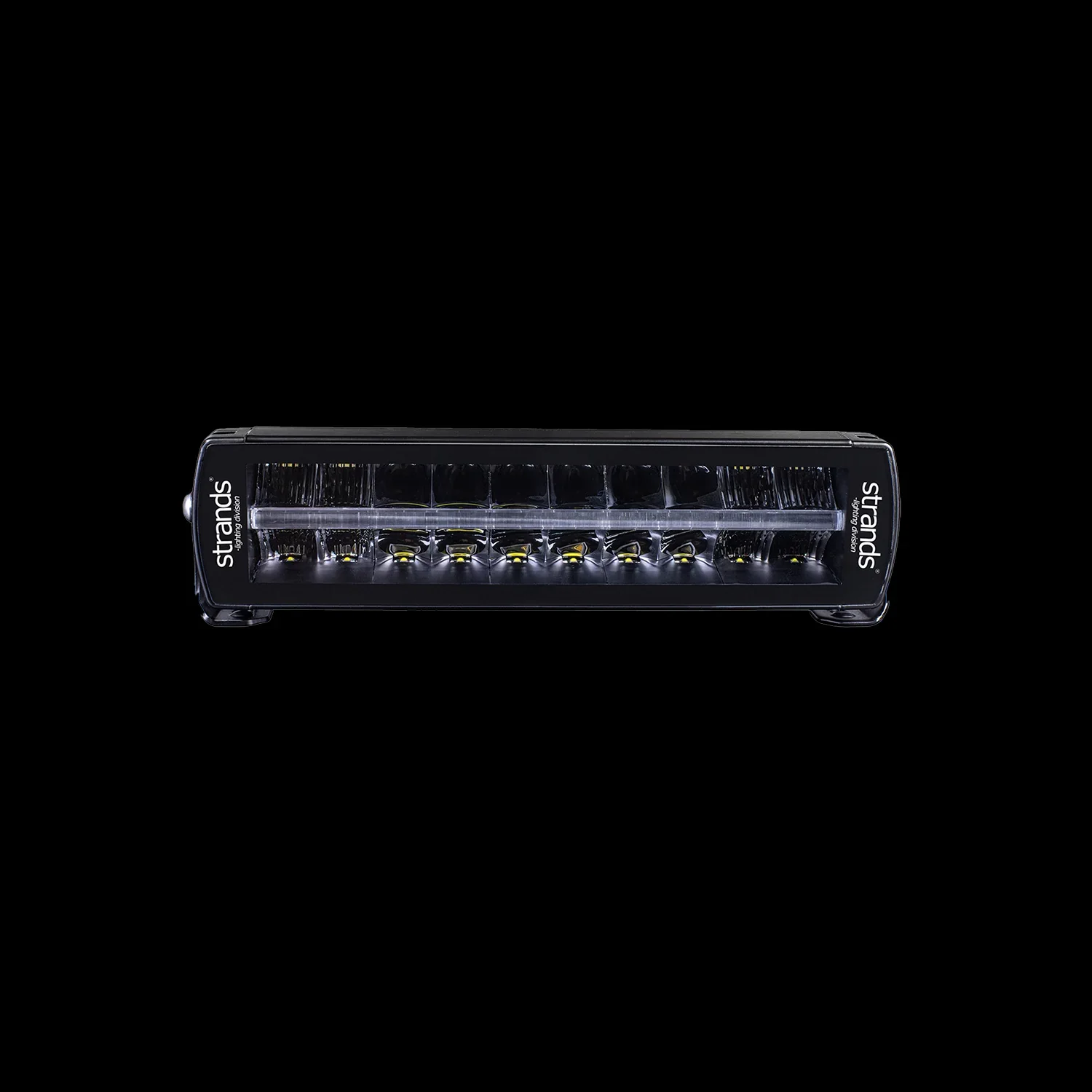

Siberia Red Tiger Work Light Bar (12")
Choose how many you like. Combine them. Create your own style. Siberia Red Tiger knocks other work lights off the game. This is your opportunity to make THAT unique mark. In the shape of a Siberia LED bar we created this stunning, complementary light. The position light comes in dual colours, red and amber. Red Tiger is ideal to place where you usually don’t put LED-bars, above your ordinary tail lights.
This light is sold individually and does not include a harness (whip included)
Wiring Harnesses:
For 1 Light
For 2 Lights
Specifications
| VOLTAGE | 10-40V DC |
| CONSUMPTION (w) 12V/24V | 92.1/90.1 |
| THEORETICAL LUMEN | 8000 |
| ACTUAL LUMEN | 5423 |
| 1 LUX @ (m) | 275 |
| IP.CLASS | IP67/IP69K |
| BEAM PATTERN | Combo |
| POSITION LIGHT | Yes, red and amber |
| CONNECTION | DT4 |
| CABLE LENGTH (mm) | 500 |
| MATERIAL HOUSING | Aluminium |
| MATERIAL LENS | Polycarbonate |
| LENGTH (mm) | 307 |
| HEIGHT (mm) | 76 |
| DEPTH (mm) | 71,6 |
| HEIGHT INCLUDING BRACKET (mm) | 89 |
| OPERATING TEMPERATURE | -30°C - +65°C |
| E-APPROVED | No |
| EMC-CERTIFICATE | ECE R10 |
Manual
Description
Choose how many you like. Combine them. Create your own style. Siberia Red Tiger knocks other work lights off the game. This is your opportunity to make THAT unique mark. In the shape of a Siberia LED bar we created this stunning, complementary light. The position light comes in dual colours, red and amber. Red Tiger is ideal to place where you usually don’t put LED-bars, above your ordinary tail lights.
This light is sold individually and does not include a harness (whip included)
Wiring Harnesses:
For 1 Light
For 2 Lights
Specifications
| VOLTAGE | 10-40V DC |
| CONSUMPTION (w) 12V/24V | 92.1/90.1 |
| THEORETICAL LUMEN | 8000 |
| ACTUAL LUMEN | 5423 |
| 1 LUX @ (m) | 275 |
| IP.CLASS | IP67/IP69K |
| BEAM PATTERN | Combo |
| POSITION LIGHT | Yes, red and amber |
| CONNECTION | DT4 |
| CABLE LENGTH (mm) | 500 |
| MATERIAL HOUSING | Aluminium |
| MATERIAL LENS | Polycarbonate |
| LENGTH (mm) | 307 |
| HEIGHT (mm) | 76 |
| DEPTH (mm) | 71,6 |
| HEIGHT INCLUDING BRACKET (mm) | 89 |
| OPERATING TEMPERATURE | -30°C - +65°C |
| E-APPROVED | No |
| EMC-CERTIFICATE | ECE R10 |
