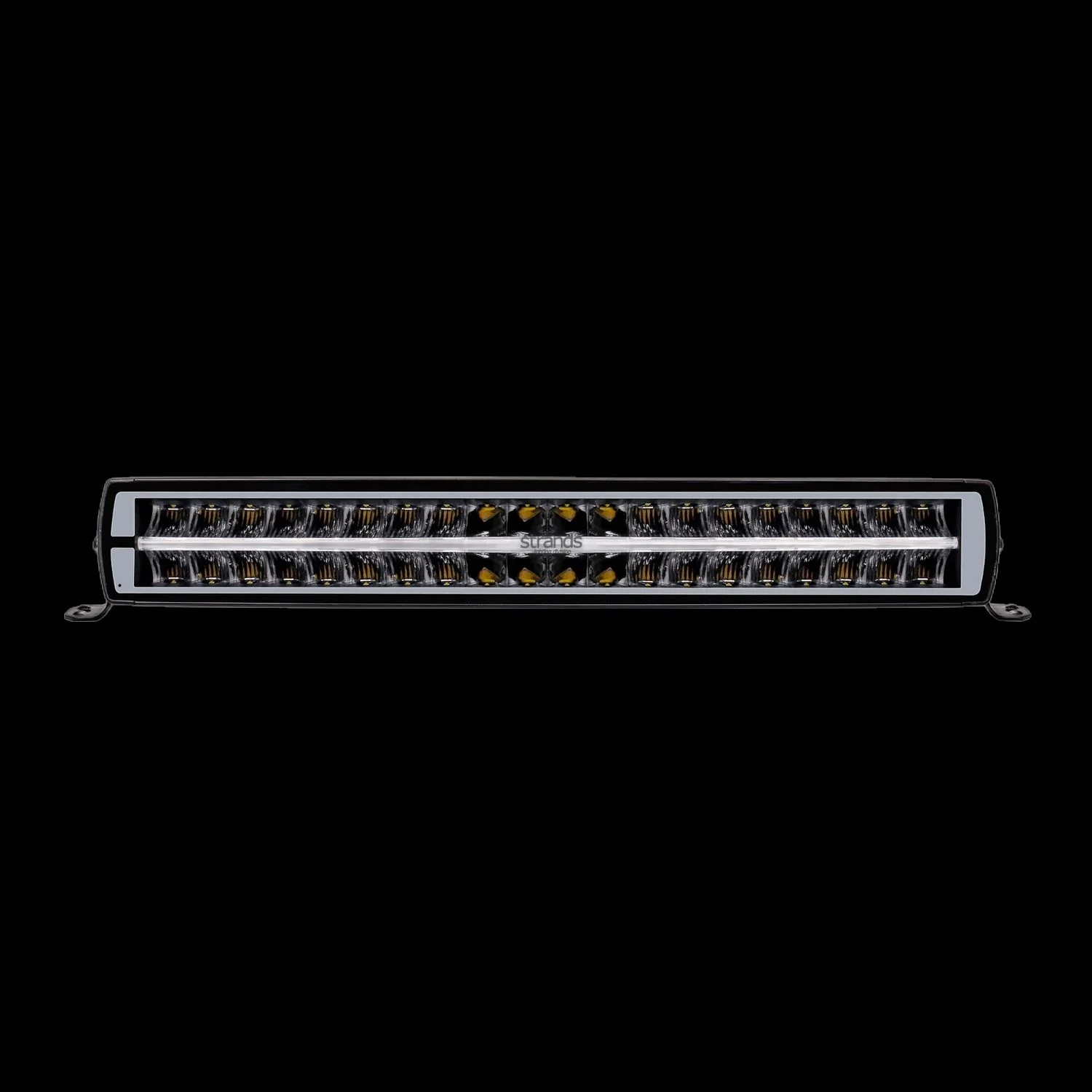

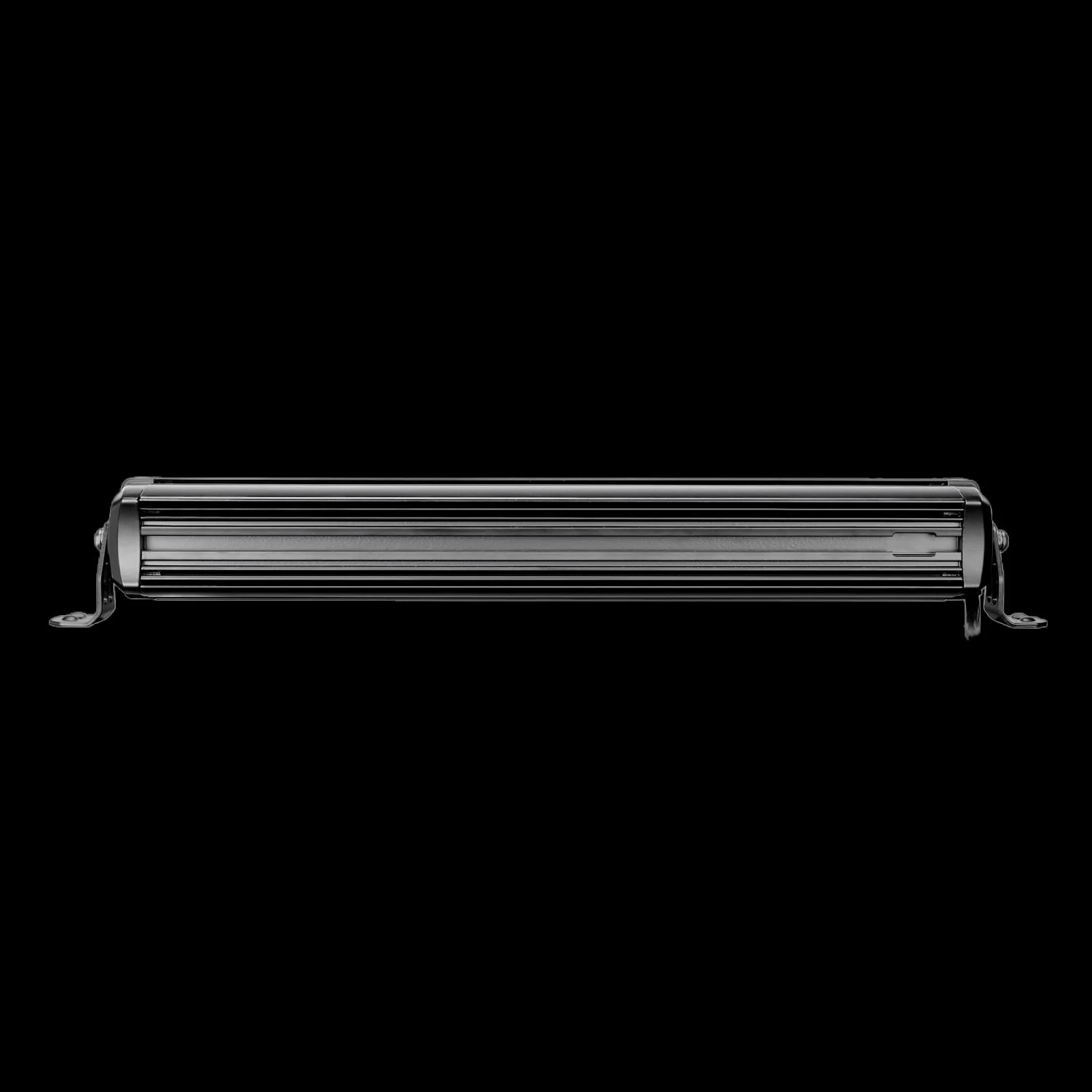

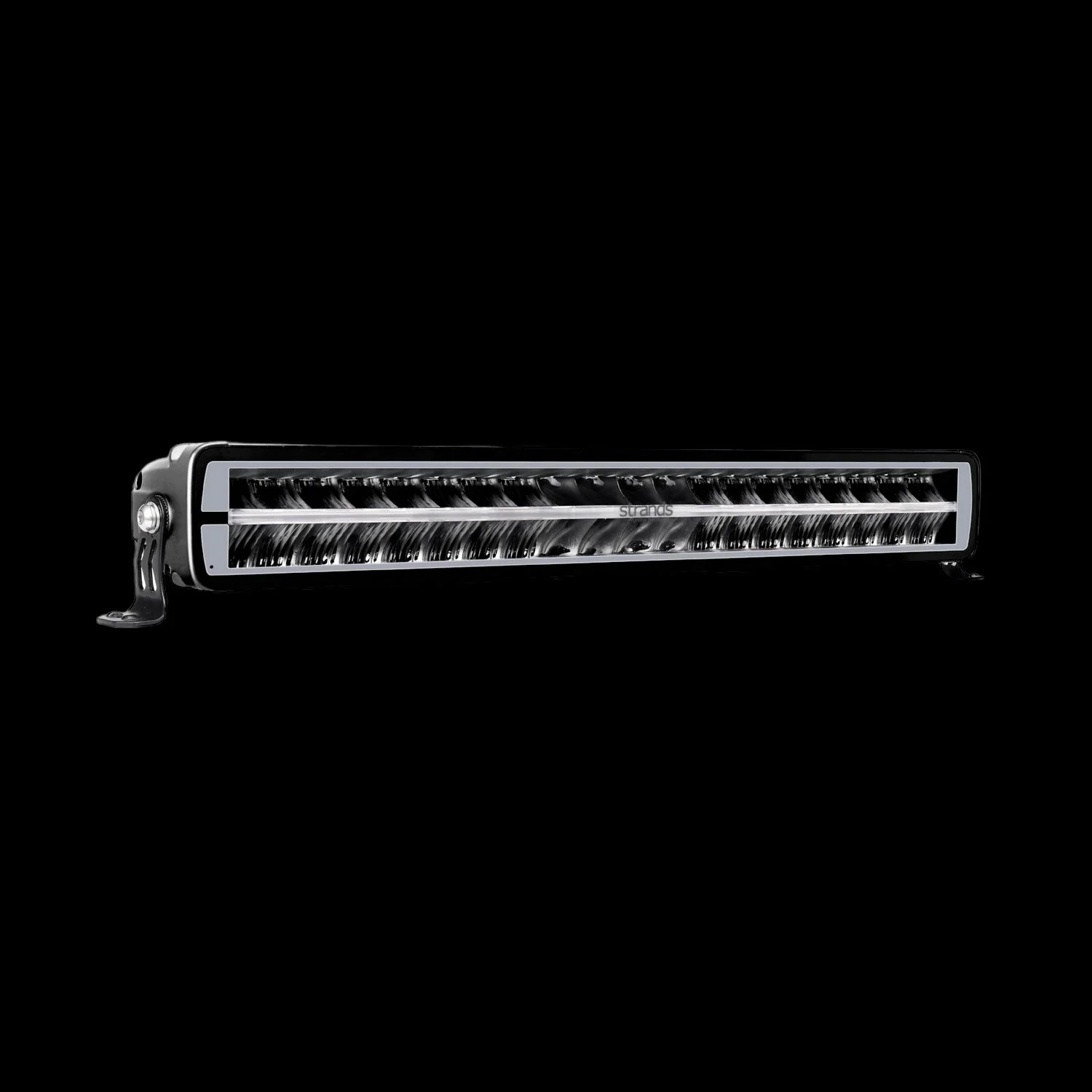

Siberia DRH Heated LED Bar (22")
Description

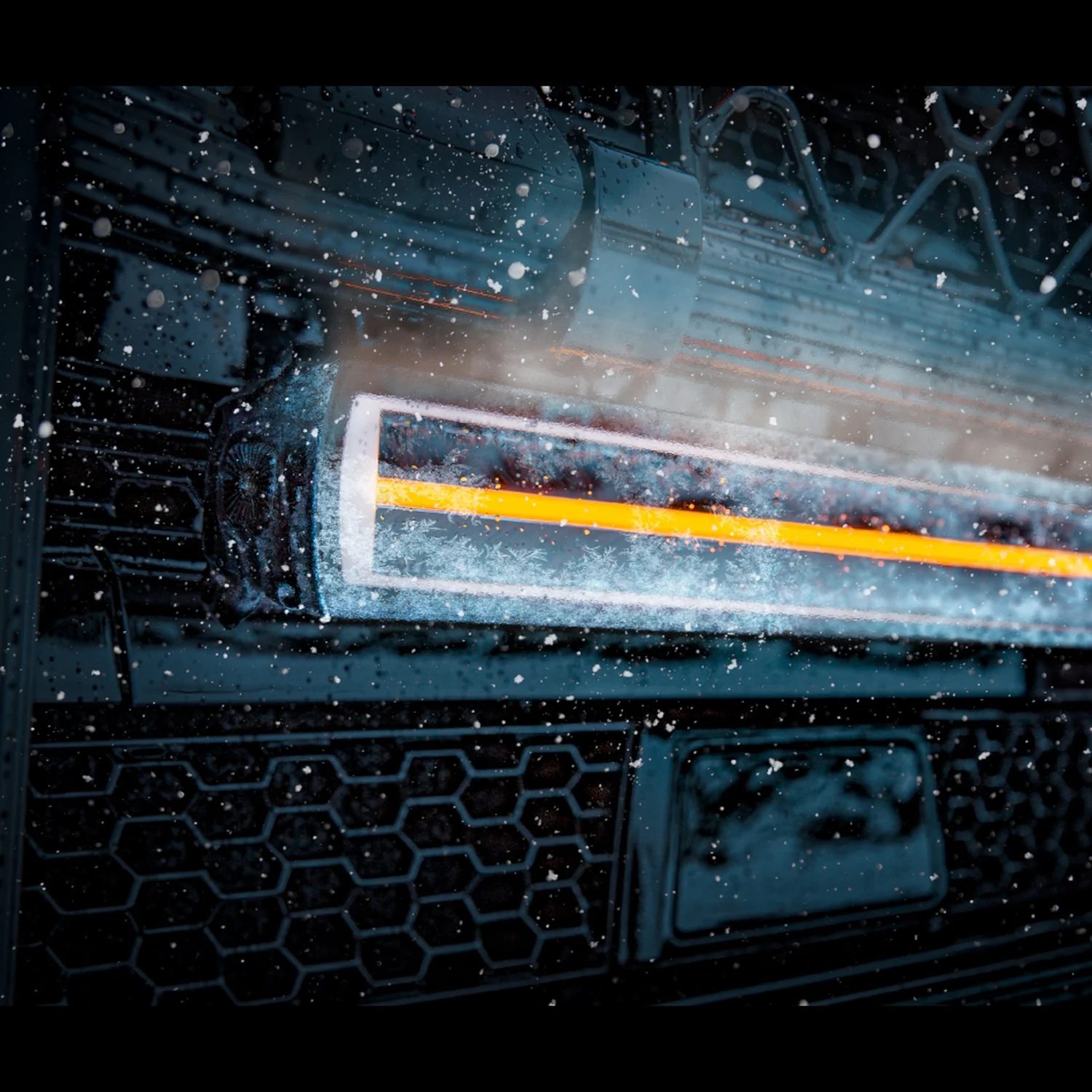

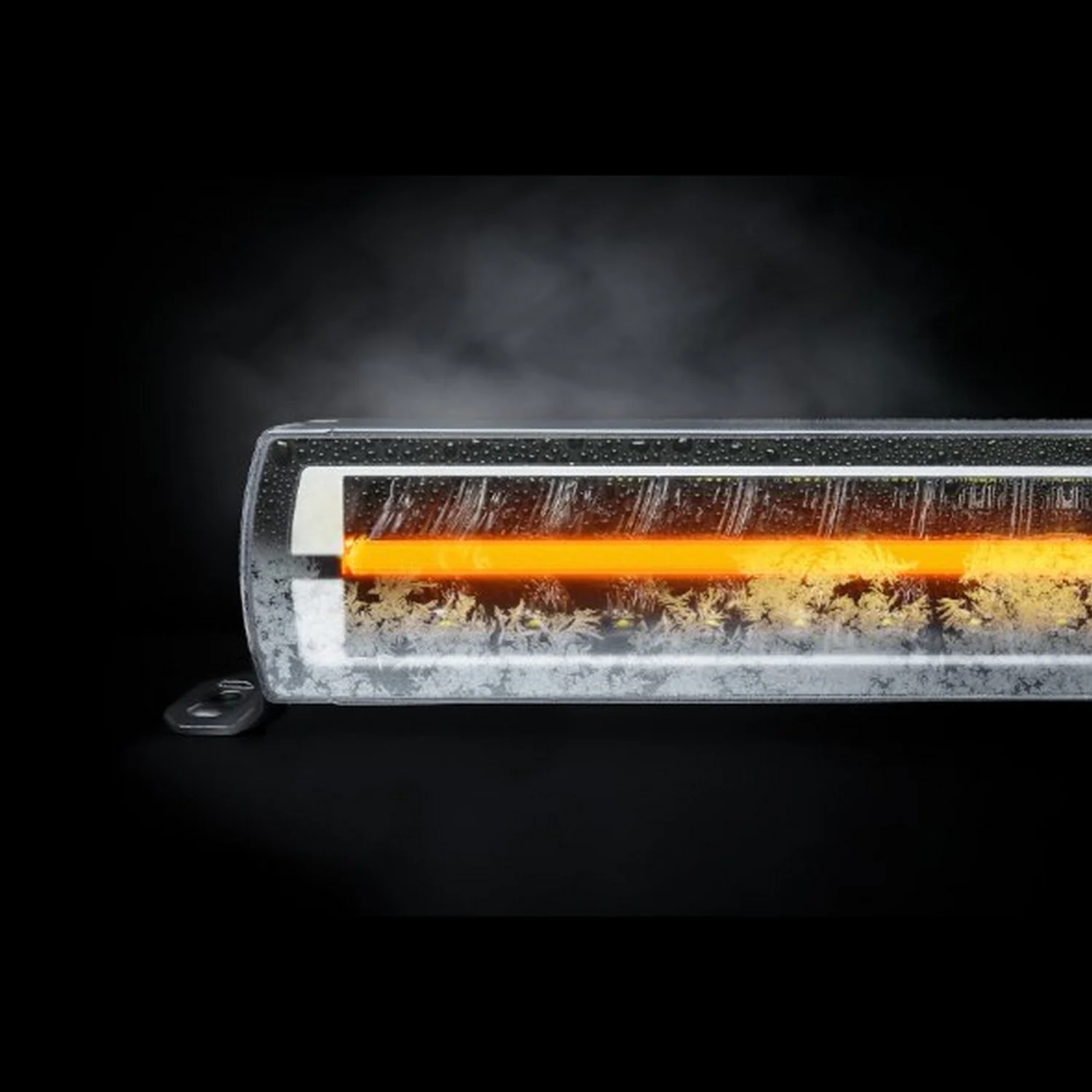

Siberia DRH is an E-approved, double-row LED bar with a built-in heated lens. Created to give you maximum visibility regardless of the weather and road conditions. The feature is automatic, starts at 5°C, and keeps snow and ice away from the lens – without any handling by the driver.

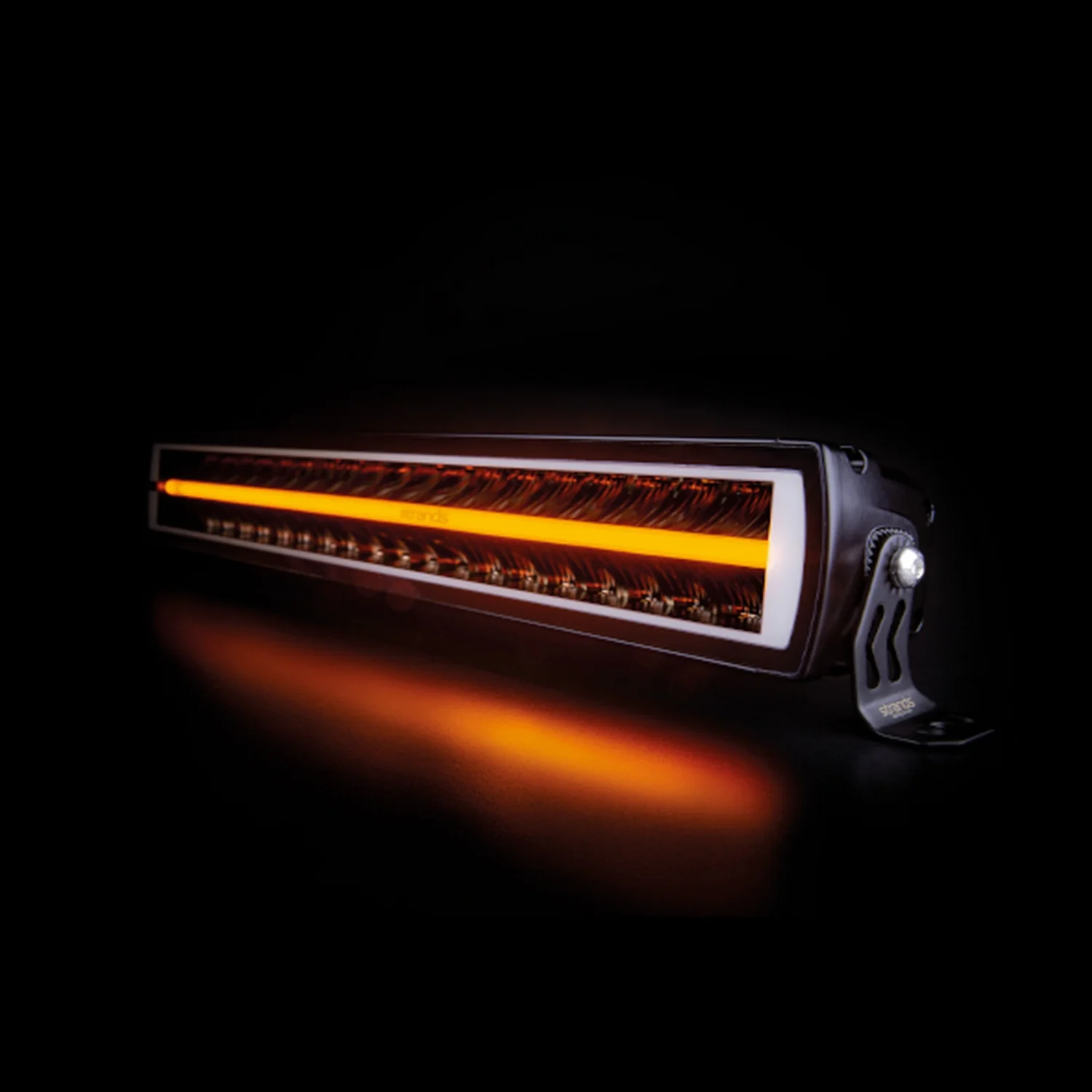

Siberia DRH is developed for the harsh cold climate. The LED bar’s exclusive suit gives an unbeatable overall impression. Every little element is created to bring out the best possible performance regardless of the weather conditions. Siberia DRH gives you the unique Siberia dual position light. Express your style and personality by choosing between the colours amber and white.
This light is sold individually and does not include a harness (whip included)
Wiring Harnesses: For 1 Light
Specification
| 22 Inch | |
| VOLTAGE | 10-40V DC |
| CONSUMPTION (w) 12V | 91/118.6 |
| CONSUMPTION (w) 24V | 91/116.3 |
| THEORETICAL LUMEN | 16000 |
| ACTUAL LUMEN | 6316 |

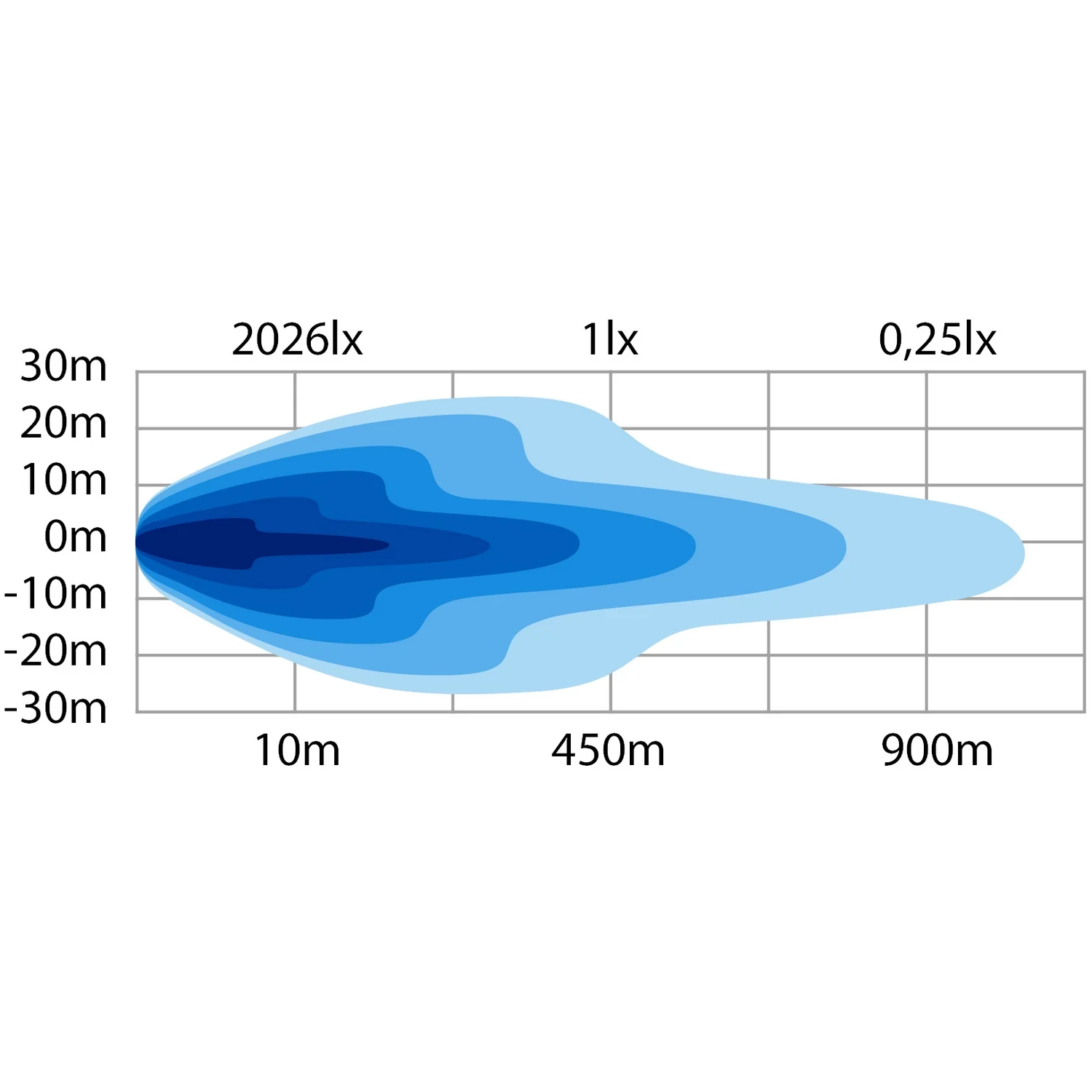

| 1 LUX @ (m) | 450 |
| IP CLASS | IP67/1P69K |
| BEAM PATTERN | Combo |
| FUNCTIONS | Heated lens, amber and white position light, high beam |
| CONNECTION | DT4 |
| CABLE LENGTH (mm) | 500 |
| MATERIAL HOUSING | Aluminium |
| MATERIAL LENS | Polycarbonate |
| LENGTH (mm) | 562 |
| DEPTH (mm) | 71,6 |
| HEIGHT (mm) | 76 |
| HEIGHT INCLUDING BRACKET (mm) | 89 |
| OPERATING TEMPERATURE | -30°C . +45°C |
| E-APPROVED | ECE R112, R7 |
| EMC-CERTIFICATE | ECE R12 |
