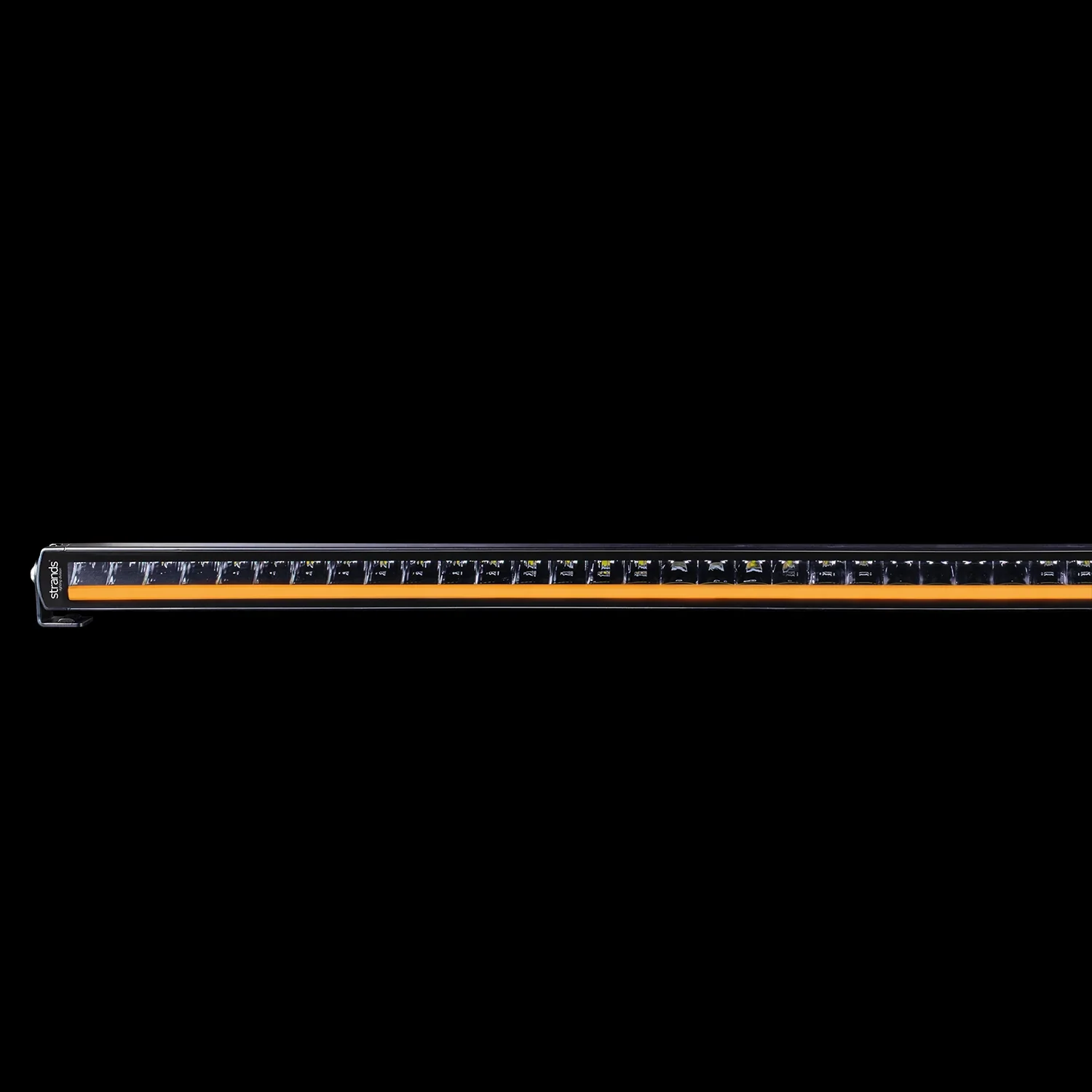

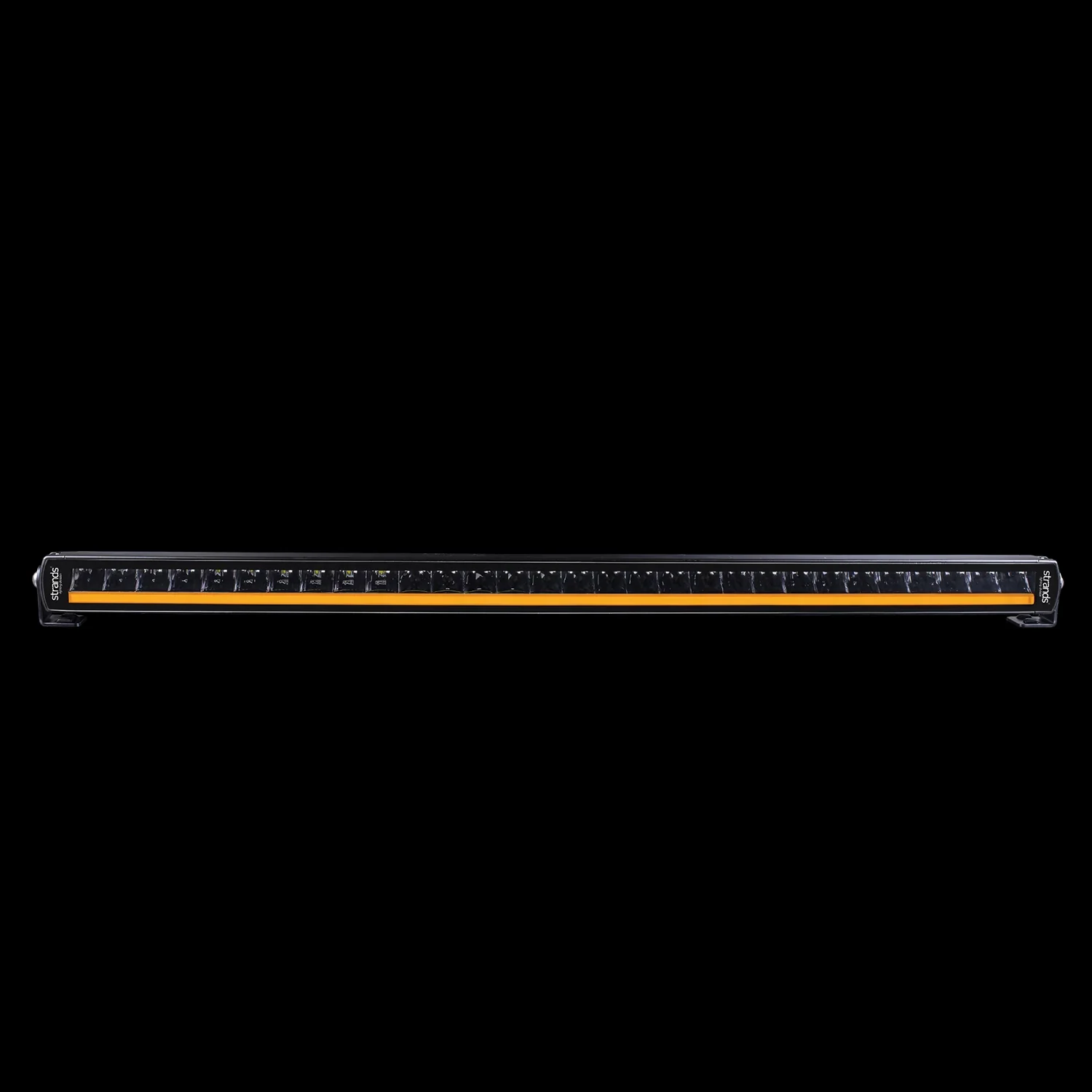

Siberia SR LED Bar (12"-22")
Description
Welcome to the Siberia Series single row LED light bars. These LED bars are truly innovative, combining 2 separate lighting functions with cutting edge design.
The power of the spot beam on the 12" bar gives you an extremely long and concentrated light forward where you need it. The power of the combo beam on the longer bars gives you a perfect balance between length and width. All are E-approved, providing exceptional range, regardless of bar length. The second feature is a dual colour position light, which illuminates with your choice of output – a cool white or rich amber colour. This feature gives you the option of linking to daytime running lights, flashers or other functions and customizes the appearance of your vehicle.
This light is sold individually and does not include a harness (whip included on models with DT connector)
Wiring Harnesses: For 1 Light
Specifications
| 12 Inch | 22 Inch | ||
| VOLTAGE | 10-40V DC | 10-40V DC | |
| CONSUMPTION (w) 12V/24V | 32/32 | 59/59 | |
| THEORETICAL LUMEN | 4000 | 8000 | |
| ACTUAL LUMEN | 2200 | 4254 | |
| 1 LUX @ (m) | 368 | 447 | |
| IP CLASS | IP67/IP69K | IP67/IP69K | |
| BEAM PATTERN | Spot |
Combo | |
| POSITION LIGHT | Yes, amber and white | Yes, amber and white | |
| CONNECTION | DT4 | DT4 | |
| CABLE LENGTH (mm) | 500 | 500 | |
| MATERIAL HOUSING | Aluminium | Aluminium | |
| MATERIAL LENS | Polycarbonate | Polycarbonate | |
| LENGTH (mm) | 300,6 | 555,6 | |
| DEPTH (mm) | 55,5 | 55,5 | |
| HEIGHT (mm) | 45 | 45 | |
| HEIGHT INCLUDING BRACKET (mm) | 65 | 65 | |
| OPERATING TEMPERATURE | -30°C - +65°C |
|
|
| E-APPROVED | ECE R112, R7 | ECE R112, R7 | |
| EMC-CERTIFICATE | ECE R10 | ECE R10 |
Manual
Download 22" Manual
