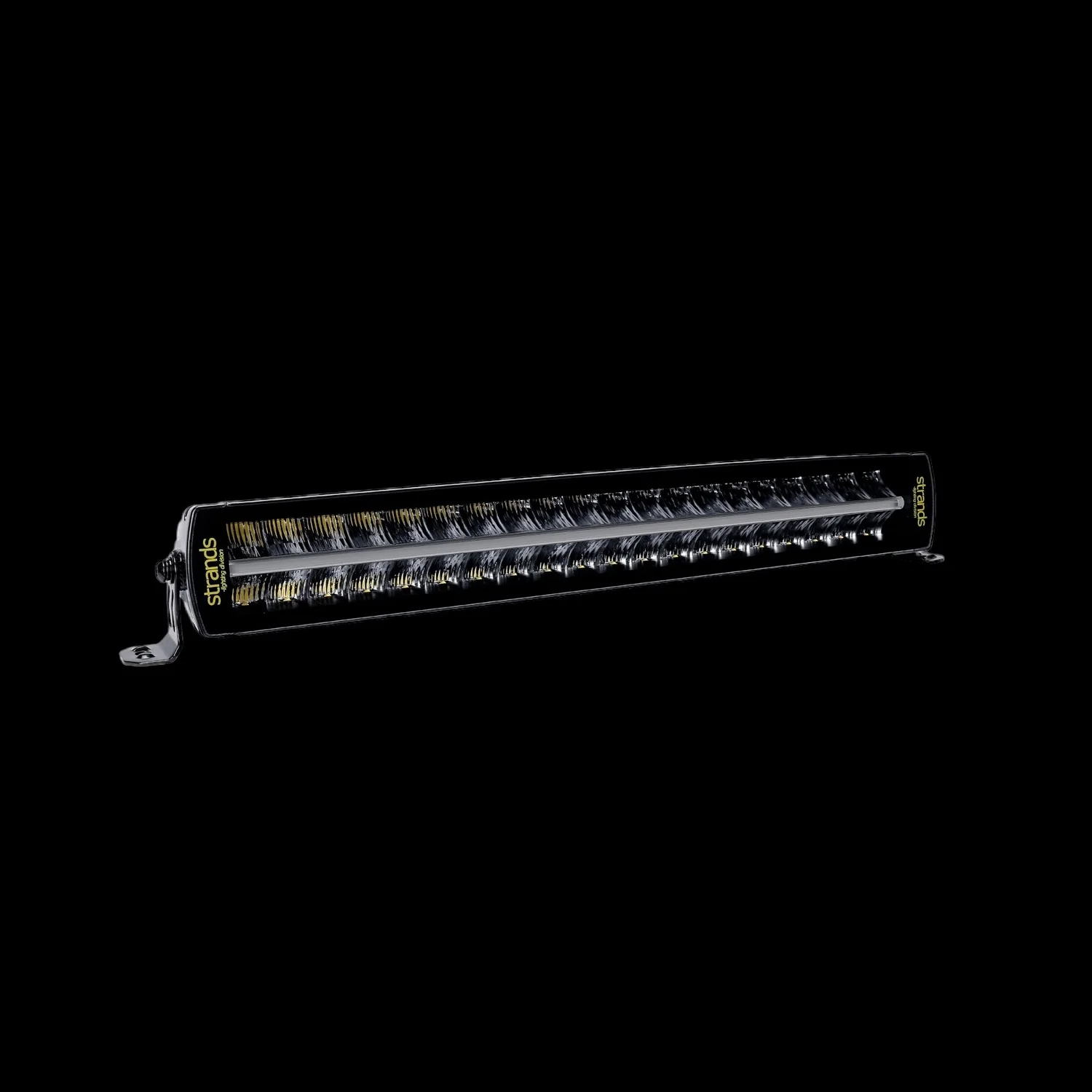

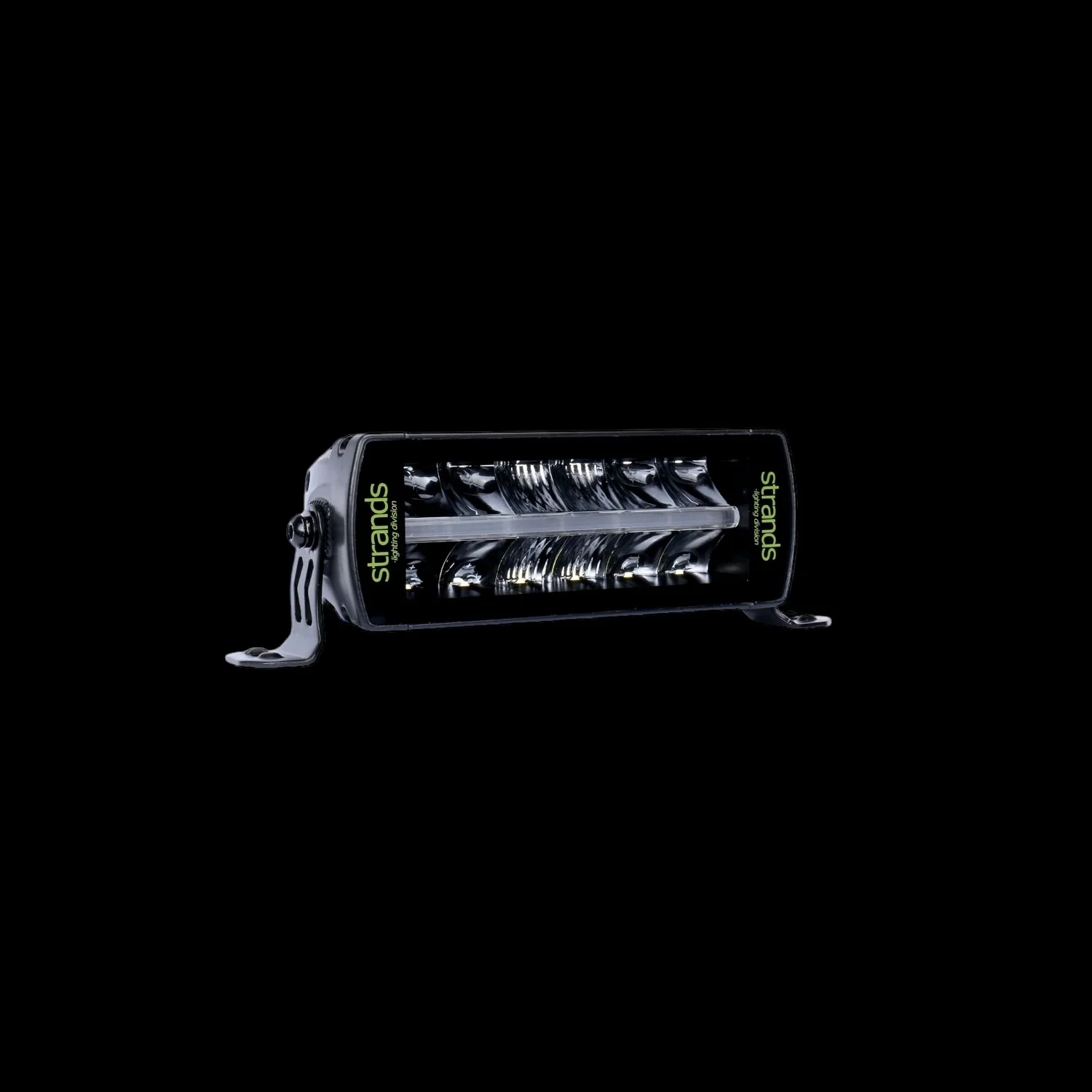

Siberia Outlaw UDX DR LED Bar (8"-22")
Description
Nothing goes up against the ultimate driving experience. Siberia Outlaw UDX is a massive power package in a small costume that gives you a revolutionary lighting experience you haven´t witnessed before.
Siberia Outlaw UDX is a total knockout regarding the light experience, unlike previous LED bars of the same size. Standing out from the crowd by giving the driver the option to switch between two modes – the Xperience mode and the E-approved mode. The driver activates the Xperience mode by turning on the full beam for two seconds and then flashing three times. To switch to E-approved mode, start the car and repeat the procedure. This ensures the driver’s safety and that the switch doesn´t happen by mistake.
The Xperience mode provides the ultimate beam pattern experience, It will be light literally everywhere, like nothing you have experienced before.

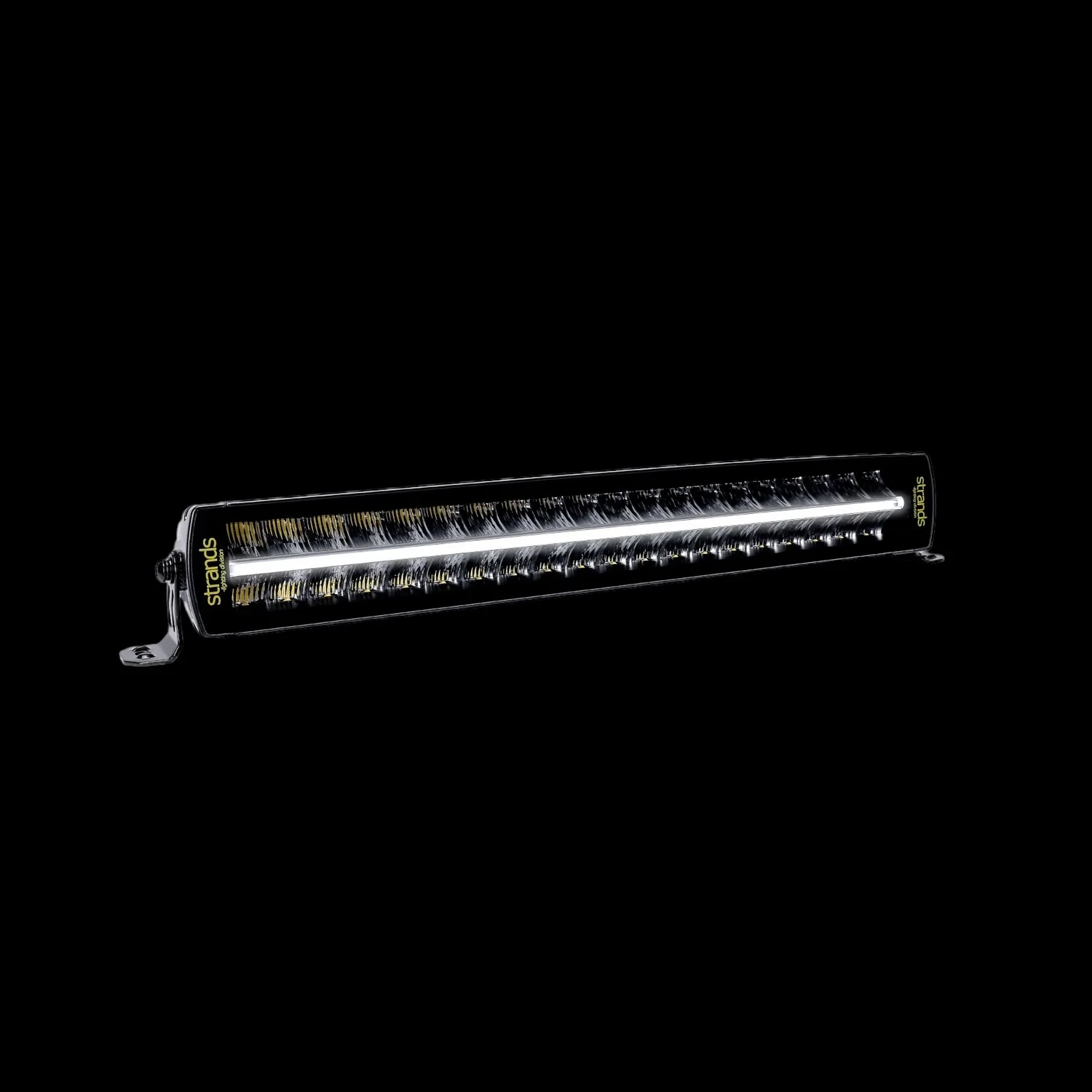

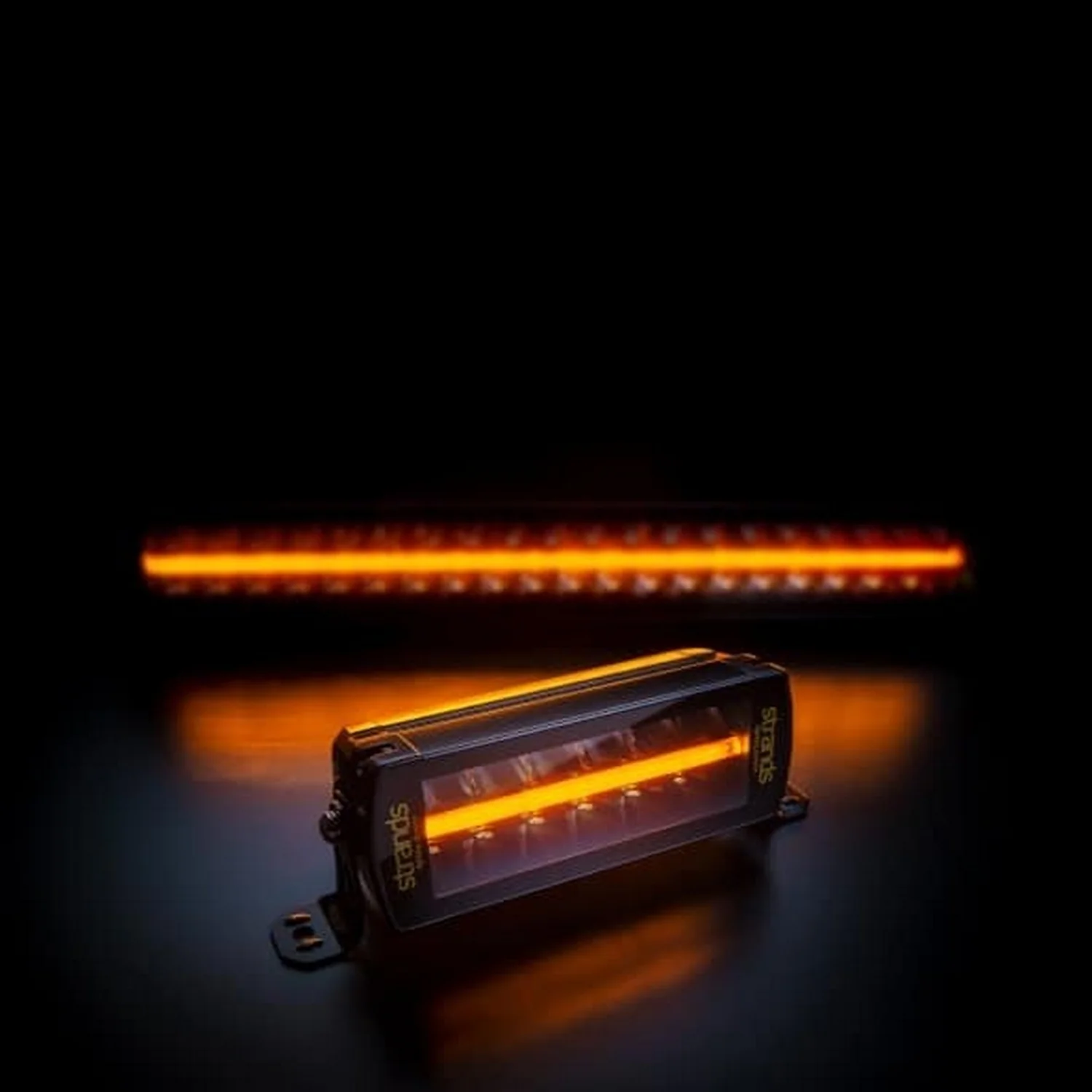

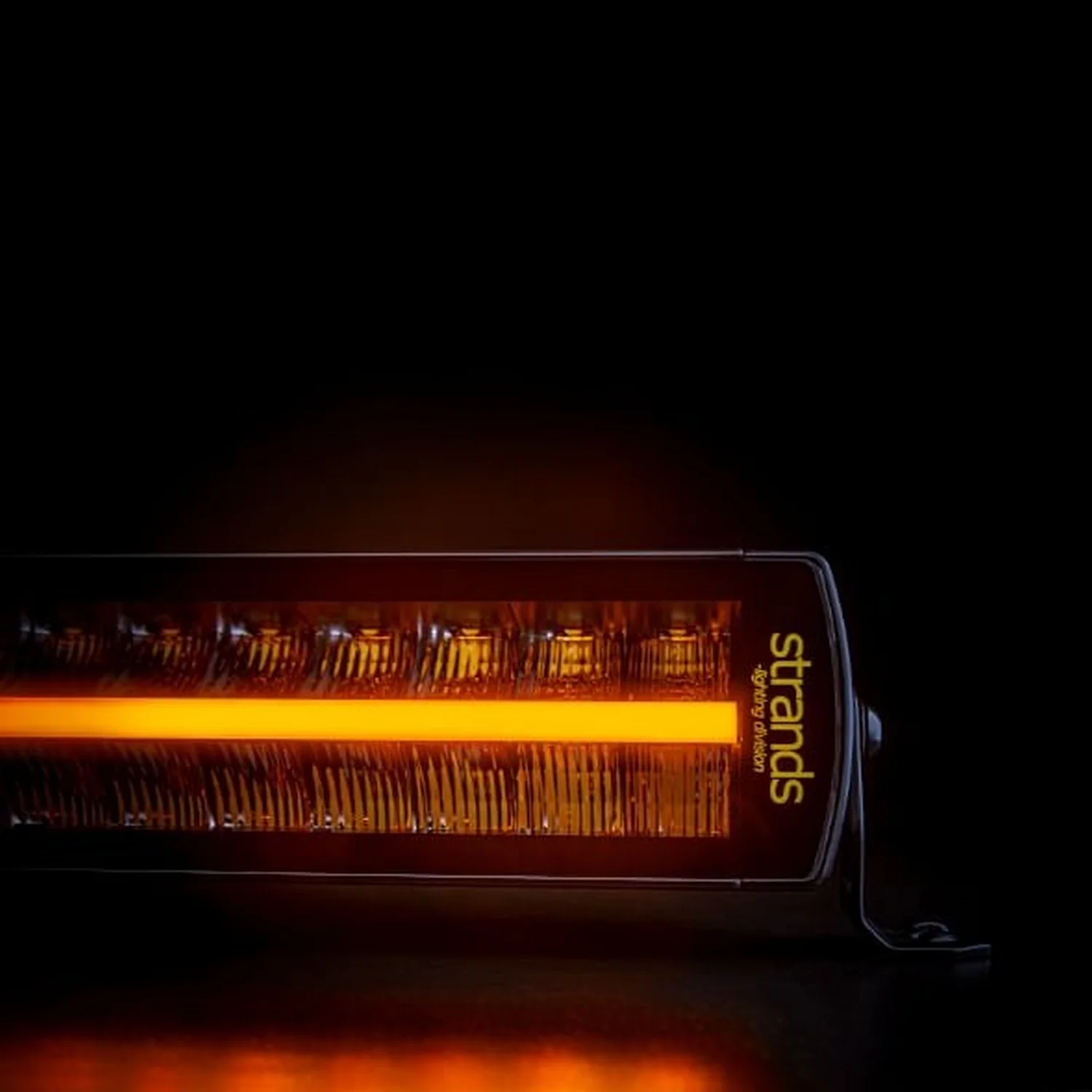

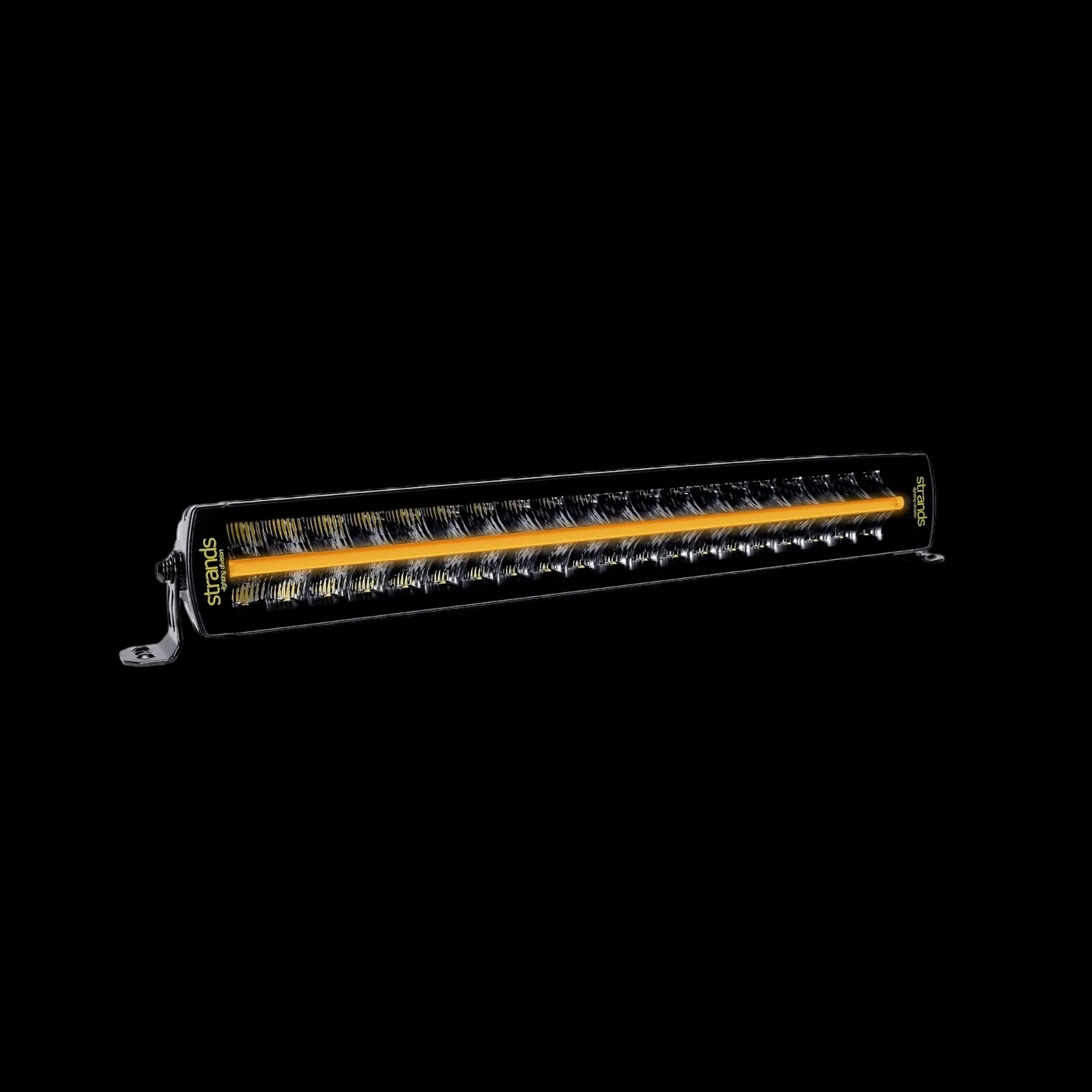

Siberia Outlaw UDX is created of high-end components. Shaped by precision, development, and world-class technology and made by the best diodes, housing, and protecting UV coating. Standing out from the crowd with the Siberia Outlaw significant yellow logotype and the typical Siberia design with no edge lens and characteristic position light. Choose between the moonlight in white or the sunrise in amber.
This light is sold individually and does not include a harness **Hardwire installation required**
Specification
| 8 Inch | 22 Inch | |
| PCS LED´s | 12 | 40 |
| VOLTAGE (V DC) | 10-32V DC | 10-32V DC |
| THEORETICAL EFFECT (w) 12V/24V | 120/120 | 400/400 |
| CONSUMPTION (w) 12V | E-approved mode: 31,7 Experience mode: 66,3 | E-approved mode: 102 Experience mode: 215 |
| CONSUMPTION (w) 24V | E-approved mode: 31,7 Experience mode: 66,3 | E-approved mode: 102 Experience mode: 215 |
| THEORETICAL LUMEN | 7167 | 48000 |
| ACTUAL LUMEN | E-approved mode: 2788 Experience mode: 5758 | E-approved mode: 10889 Experience mode: 22900 |

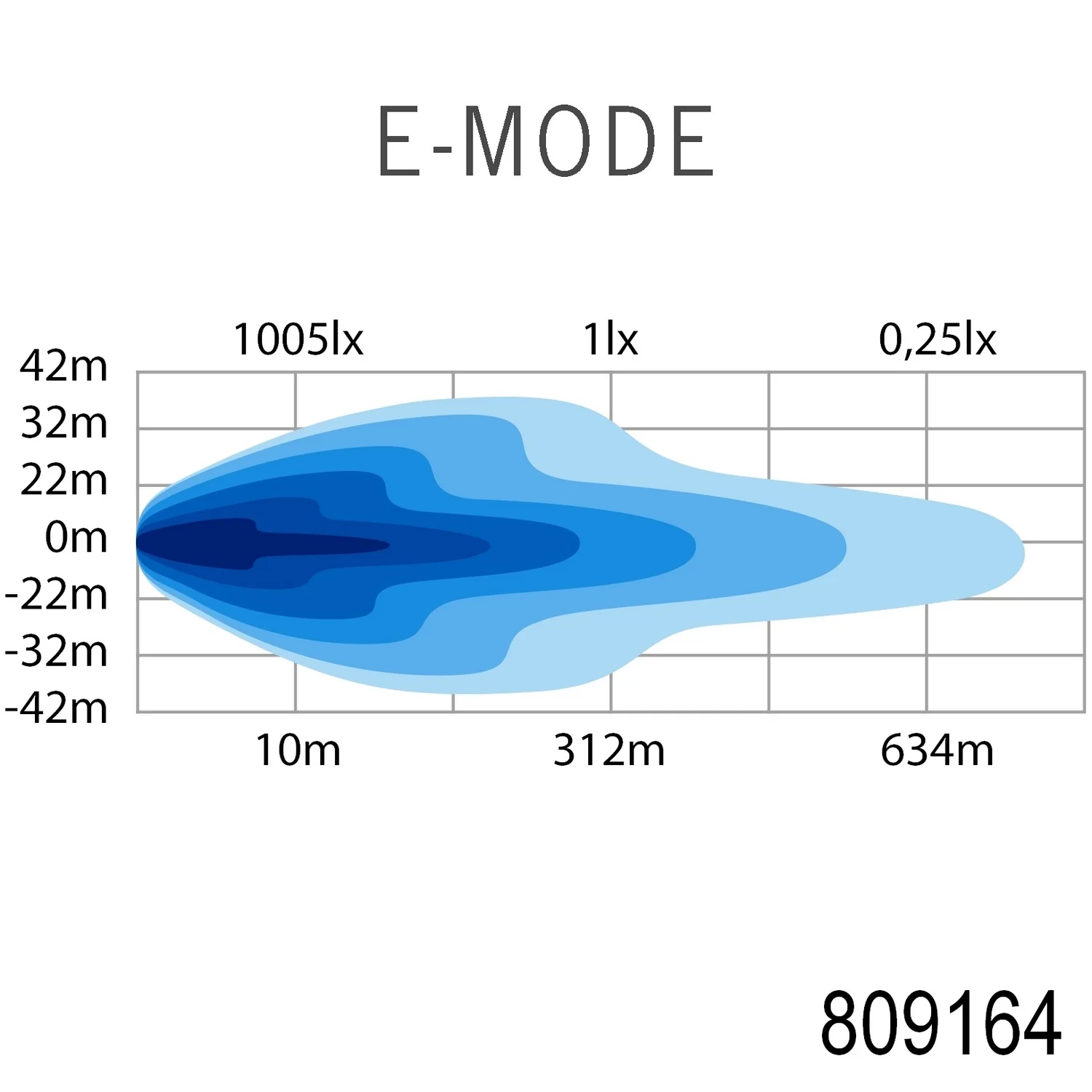

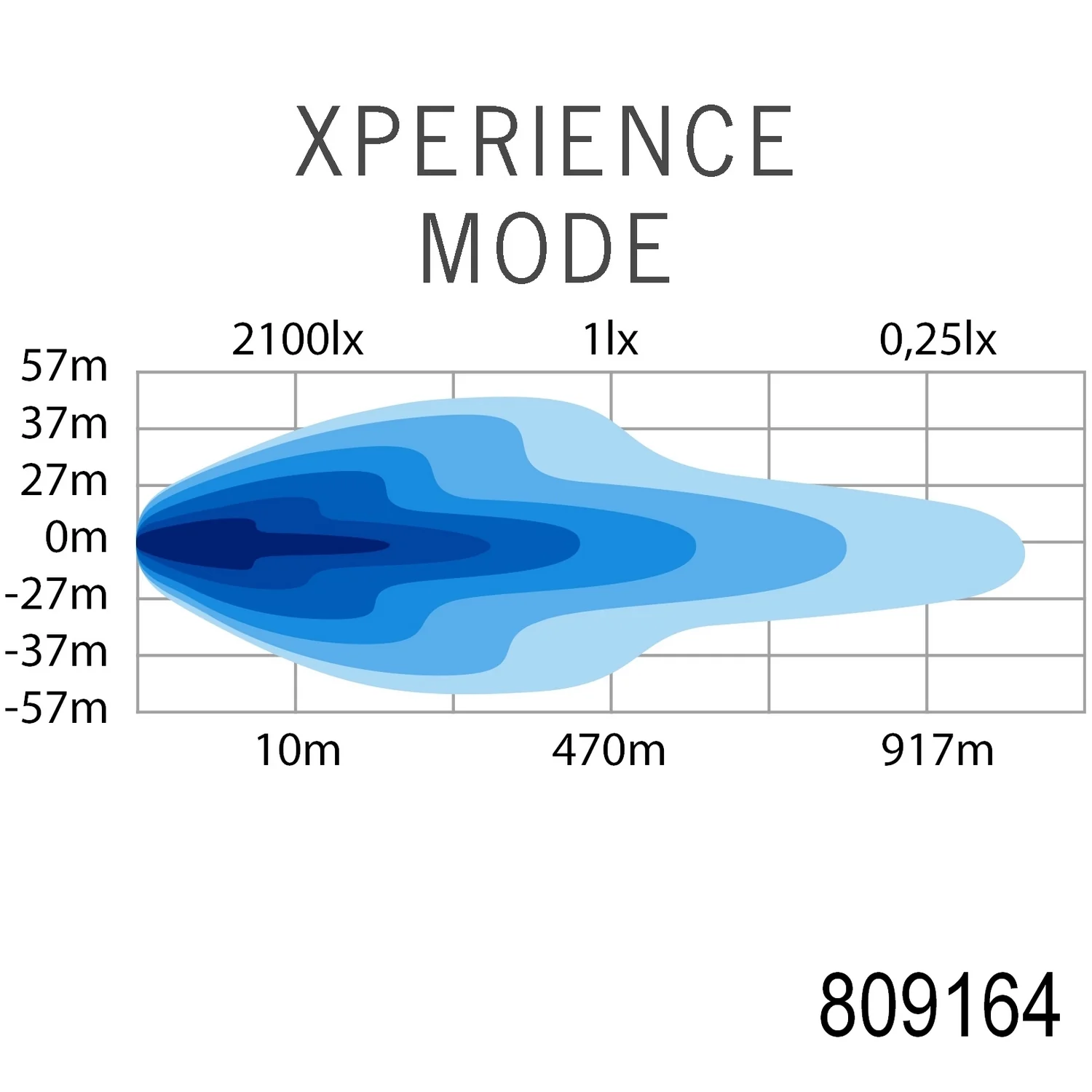

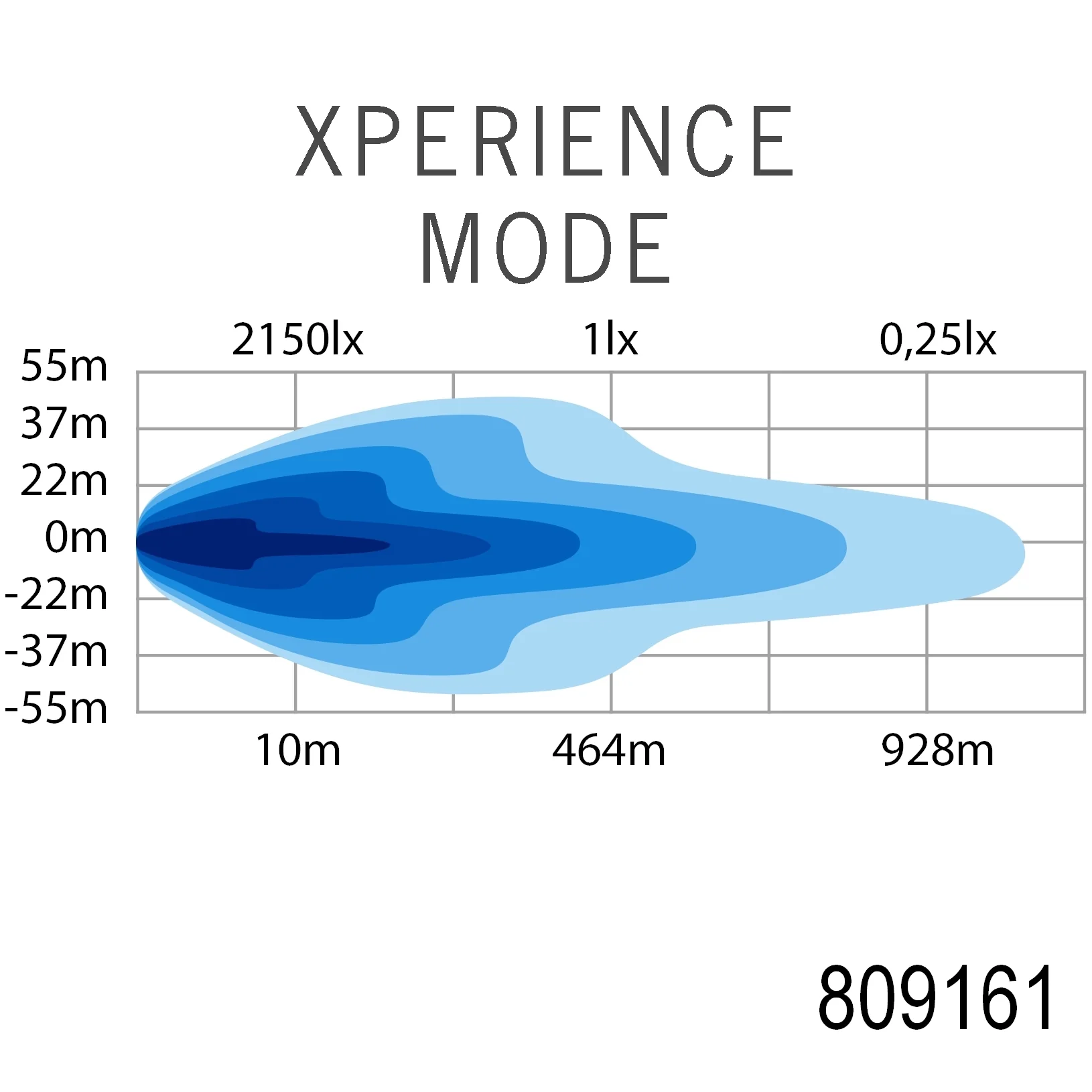

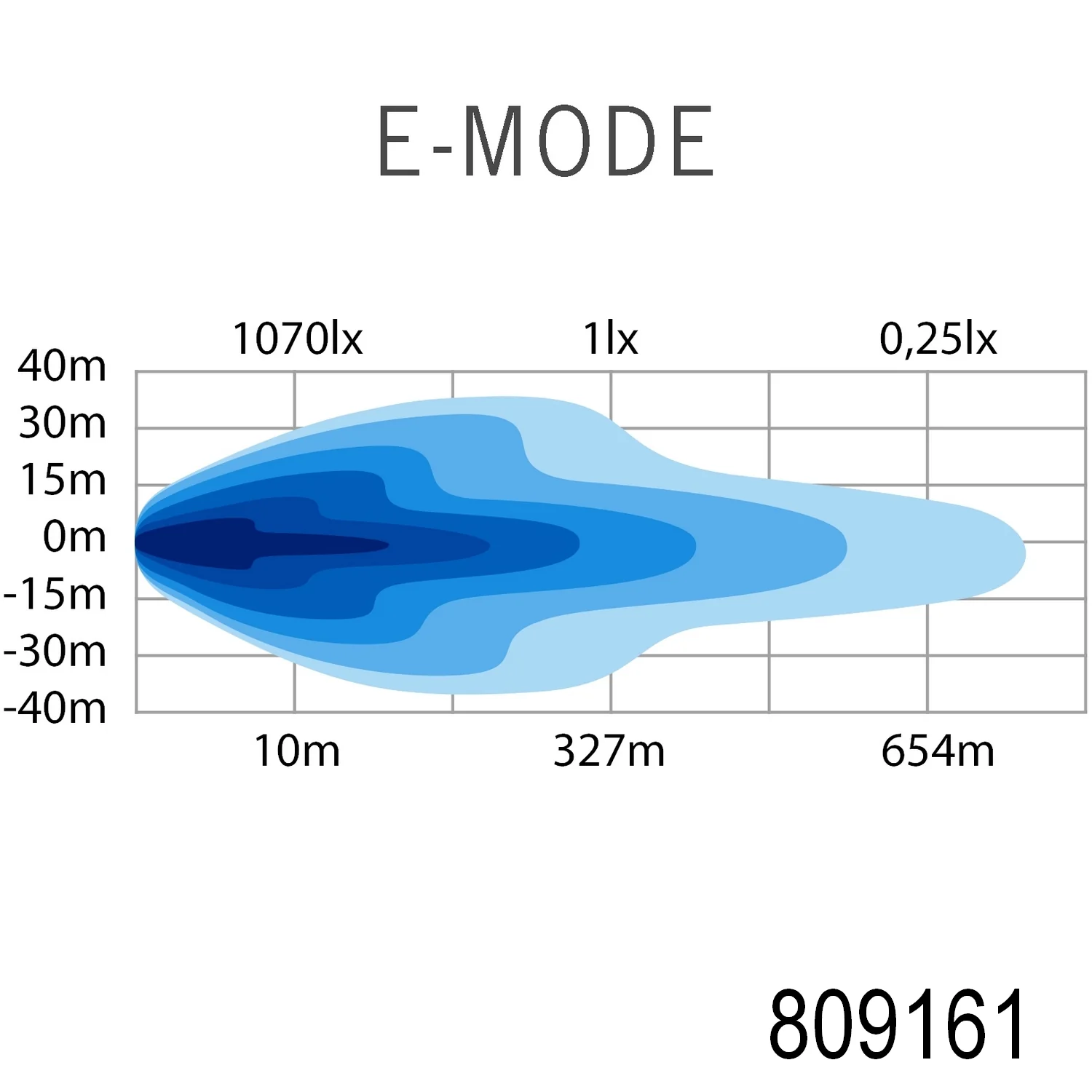

| 1 LUX @ m | E-approved mode: 327 Experience mode: 464 | E-approved mode: 312 Experience mode: 470 |
| KELVIN | 6500K | 6500K |
| IP CLASS | 67/69K | 67/69K |
| COLOUR HOUSING | Black | Black |
| COLOUR LENS | Clear | Clear |
| COLOUR LED´s | While | While |
| BEAM PATTERN | Combo | Combo |
| POSITION LIGHT | Yes, white and amber | Yes, white and amber |
| CONNECTION | DT4 | Cable |
| CABLE LENGTH (mm) | 500 | 1500 |

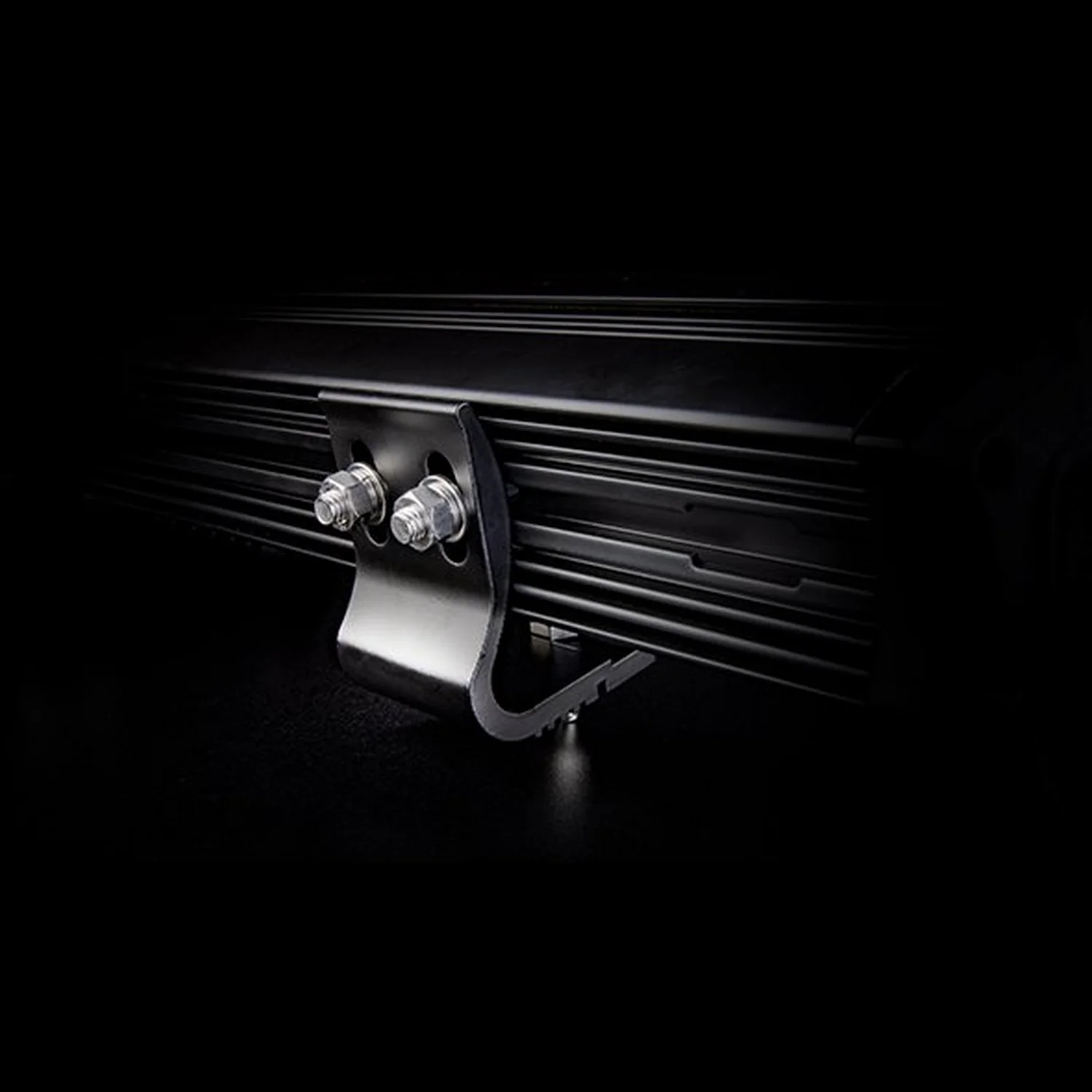

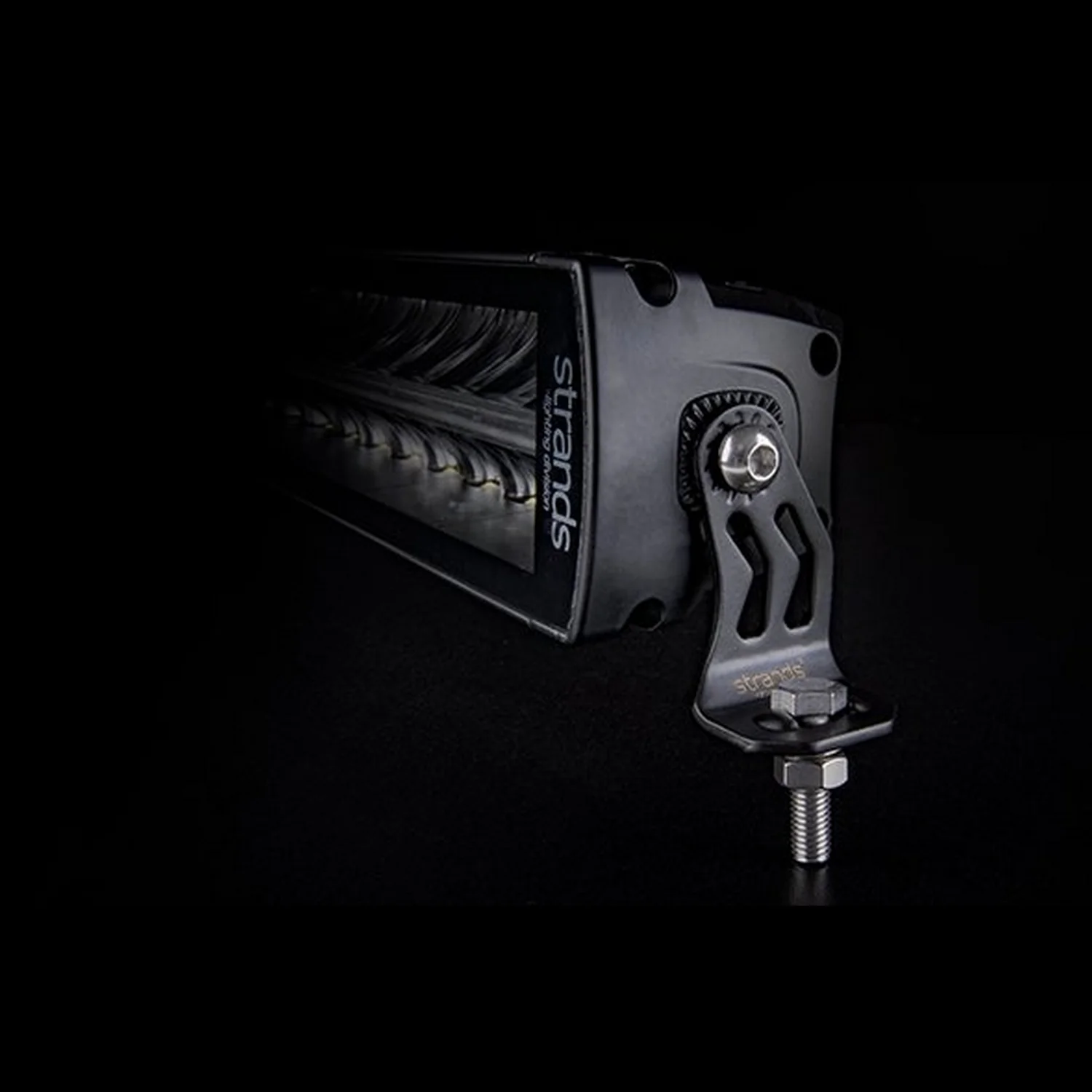

| MATERIAL BRACKET | Stainless steel side brackets and aluminum bottom bracket | Stainless steel side brackets and aluminum bottom bracket |
| MATERIAL HOUSING | Aluminium | Aluminium |
| MATERIAL LENS | Polycarbonate | Polycarbonate |
| LENGTH (mm) | 205 | 562 |
| DEPTH (mm) | 71,6 | 71,6 |
| HEIGHT (mm) | 76 | 76 |
| HEIGHT INCLUDING BRACKET (mm) | 89 | 89 |
| OPERATING TEMPERATURE | -30°C - +65°C | -30°C - +65°C |
| ADR-APPROVED | No | No |
| E-APPROVED | Yes | Yes |
| ACCORDING TO REGULATION | ECE R148, R149 | ECE R148, R149 |
| REFERENCE NUMBER | 25 | 25 |
| EMC | ECE R10 | ECE R10 |
Manual
