Siberia XP Double Row Curved (22"-50")
Description
Welcome the new Siberia XP Double Row Curved LED bar. These models have an extended beam pattern with an E-mode and high powered Xperience mode. This means a much higher output than previous LED bars. The greater visual range creates high forward visibility, and the 5700-kelvin color temperature ensures impeccable illumination. It is incredibly sturdy and long-lived and can withstand vibrations, rough roads, and hard use. It has an IP rating of IP68/IP69K, which ensures high protection against dirt and water. Siberia XP DRC is covered by Strands Lighting Divisions’ 3-year function warranty and is EMC-approved according to ECE R10. The Siberia XP is easy to install thanks to the 2500 mm cable and integrated relay.
The XP Double Row Curved LED Bars also feature a new yellow and white position light and Hello function. To operate the Hello function: simply flash the light twice in quick succession, and the position lights will activate a dynamic signal. See video here.
Rear hanging bracket mounts are included with the lamp, pairs of side (end) brackets are available separately (Part No. 270361).

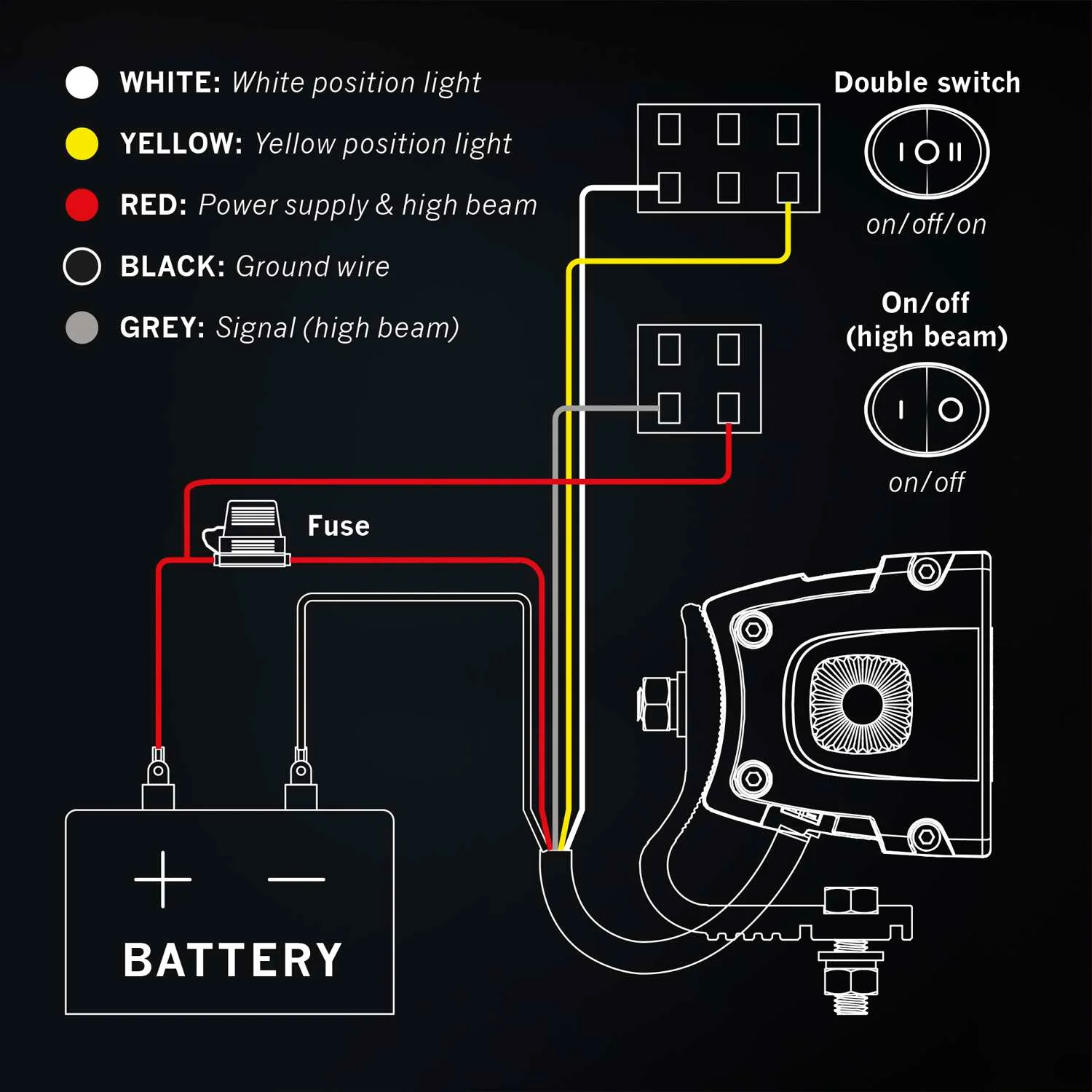

These lights are sold individually and do not require a relay harness due to the integral relay in the lamp itself. Please check the manual for wiring instruction.
Click here for full details of the new Pure Passion XP Series
Specifications
| PART NUMBER | 809431 | 809432 | 809433 | 809434 |
| VOLTAGE | 10-32V DC | 10-32V DC | 10-32V DC | 10-32V DC |
| CONSUMPTION, XPERIENCE-MODE | 184W | 242W | 334W | 404W |
| CONSUMPTION, E-MODE | 45W | 55W | 65W | 75W |
| ACTUAL LUMEN, XPERIENCE-MODE | 13030 lm | 18590 lm | 24800 lm | 28100 lm |
| ACTUAL LUMEN, E-MODE | 3100 lm | 3500 lm | 3450 lm | 3425 lm |

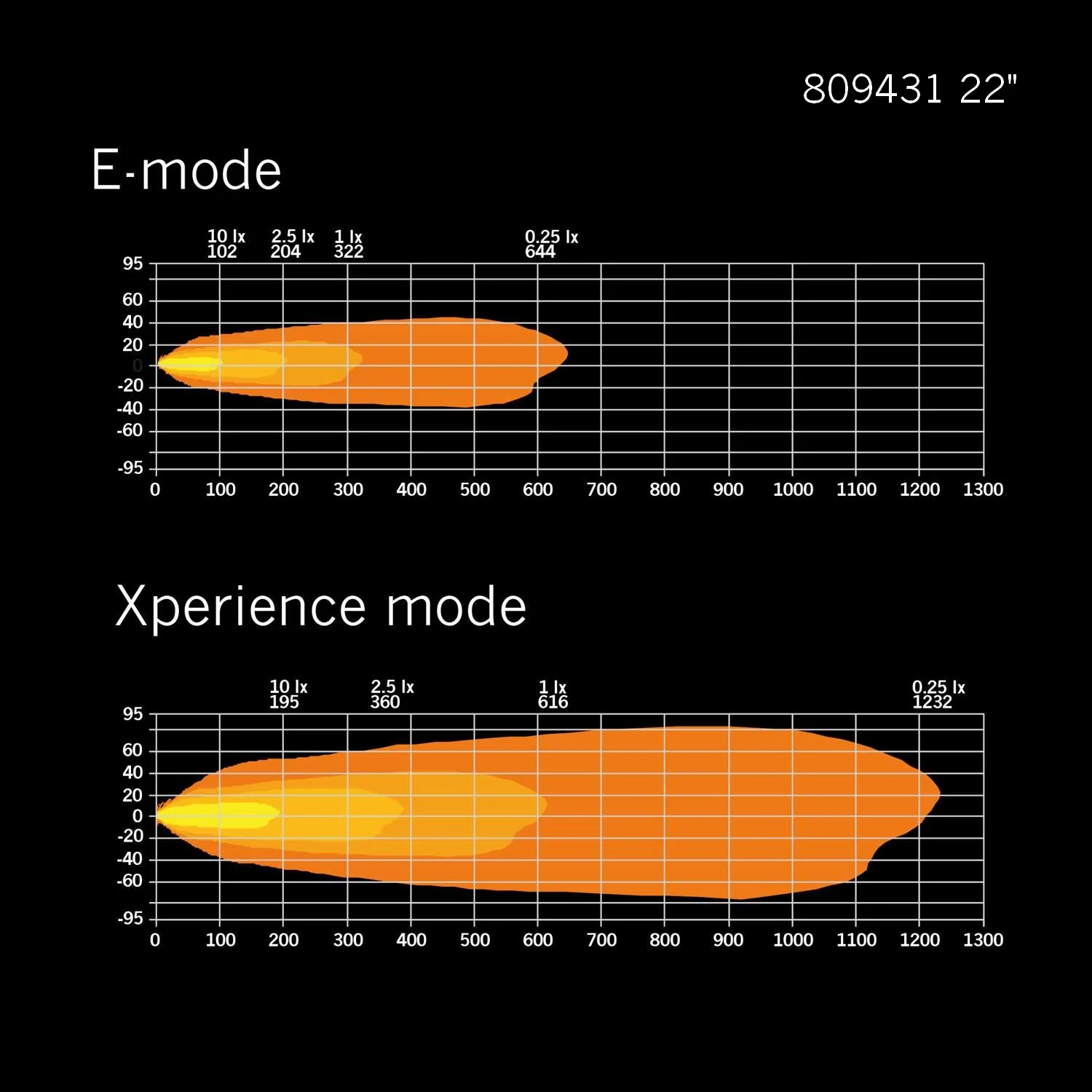

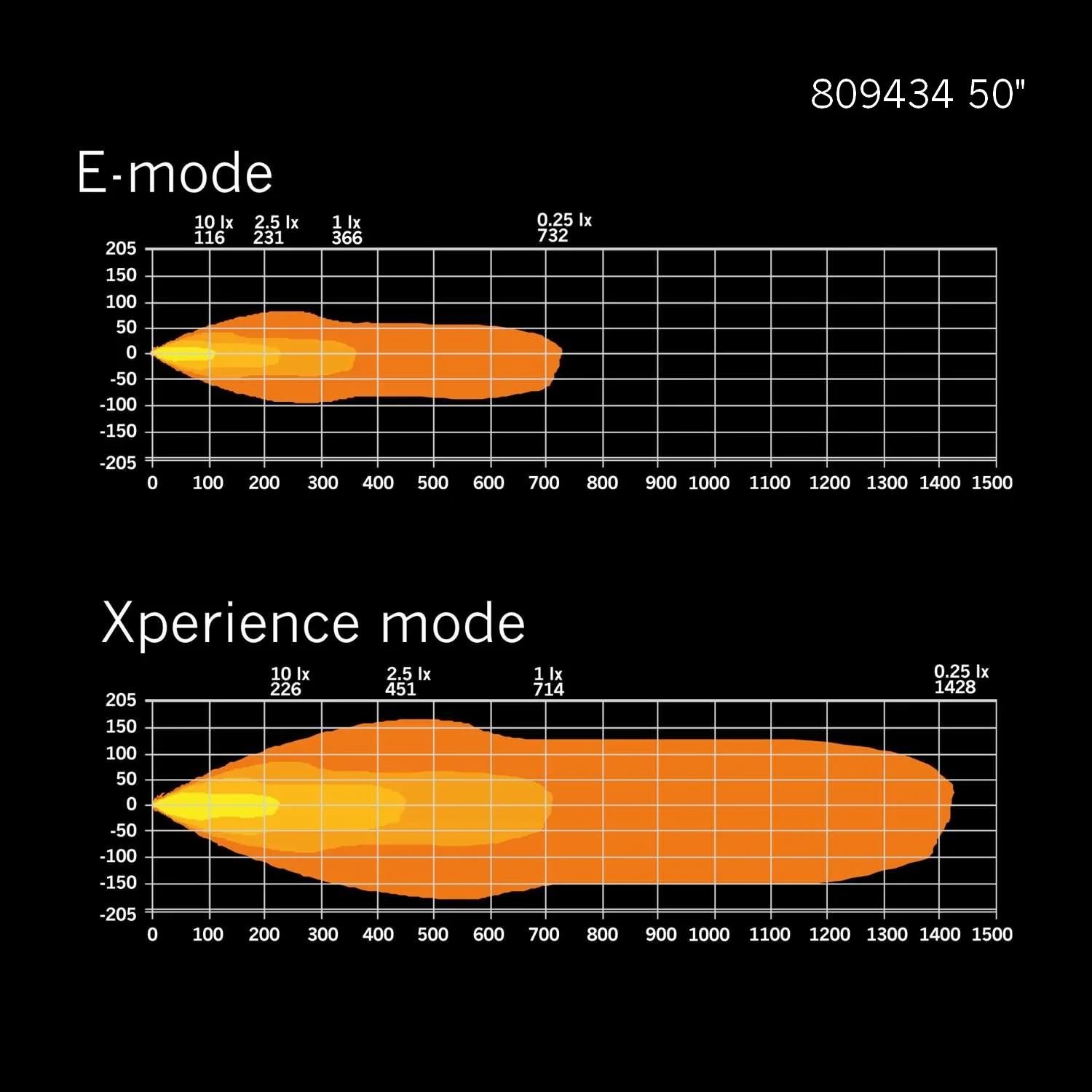

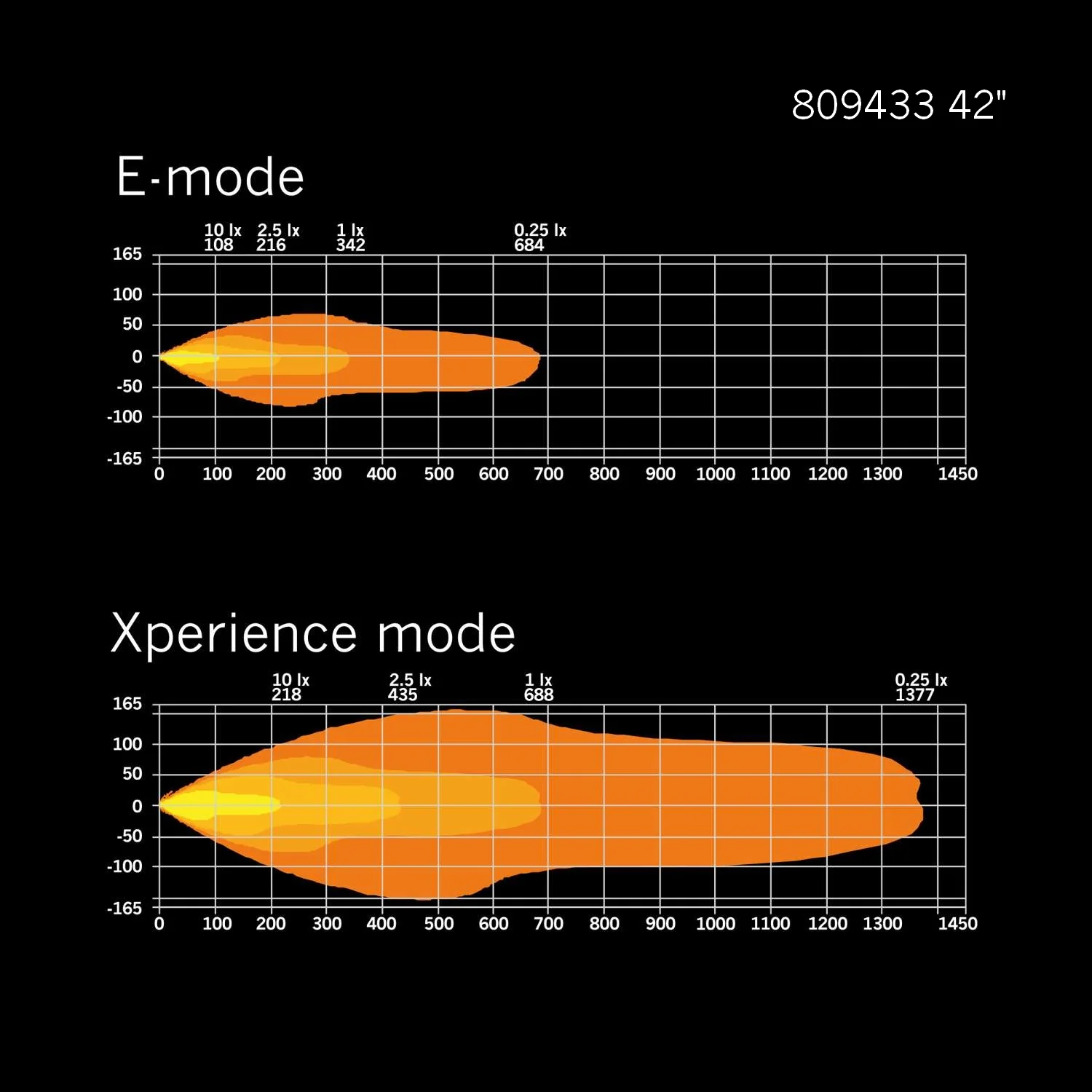

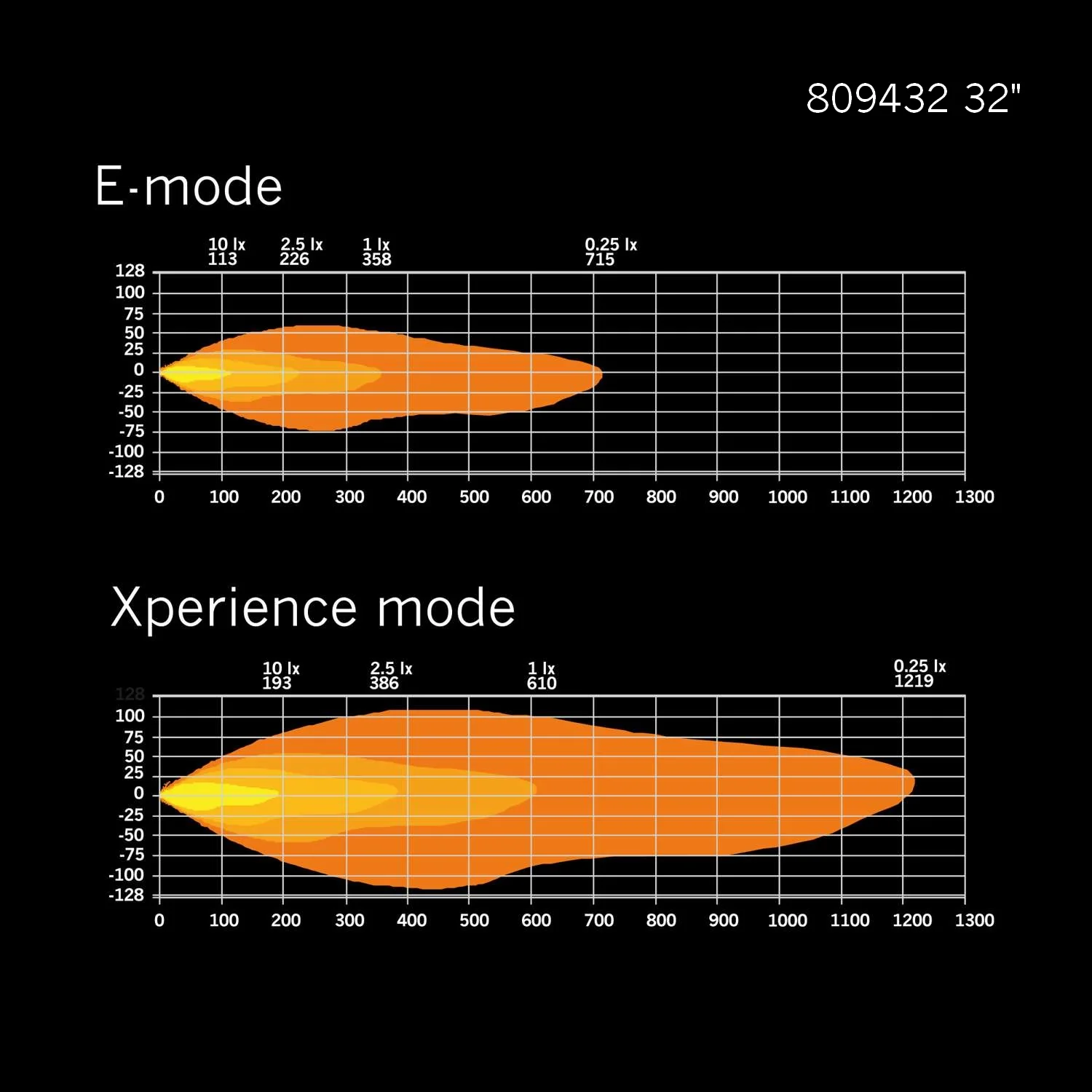

| 1 LUX @, XPERIENCE-MODE | 616 m | 610 m | 688 m | 714 m |
| 1 LUX @, E-MODE | 322 m | 358 m | 342 m | 366 m |
| COLOR TEMPERATURE | 5700K | 5700K | 5700K | 5700K |
| BEAM PATTERN | Extended beam | Extended beam | Extended beam | Extended beam |
| IP-CLASS | IP68/IP69K | IP68/IP69K | IP68/IP69K | IP68/IP69K |
| COLOR LENS | Clear | Clear | Clear | Clear |
| HELLO FUNCTION | Yes | Yes | Yes | Yes |
| POSITION LIGHT | White & Yellow | White & Yellow | White & Yellow | White & Yellow |
| CONNECTION | Cable | Cable | Cable | Cable |
| CABLE LENGTH | 2500 mm | 2500 mm | 2500 mm | 2500 mm |
| MATERIAL HOUSING | Aluminium | Aluminium | Aluminium | Aluminium |
| MATERIAL LENS | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate |

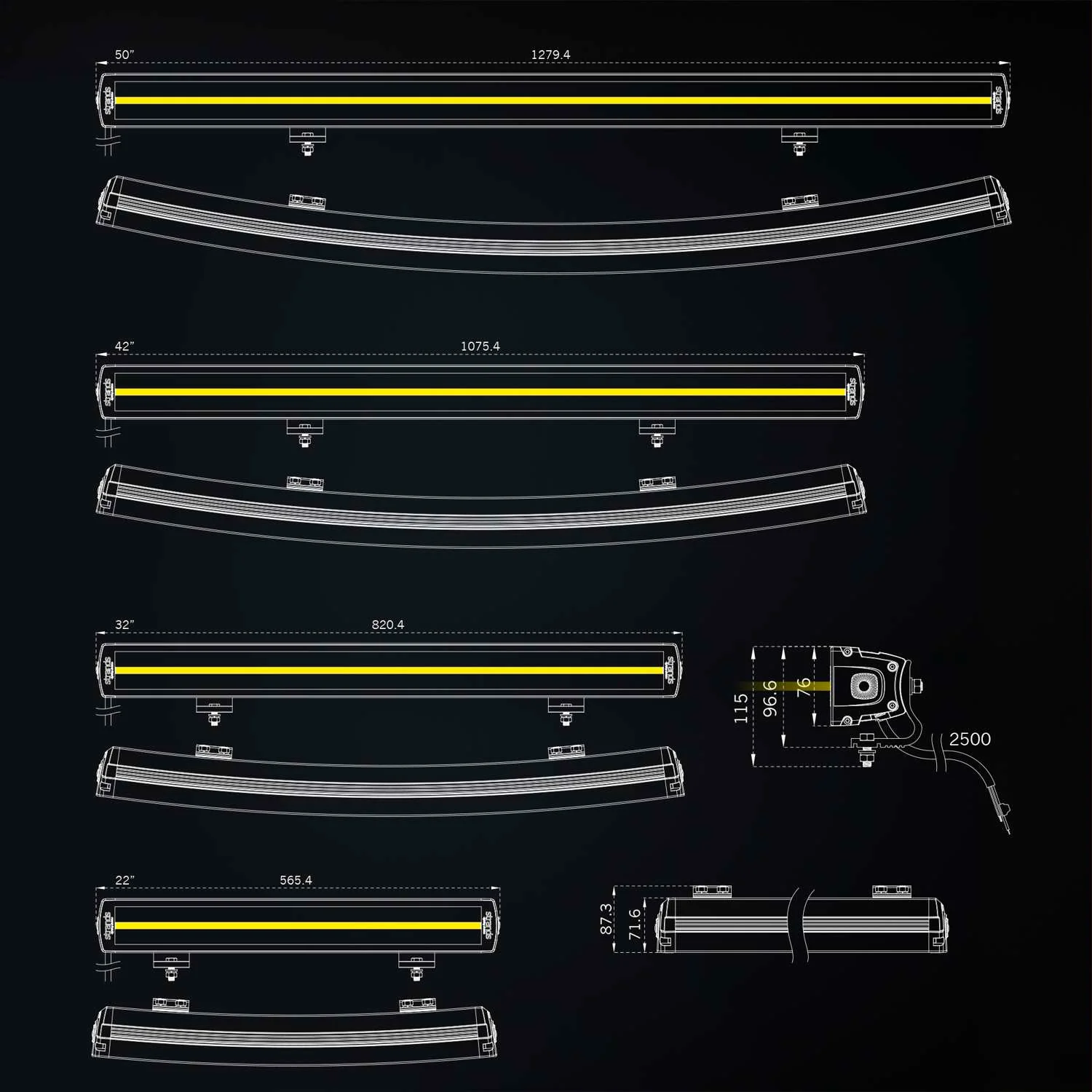

| LENGTH | 566.8 mm | 823.5 mm | 1078.7 mm | 1281.2 mm |
| DEPTH | 83.4 mm | 97.8 mm | 117.8 mm | 137.7 mm |
| HEIGHT | 76 mm | 76 mm | 76 mm | 76 mm |
| HEIGHT INCLUDING BRACKET | 96.6 mm | 96.6 mm | 96.6 mm | 96.6 mm |
| OPERATING TEMPERATURE | -35°C - +65°C | -35°C - +65°C | -35°C - +65°C | -35°C - +65°C |
| E-APPROVED | No | No | No | No |
| EMC-CERTIFICATE | ECE R10 | ECE R10 | ECE R10 | ECE R10 |
