Siberia XP Single Row (12"-50")
Description
Welcome the new Siberia XP Single Row LED bar. These models have an extended beam pattern with an E-mode and high powered Xperience mode. This means a much higher output than previous LED bars. The greater visual range creates high forward visibility, and the 5700-kelvin color temperature ensures impeccable illumination. It is incredibly sturdy and long-lived and can withstand vibrations, rough roads, and hard use. It has an IP rating of IP68/IP69K, which ensures high protection against dirt and water. Siberia XP SR is covered by Strands Lighting Divisions’ 3-year function warranty and is EMC-approved according to ECE R10. The Siberia XP is easy to install thanks to the 2500 mm cable and integrated relay.

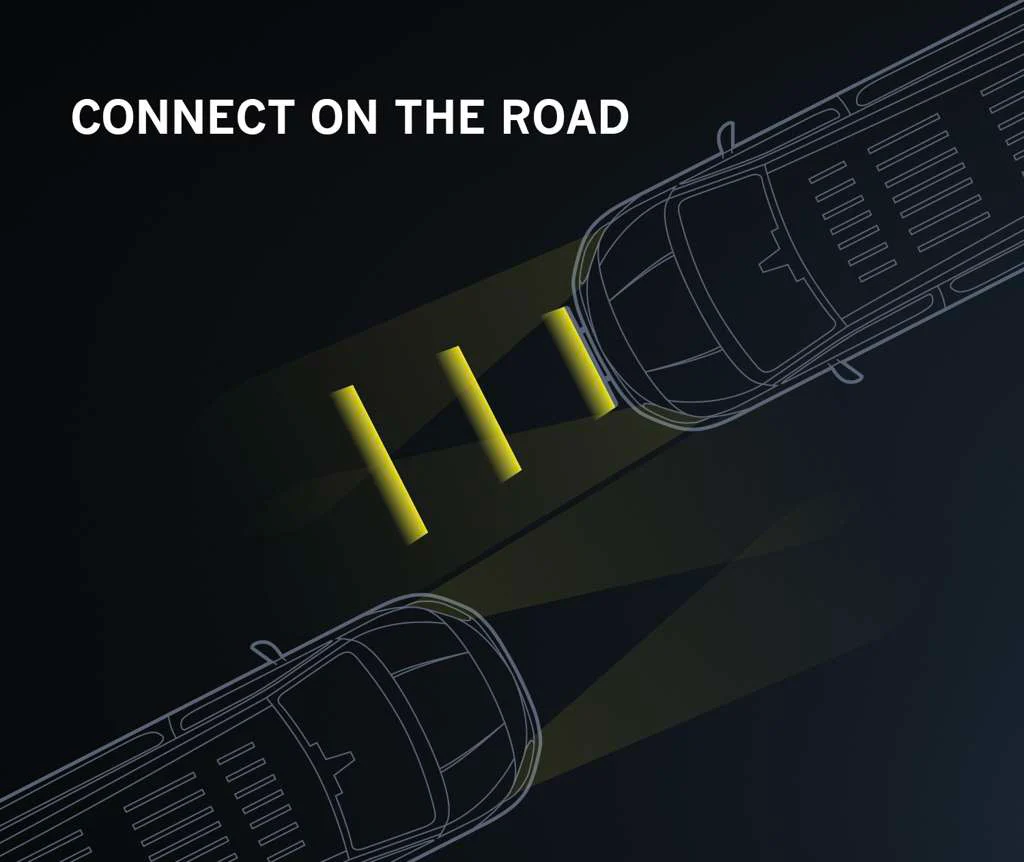

The Hello function is incorporated in the 22", 32", 42" and 50" bars. To operate the Hello function: simply flash the light twice in quick succession, and the position lights will activate a dynamic signal. See video here.

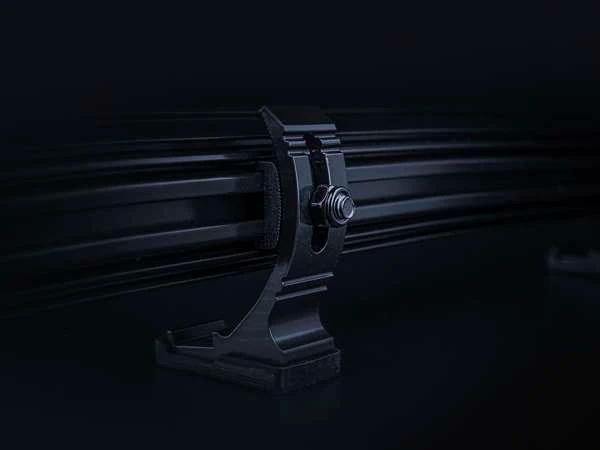

Rear hanging bracket mounts are included with the lamp, pairs of side (end) brackets are available separately (Part No. 270362).

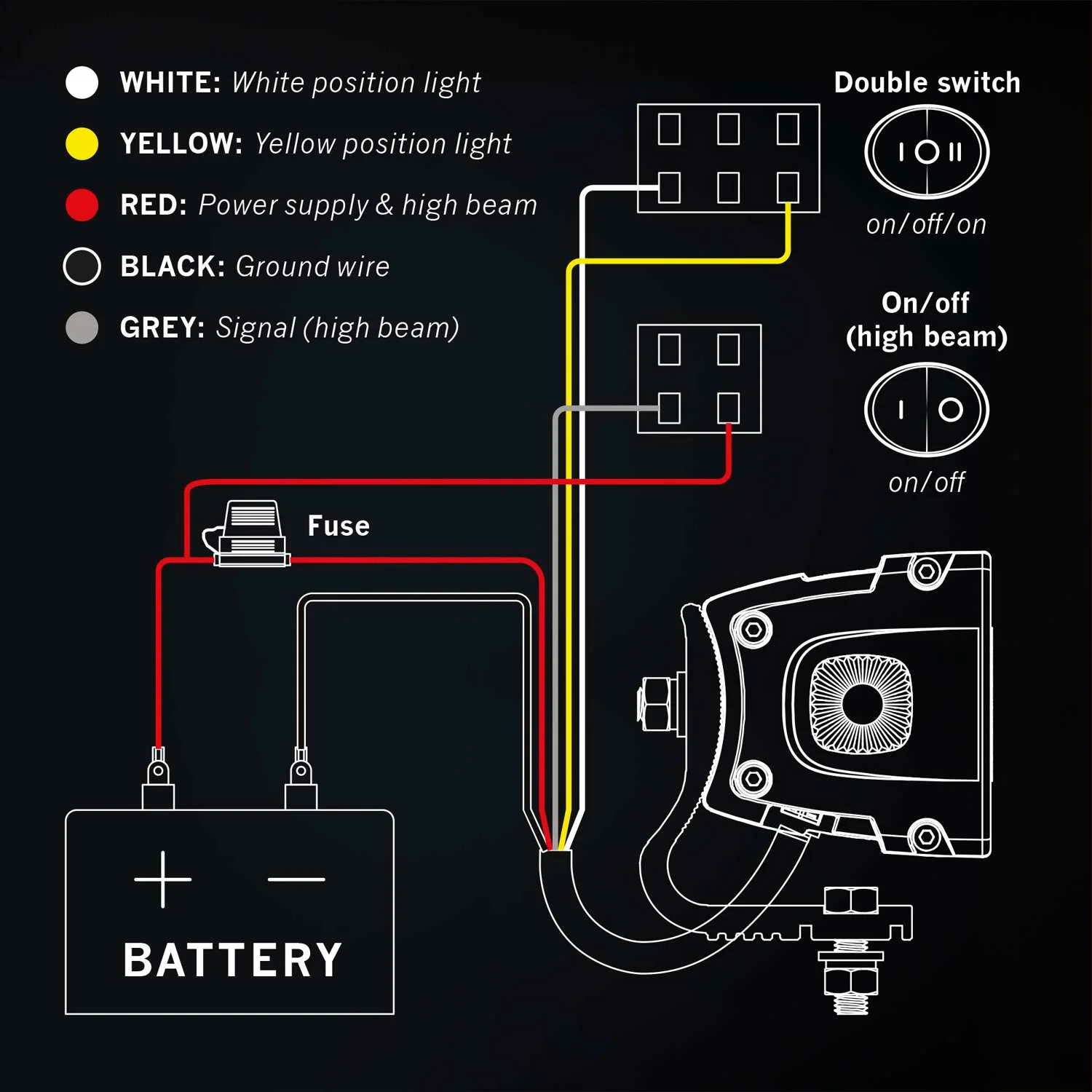

These lights are sold individually and do not require a relay harness due to the integral relay in the lamp itself. Please check the manual for wiring instruction.
Click here for full details of the new Pure Passion XP Series
Specifications
| SIBERIA XP SINGLE ROW | 12 Inch | 22 Inch | 32 Inch | 42 Inch | 50 Inch |
| PART NUMBER | 809411 | 809412 | 809413 | 809414 | 809415 |
| VOLTAGE | 10-32V DC | 10-32V DC | 10-32V DC | 10-32V DC | 10-32V DC |
| CONSUMPTION, XPERIENCE-MODE | 50W | 102W | 166W | 239W | 240W |
| CONSUMPTION, E-MODE | 25W | 25W | 30W | 25W | 30W |
| CONSUMPTION, POSITION LIGHTS | Wht:5.1W, Yell:5.1W | Wht:9.2W, Yell:9.2W | Wht:14.5W, Yell:14.5W | Wht:19.1W, Yell:19.1W | Wht:22.9W, Yell:22.9W |
| ACTUAL LUMEN, XPERIENCE-MODE | 3620 lm | 7150 lm | 10950 lm | 14760 lm | 16500 lm |
| ACTUAL LUMEN, E-MODE | 1725 lm | 1875 lm | 1750 lm | 1500 lm | 1475 lm |
| 1 LUX @, XPERIENCE-MODE | 454 m | 602 m | 734 m | 858 m | 878 m |
| 1 LUX @, E-MODE | 300 m | 300 m | 300 m | 300 m | 300 m |
| COLOR TEMPERATURE | 5700K | 5700K | 5700K | 5700K | 5700K |
| BEAM PATTERN | Optimized beam | Extended beam | Long Distance | Long Distance | Long Distance |
| IP-CLASS | IP68/IP69K | IP68/IP69K | IP68/IP69K | IP68/IP69K | IP68/IP69K |
| COLOR LENS | Clear | Clear | Clear | Clear | Clear |
| HELLO FUNCTION | Yes | Yes | Yes | Yes | Yes |
| POSITION LIGHT | White & Yellow | White & Yellow | White & Yellow | White & Yellow | White & Yellow |
| CONNECTION | DT-4 Pin | Cable | Cable | Cable | Cable |
| CABLE LENGTH | 200mm | 2500 mm | 2500 mm | 2500 mm | 2500 mm |
| MATERIAL HOUSING | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| MATERIAL LENS | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate |

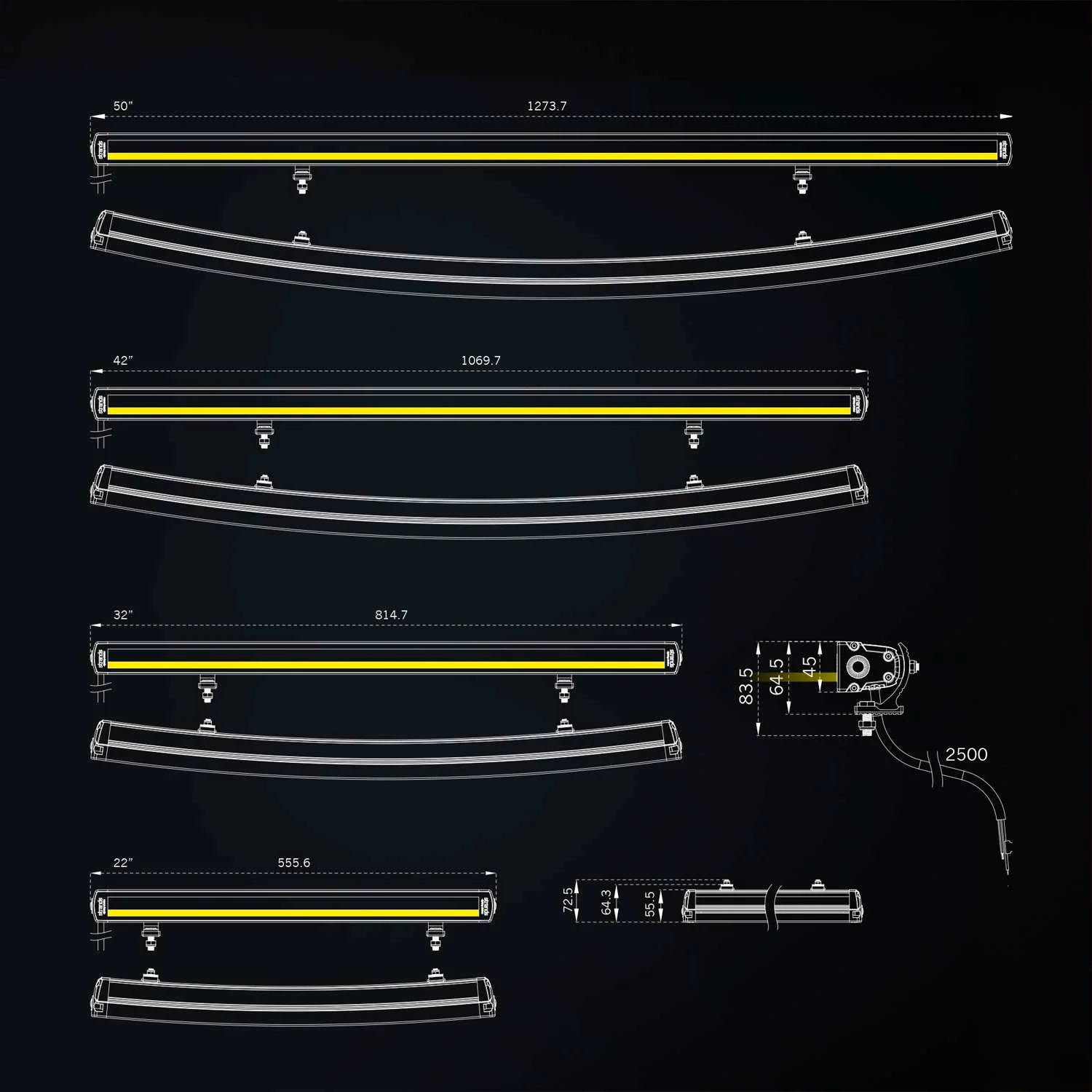

| LENGTH | 304.7 mm | 555.6 mm | 814.7 mm | 1069.7 mm | 1273.7 mm |
| DEPTH | 55.5 mm | 55.5 mm | 55.5 mm | 55.5 mm | 55.5 mm |
| HEIGHT | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| HEIGHT INCLUDING BRACKET | 64.5 mm | 64.5 mm | 64.5 mm | 64.5 mm | 64.5 mm |
| OPERATING TEMPERATURE | -30°C - +65°C | -30°C - +65°C | -30°C - +65°C | -30°C - +65°C | -30°C - +65°C |
| E-APPROVED | Yes | Yes | Yes | Yes | Yes |
| ACCORDING TO ECE REGULATION | R148(R7),R149(R112) | R148(R7),R149(R112) | R148(R7),R149(R112) | R148(R7),R149(R112) | R148(R7),R149(R112) |
| EMC-CERTIFICATE | ECE R10 | ECE R10 | ECE R10 | ECE R10 | ECE R10 |
